HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Front Body Components Parts Diagram

4x4 Utility Vehicle

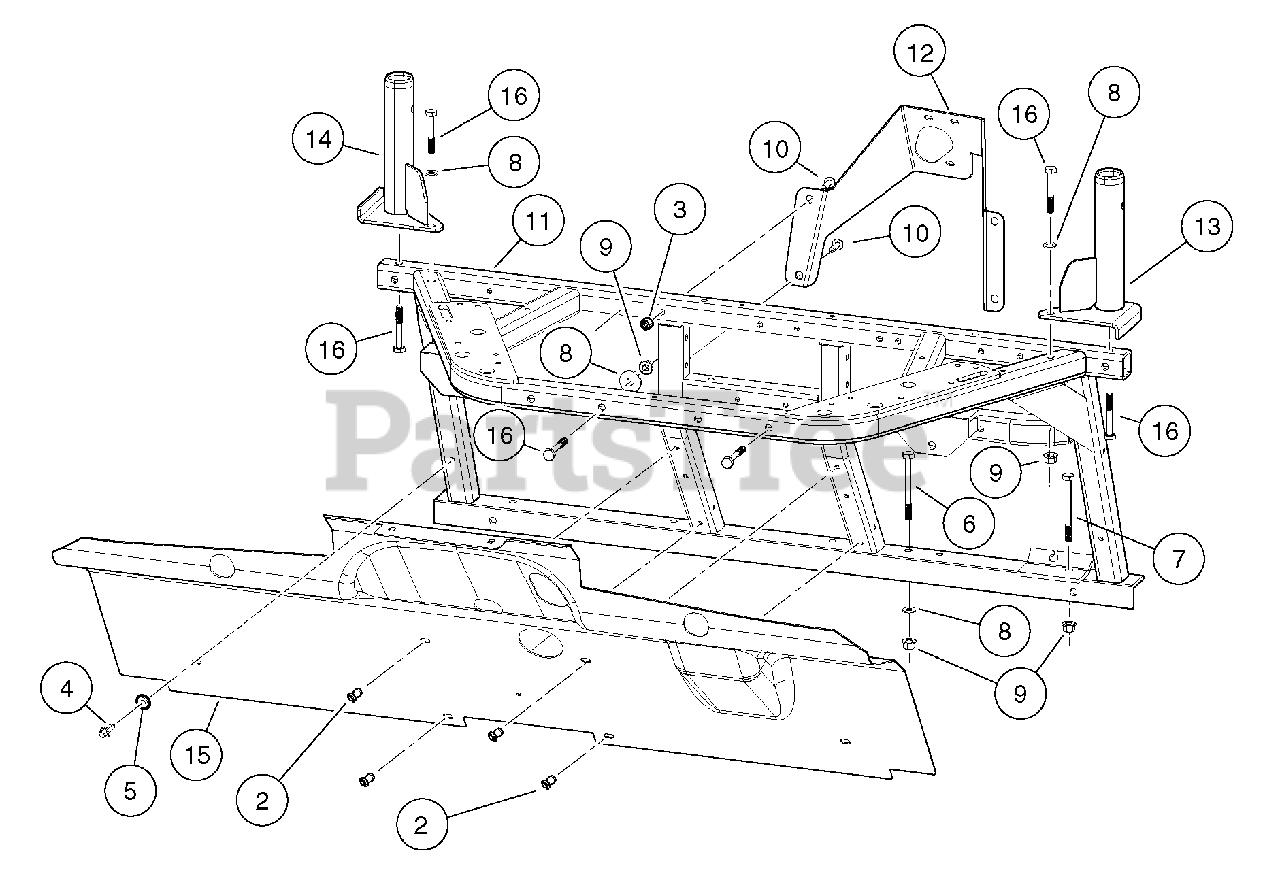

Front Body Components Parts Diagram

  • Title

1

Husqvarna N/A

Instl, Cowl Weldmnt/Splash Guard

Note: (includes items 2 through 16)

$

$

Not available

2

Husqvarna 1016967

Blind Rivet, Push Type

$

$

Currently unavailable

3

Husqvarna 102298401

Nut,m8,all Metal Lock

$

$

Currently unavailable

4

Husqvarna 102298720

M8-1.25x20 Taptite

$

$

Currently unavailable

5

Husqvarna 102323501

Washer, Flat, 3/8, Blk Fin

$

$

Currently unavailable

6

Husqvarna 102491301

Bolt, M10x1.50x100 (Black)

$

$

Currently unavailable

7

Husqvarna 102491302

Bolt, M10 X 1.50 X 110 Black

$

$

Currently unavailable

8

Husqvarna 102491501

Washer Hard,m10

$

$

Currently unavailable

9

Husqvarna 102617201

Nut Flg M10 X 1.5 Mech Def

$

$

Currently unavailable

10

Husqvarna 102618301

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Currently unavailable

11

Husqvarna 102935501

Weldment, Dash, Front

$

$

Currently unavailable

12

Husqvarna 102977201

Bracket, Column, Steering

$

$

Currently unavailable

13

Husqvarna 102983201

Weldment, Front, Base, ROPS, Right-Hand

$

$

Currently unavailable

14

Husqvarna 102983601

Weldment, Front, Base, ROPS, Left-Hand

$

$

Currently unavailable

15

Husqvarna 103296001

Guard, Splash, Gas Injection

$

$

Currently unavailable

16

Husqvarna 96715552

Bolt, M10 X 1.50 X 65

$

$

Currently unavailable
