HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Forward/Reverse Shifter Assembly Parts Diagram

4x4 Utility Vehicle

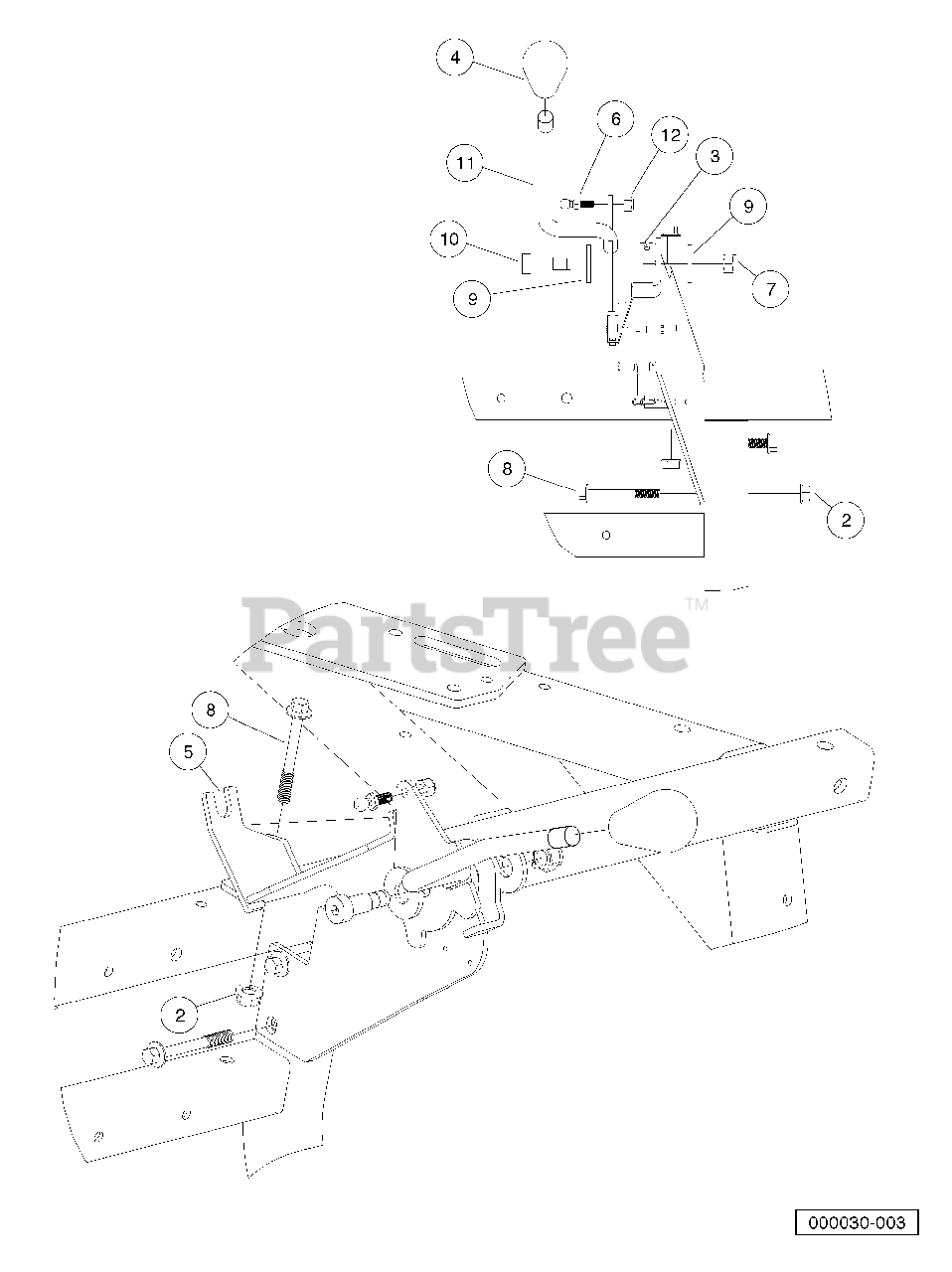

Forward/Reverse Shifter Assembly Parts Diagram

  • Title

1

Husqvarna 103357501

Instl, Fnr, Shifter, Dom

Note: (includes items 2 through 13)

$

$

Currently unavailable

2

Husqvarna 102298401

Nut,m8,all Metal Lock

$

$

Currently unavailable

3

Husqvarna 102375901

Bushing, Fnr

$

$

Currently unavailable

4

Husqvarna 102376001

Knob, Fnr

$

$

Currently unavailable

5

Husqvarna N/A

Weldment, FNR Shifter Bracket

$

$

Not available

6

Husqvarna 102615701

Stud, Ball, .346 Dia

$

$

Currently unavailable

7

Husqvarna 102616701

Locknut, M10x1.5 Nylon Insert

$

$

Currently unavailable

8

Husqvarna 102618301

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Currently unavailable

9

Husqvarna 102684501

Washer, M12 Hard Regular

$

$

Currently unavailable

10

Husqvarna 102684601

Shoulder Bolt,m12 X 20 M10 Thd

$

$

Currently unavailable

11

Husqvarna 103187501

Weldment, FNR Shifter

$

$

Currently unavailable

12

Husqvarna 8717

Locknut, 1/4-28 Nylon Insert

$

$

Currently unavailable

13

Husqvarna 8990

Tie Wrap, 8" Nylon

$

$

Currently unavailable
