HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Fascia and Fenders - XRT Vehicles Parts Diagram

4x4 Utility Vehicle

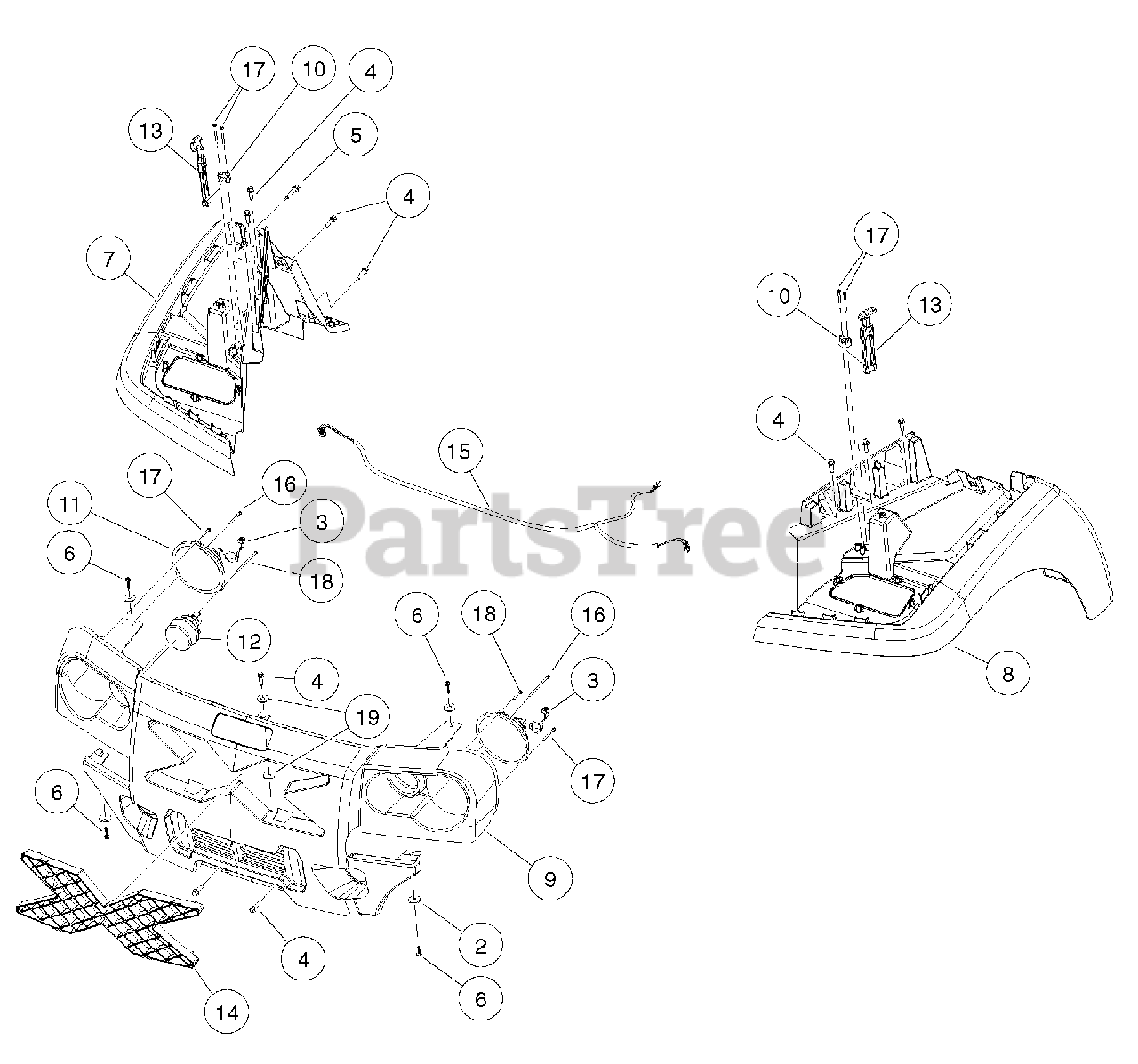

Fascia and Fenders - XRT Vehicles Parts Diagram

  • Title
1

Husqvarna N/A

Instl, Fascia, Fenders, XRT

Note: (includes items 2 through 19

$

$

Not available

2

Husqvarna 1011578

Washer, 5/16 Type B Flat

$

$

Currently unavailable

3

Husqvarna 101987901

Connector Harness Assembly, Headlight

$

$

Currently unavailable

4

Husqvarna 102289001

Screw, M8X1.25X30, Hex

$

$

Currently unavailable

5

Husqvarna 102292356

Screw-1/4-20x56 Hwh Self Drill

$

$

Currently unavailable

6

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

7

Husqvarna 102866901

Fender, Front, Pass, AWD

$

$

Currently unavailable

8

Husqvarna 102867001

Fender, Front, Drv, AWD

$

$

Currently unavailable

9

Husqvarna 102867401

Fascia, Front, XRT, AWD

$

$

Currently unavailable

10

Husqvarna 102882401

Bracket, Latch, Draw

$

$

Currently unavailable

11

Husqvarna 102894401

Headlight, 6 In Round

$

$

Currently unavailable

12

Husqvarna 102894501

Light, Turn Signal, 3 In Round

$

$

Currently unavailable

13

Husqvarna 102895101

Latch, Draw, Hood

$

$

Currently unavailable

14

Husqvarna 102979301

Grill, XRT

$

$

Currently unavailable

15

Husqvarna 103213301

Harness, XRT/CA Restyle HDL

$

$

Currently unavailable

16

Husqvarna 103218104

Screw, #8x1.25 Ab Thd, Hex Hd

$

$

Currently unavailable

17

Husqvarna 103218107

Screw, #8x2.00 AB Thd, Hex Hd

$

$

Currently unavailable

18

Husqvarna 103218113

Screw, #8x3.50 Ab Thd, Hex Hd

$

$

Currently unavailable

19

Husqvarna 808

Washer, 3/8 Type B Flat

$

$

Currently unavailable
