HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Electric Bed Lift Parts Diagram

4x4 Utility Vehicle

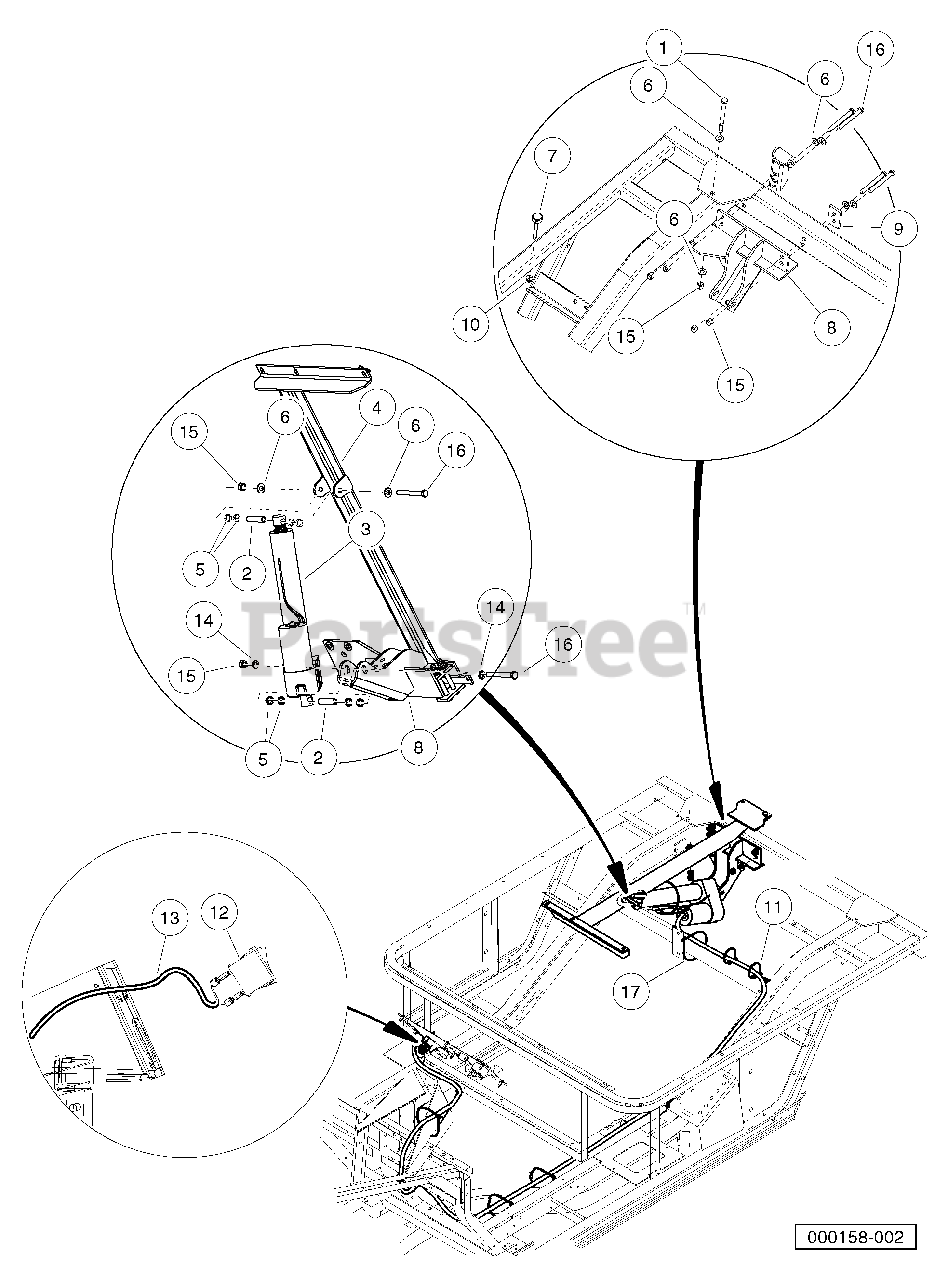

Electric Bed Lift Parts Diagram

  • Title

1

Husqvarna 1010200

Bolt, 3/8-16 X 4.25 Hex Head

$

$

Currently unavailable

2

Husqvarna 1016603

Bushing Long

$

$

Currently unavailable

3

Husqvarna 1017162

Actuator Assembly, Electric

$

$

Currently unavailable

4

Husqvarna 1017167

Actuator Adapter

$

$

Currently unavailable

5

Husqvarna 1017774

Body Spacer

$

$

Currently unavailable

6

Husqvarna 102066001

Washer, 3/8 Type B Hard Flat

$

$

Currently unavailable

7

Husqvarna 102426601

Bumper, Bed, Mtg, Front

$

$

Currently unavailable

8

Husqvarna 102465701

Weldment, Bracket, Actuator

$

$

Currently unavailable

9

Husqvarna 102614101

Plate, Back

$

$

Currently unavailable

10

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

11

Husqvarna 102629001

Tie Wrap, 8.00" With Mount

$

$

Currently unavailable

12

Husqvarna 103227002

Harness, Stretch AWD Bedlift

$

$

Currently unavailable

13

Husqvarna 357

Washer, Lock, Hel Sp 3/8 Reg

$

$

Currently unavailable

14

Husqvarna 8754

Locknut, 3/8-16 Hex

$

$

Currently unavailable

15

Husqvarna 8755

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Currently unavailable

16

Husqvarna 8990

Tie Wrap, 8" Nylon

$

$

Currently unavailable
