HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Crankcase Parts Diagram

4x4 Utility Vehicle

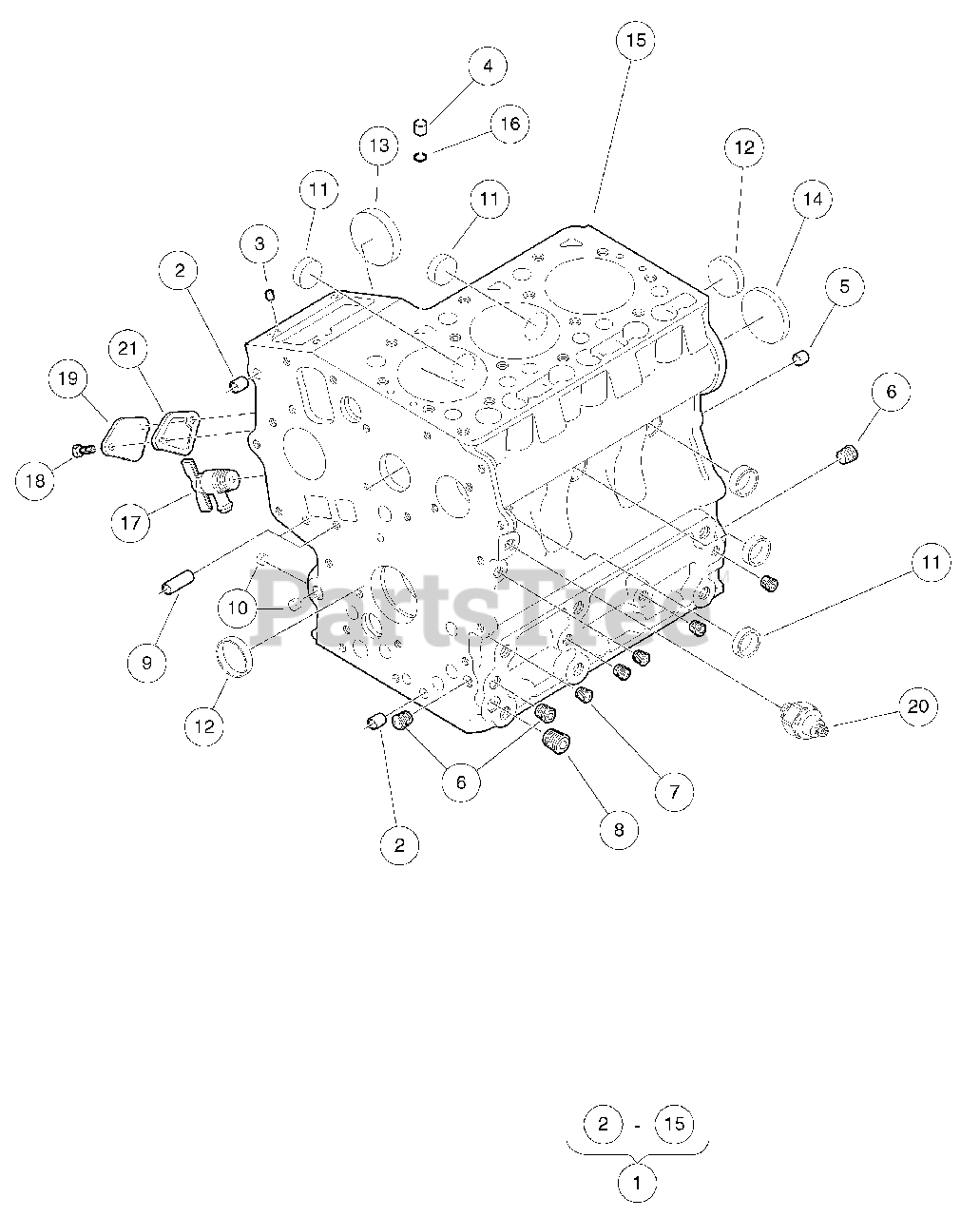

Crankcase Parts Diagram

  • Title

1

Husqvarna 102600001

Engine Block

Note: (includes items 2 through 15)

$

$

Currently unavailable

2

Husqvarna 102600101

Pin, Pipe, Dia 8 X 14

$

$

Currently unavailable

3

Husqvarna 102600201

Pin, Straight, Dia 5 X 10

$

$

Currently unavailable

4

Husqvarna 102600401

Pin, Pipe, Dia 7 X 14

$

$

Currently unavailable

5

Husqvarna 102600601

Pin, Straight, Dia 8 X 16

$

$

Currently unavailable

6

Husqvarna 102600701

Plug, 1/8"

$

$

Currently unavailable

7

Husqvarna 102600801

Plug, 3/32"

$

$

Currently unavailable

8

Husqvarna 102601001

Plug, 1/4"

$

$

Currently unavailable

9

Husqvarna 102601301

Pin, Pipe, Dia 8 X 11

$

$

Currently unavailable

10

Husqvarna 102726201

Cap, Sealing, Small

$

$

Currently unavailable

11

Husqvarna 102726301

Cap, Sealing, Med

$

$

Currently unavailable

12

Husqvarna 102726401

Cap, Sealing, Large

$

$

Currently unavailable

13

Husqvarna 102726501

Cover, Fuel Camshaft

$

$

Currently unavailable

14

Husqvarna 102726601

Plug, Expansion

$

$

Currently unavailable

15

Husqvarna N/A

Block, Engine

$

$

Not available

16

Husqvarna 102600301

O Ring, 8 X 7

$

$

Currently unavailable

17

Husqvarna 102601401

Cock, Drain

$

$

Currently unavailable

18

Husqvarna 102631601

Bolt, M6 X 1 X 20

$

$

Currently unavailable

19

Husqvarna 102700801

Plate, Engine Block

$

$

Currently unavailable

20

Husqvarna 102730801

Switch, Oil Pressure

$

$

Currently unavailable

21

Husqvarna 102732601

Gasket, Fuel Pump, D722

$

$

Currently unavailable
