HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Cowl Assemblies - Carryall Vehicles Parts Diagram

4x4 Utility Vehicle

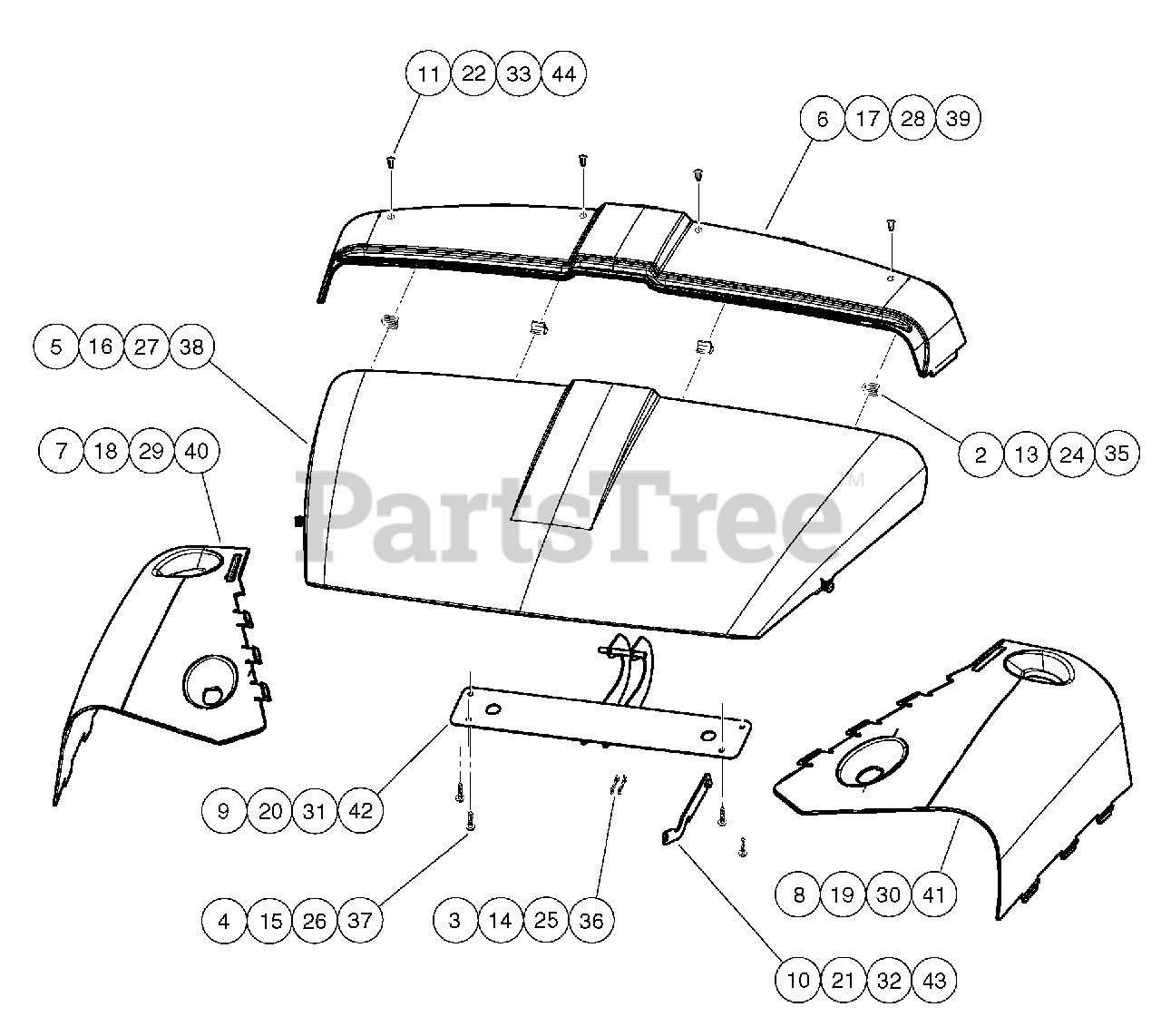

Cowl Assemblies - Carryall Vehicles Parts Diagram

  • Title

1

Husqvarna N/A

Option, Color, CA, Dark Grn

Note: (includes items 2 through 11)

$

$

Not available

2

Husqvarna 102292701

Clip-body-trim

$

$

Currently unavailable

3

Husqvarna 102292801

Pin, Bow Tie Locking - .072

$

$

Currently unavailable

4

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

5

Husqvarna 102866510

Hood, Dark Green

$

$

Currently unavailable

6

Husqvarna 102866610

Panel, Cowl, Center, Dark Green

$

$

Currently unavailable

7

Husqvarna 102866710

Panel, Cowl, Passenger-Side, Dark Green

$

$

Currently unavailable

8

Husqvarna 102866810

Panel, Cowl, Driver-Side, Dark Green

$

$

Currently unavailable

9

Husqvarna 102896401

Weldment, Hinge, Hood

$

$

Currently unavailable

10

Husqvarna 102896501

Prop, Hood

$

$

Currently unavailable

11

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable

12

Husqvarna N/A

Option, Color, CA, Dark Gray

Note: (includes items 13 through 22)

$

$

Not available

13

Husqvarna 102292701

Clip-body-trim

$

$

Currently unavailable

14

Husqvarna 102292801

Pin, Bow Tie Locking - .072

$

$

Currently unavailable

15

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

16

Husqvarna 102866514

Hood, Dark Gray

$

$

Currently unavailable

17

Husqvarna 102866614

Panel, Cowl, Center, Dark Gray

$

$

Currently unavailable

18

Husqvarna 102866714

Panel, Cowl, Passenger-Side, Dark Gray

$

$

Currently unavailable

19

Husqvarna 102866814

Panel, Cowl, Driver-Side, Gray

$

$

Currently unavailable

20

Husqvarna 102896401

Weldment, Hinge, Hood

$

$

Currently unavailable

21

Husqvarna 102896501

Prop, Hood

$

$

Currently unavailable

22

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable

23

Husqvarna N/A

Option, Color, CA, Real Tree Camo

Note: (includes items 24 through 33)

$

$

Not available

24

Husqvarna 102292701

Clip-body-trim

$

$

Currently unavailable

25

Husqvarna 102292801

Pin, Bow Tie Locking - .072

$

$

Currently unavailable

26

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

27

Husqvarna 102866518

Hood, Real Tree Camo

$

$

Currently unavailable

28

Husqvarna 102866618

Panel, Cowl, Center, Real Tree Camo

$

$

Currently unavailable

29

Husqvarna 102866718

Panel, Cowl, Passenger-Side, Real Tree Camo

$

$

Currently unavailable

30

Husqvarna 102866818

Panel, Cowl, Driver-Side, Real Tree Camo

$

$

Currently unavailable

31

Husqvarna 102896401

Weldment, Hinge, Hood

$

$

Currently unavailable

32

Husqvarna 102896501

Prop, Hood

$

$

Currently unavailable

33

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable

34

Husqvarna N/A

Option, Color, CA, Dlx Real Tree Camo

Note: (includes items 35)

$

$

Not available

35

Husqvarna 102292701

Clip-body-trim

$

$

Currently unavailable

36

Husqvarna 102292801

Pin, Bow Tie Locking - .072

$

$

Currently unavailable

37

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

38

Husqvarna 102866518

Hood, Real Tree Camo

$

$

Currently unavailable

39

Husqvarna 102866618

Panel, Cowl, Center, Real Tree Camo

$

$

Currently unavailable

40

Husqvarna 102866718

Panel, Cowl, Passenger-Side, Real Tree Camo

$

$

Currently unavailable

41

Husqvarna 102866818

Panel, Cowl, Driver-Side, Real Tree Camo

$

$

Currently unavailable

42

Husqvarna 102896401

Weldment, Hinge, Hood

$

$

Currently unavailable

43

Husqvarna 102896501

Prop, Hood

$

$

Currently unavailable

44

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable
