HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Box Bed Parts Diagram

4x4 Utility Vehicle

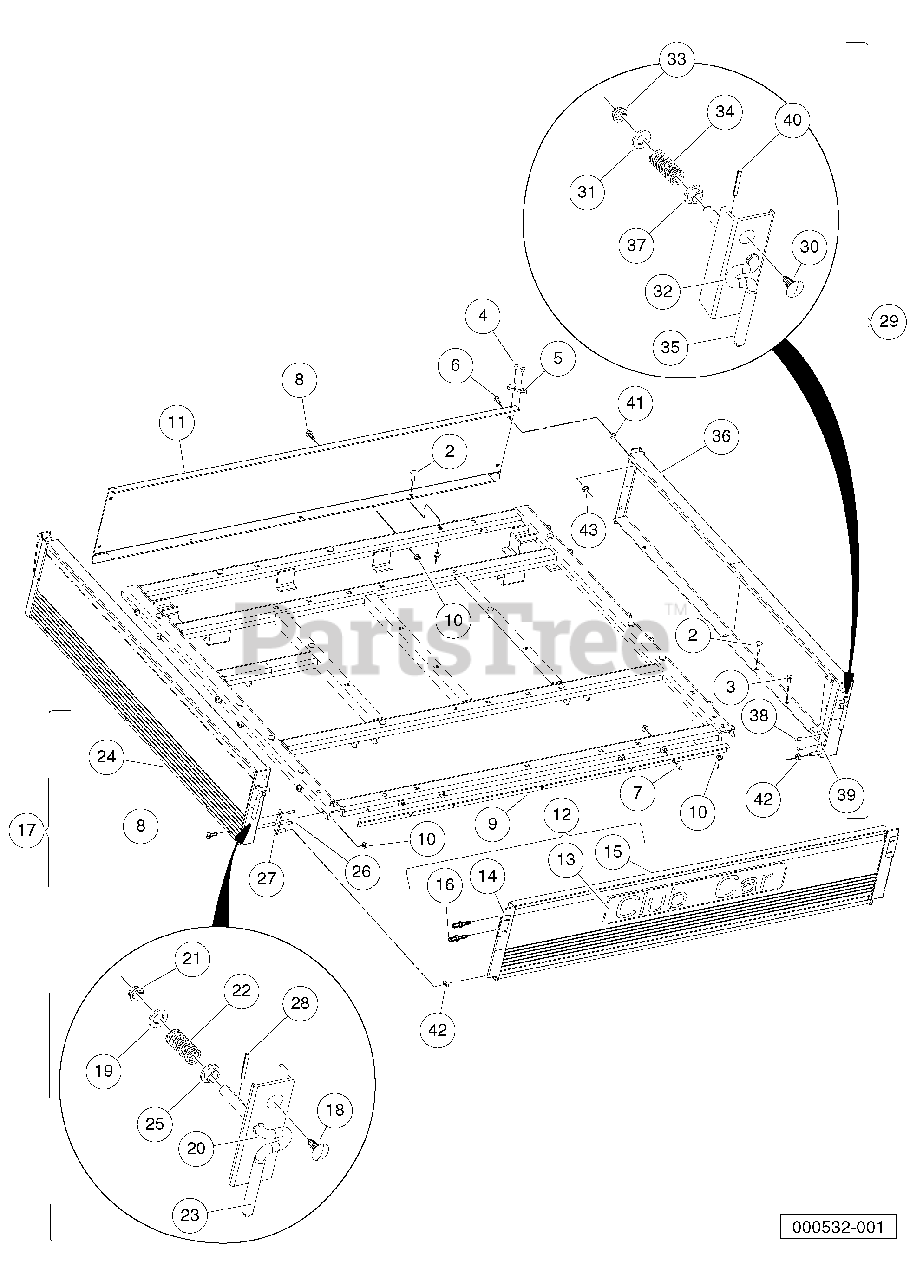

Box Bed Parts Diagram

  • Title

1

Husqvarna N/A

Install, Box Bed

Note: (includes items 2 through 43)

$

$

Not available

2

Husqvarna 1010435

Bolt, Carriage, 5/16-18 X 1.00

$

$

Currently unavailable

3

Husqvarna 1010934

Screw, 5/16-18 X 1.00 Hex Cap

$

$

Currently unavailable

4

Husqvarna 1014321

Screw, #10 Truss-Head Torx

$

$

Currently unavailable

5

Husqvarna 1014387

Cap, Corner

$

$

Currently unavailable

6

Husqvarna 1014415

Screw, 1/4-20 X 0.75 Torx Truss-Head

$

$

Currently unavailable

7

Husqvarna 1014537

Stud, Self-Clinching Flush Head

$

$

Currently unavailable

8

Husqvarna 1015399

Screw, 5/16-18 X 0.88 Torx Truss-Head

$

$

Currently unavailable

9

Husqvarna N/A

Box Bed Tailgate Angle

$

$

Not available

10

Husqvarna 101963401

Locknut, 5/16-18 Hex Flange

$

$

Currently unavailable

11

Husqvarna 102030101

Panel, Front

$

$

Currently unavailable

12

Husqvarna 102030201

Tailgate Asm

Note: (includes items 13 through 16)

$

$

Currently unavailable

13

Husqvarna 1013317

Decal, Logo, Tailgate

$

$

Currently unavailable

14

Husqvarna 1015246

Plate, Tailgate Latch Wear

$

$

Currently unavailable

15

Husqvarna 102030301

Tailgate Weldment

$

$

Currently unavailable

16

Husqvarna 7973

Rivet, 3/16 X .400 Blind

$

$

Currently unavailable

17

Husqvarna 103191401

Asm, Panel, Side, Left

Note: (includes items 18 through 28)

$

$

Currently unavailable

18

Husqvarna 1010434

Barrel - Plastic

$

$

Currently unavailable

19

Husqvarna 1011990

Washer, 3/8 Flat

$

$

Currently unavailable

20

Husqvarna 1015313

Latch, Tailgate, Left-Hand

$

$

Currently unavailable

21

Husqvarna 1015363

Bushing, Snap-In

$

$

Currently unavailable

22

Husqvarna 1015390

Compression Spring Latch Tilt

$

$

Currently unavailable

23

Husqvarna 1015400

Grip, Tilt Latch Hand

$

$

Currently unavailable

24

Husqvarna 103191201

Weldment, Panel, Side, Left

$

$

Currently unavailable

25

Husqvarna 1032

Bushing, Nylon

$

$

Currently unavailable

26

Husqvarna 103379401

Rivet, 1/4 X 0.30, Blind

$

$

Currently unavailable

27

Husqvarna 103388601

Asm, Tlgt, Mtg Brkt, Ca Lh

$

$

Currently unavailable

28

Husqvarna 1231

Pin, 1/8 X 1.00 Split Roll

$

$

Currently unavailable

29

Husqvarna 103191501

Asm, Panel, Side, Right

Note: (includes items 30 through 40)

$

$

Currently unavailable

30

Husqvarna 1010434

Barrel - Plastic

$

$

Currently unavailable

31

Husqvarna 1011990

Washer, 3/8 Flat

$

$

Currently unavailable

32

Husqvarna 1015245

Latch, Tailgate, Right-Hand

$

$

Currently unavailable

33

Husqvarna 1015363

Bushing, Snap-In

$

$

Currently unavailable

34

Husqvarna 1015390

Compression Spring Latch Tilt

$

$

Currently unavailable

35

Husqvarna 1015400

Grip, Tilt Latch Hand

$

$

Currently unavailable

36

Husqvarna 103191301

Weldment, Panel, Side, Right

$

$

Currently unavailable

37

Husqvarna 1032

Bushing, Nylon

$

$

Currently unavailable

38

Husqvarna 103379401

Rivet, 1/4 X 0.30, Blind

$

$

Currently unavailable

39

Husqvarna 103388602

Asm, Tlgt, Mtg Brkt, Ca Rh

$

$

Currently unavailable

40

Husqvarna 1231

Pin, 1/8 X 1.00 Split Roll

$

$

Currently unavailable

41

Husqvarna 332

Washer, 1/4 Type A Narrow Flat

$

$

Currently unavailable

42

Husqvarna 7049

Bushing, Nylon

$

$

Currently unavailable

43

Husqvarna 8233

Locknut, 1/4-20 Nylon Insert

$

$

Currently unavailable
