HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Bench Seats Parts Diagram

4x4 Utility Vehicle

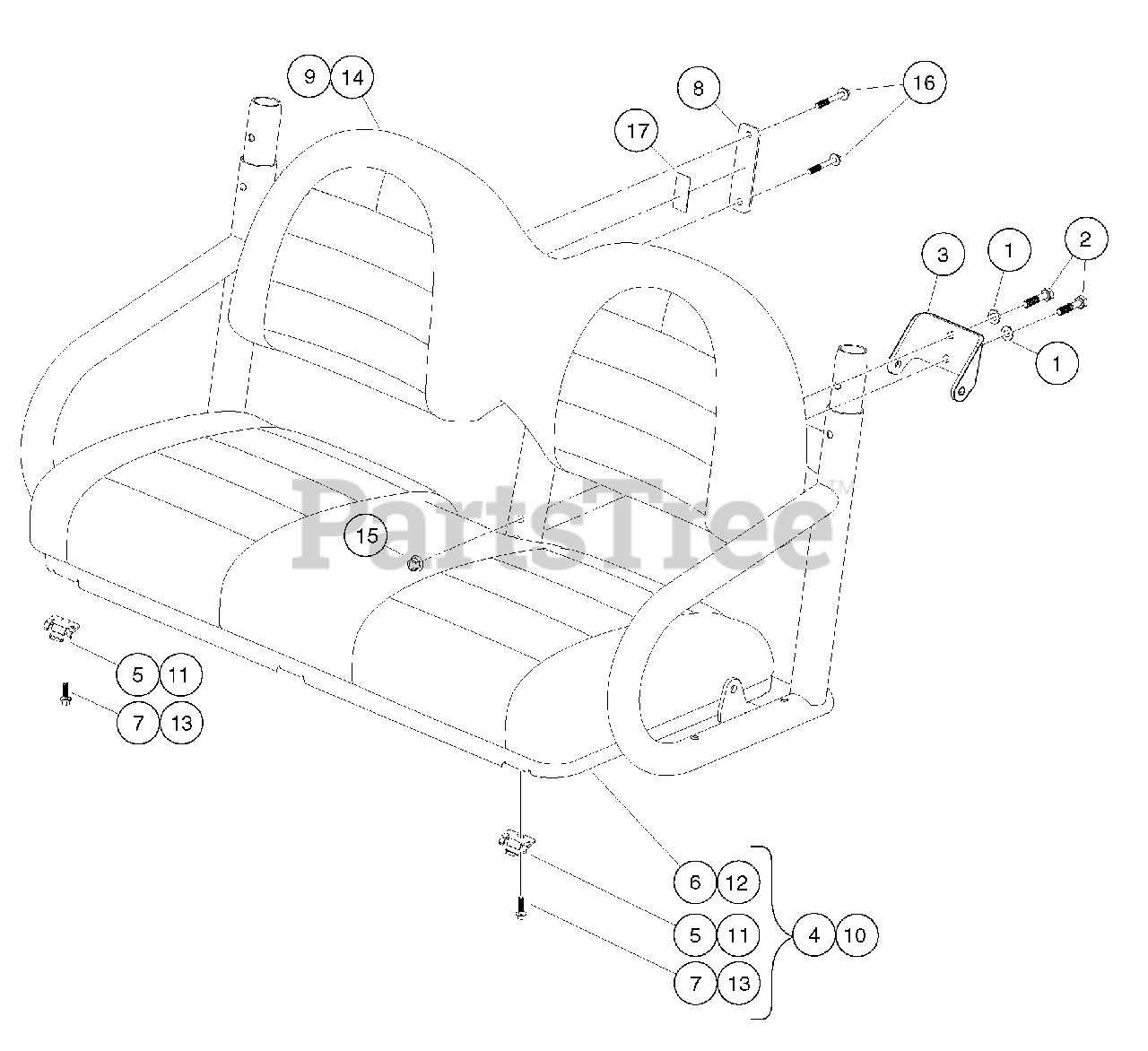

Bench Seats Parts Diagram

  • Title

1

Husqvarna 102718101

Washer, Hard, M10, Zn-Ni/Blk

$

$

Currently unavailable

2

Husqvarna 102732401

Bolt, M10 X 45, Zn-Ni (Black)

$

$

Currently unavailable

3

Husqvarna 102759901

Bracket, Seat Belt, Bench

$

$

Currently unavailable

4

Husqvarna 102879201

Asm, Seat Bottom, Bench, Gray

Note: (includes items 5 through 7)

$

$

Currently unavailable

5

Husqvarna 1011652

Hinge Plate

$

$

Currently unavailable

6

Husqvarna N/A

Asm, Seat Bottom, Bench

$

$

Not available

7

Husqvarna 103262201

Bolt Flg Blk, M8 X 25, Loctite

$

$

Currently unavailable

8

Husqvarna 102879401

Bracket, Seat Back, AWD

$

$

Currently unavailable

9

Husqvarna 102912301

Seat Back, Bench, Gray

$

$

Currently unavailable

10

Husqvarna 103181001

Asm, Seat Bottom, Bench, Black

Note: (includes items 11 through 13)

$

$

Currently unavailable

11

Husqvarna 1011652

Hinge Plate

$

$

Currently unavailable

12

Husqvarna 103180901

Seat Bottom, Bench, Black

$

$

Currently unavailable

13

Husqvarna 103262201

Bolt Flg Blk, M8 X 25, Loctite

$

$

Currently unavailable

14

Husqvarna 103181101

Seat Back, Bench, Black

$

$

Currently unavailable

15

Husqvarna 103216401

Nut, Flanged, M10 x 1.5, Black

$

$

Currently unavailable

16

Husqvarna 103262601

Bolt Flg Blk, M8 X 55, Loctite

$

$

Currently unavailable

17

Husqvarna N/A

Tape, Double-Sided, VHB, 1"x 2"

$

$

Not available
