HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Side Panels and Rear Fenders Parts Diagram

4x4 Utility Vehicle

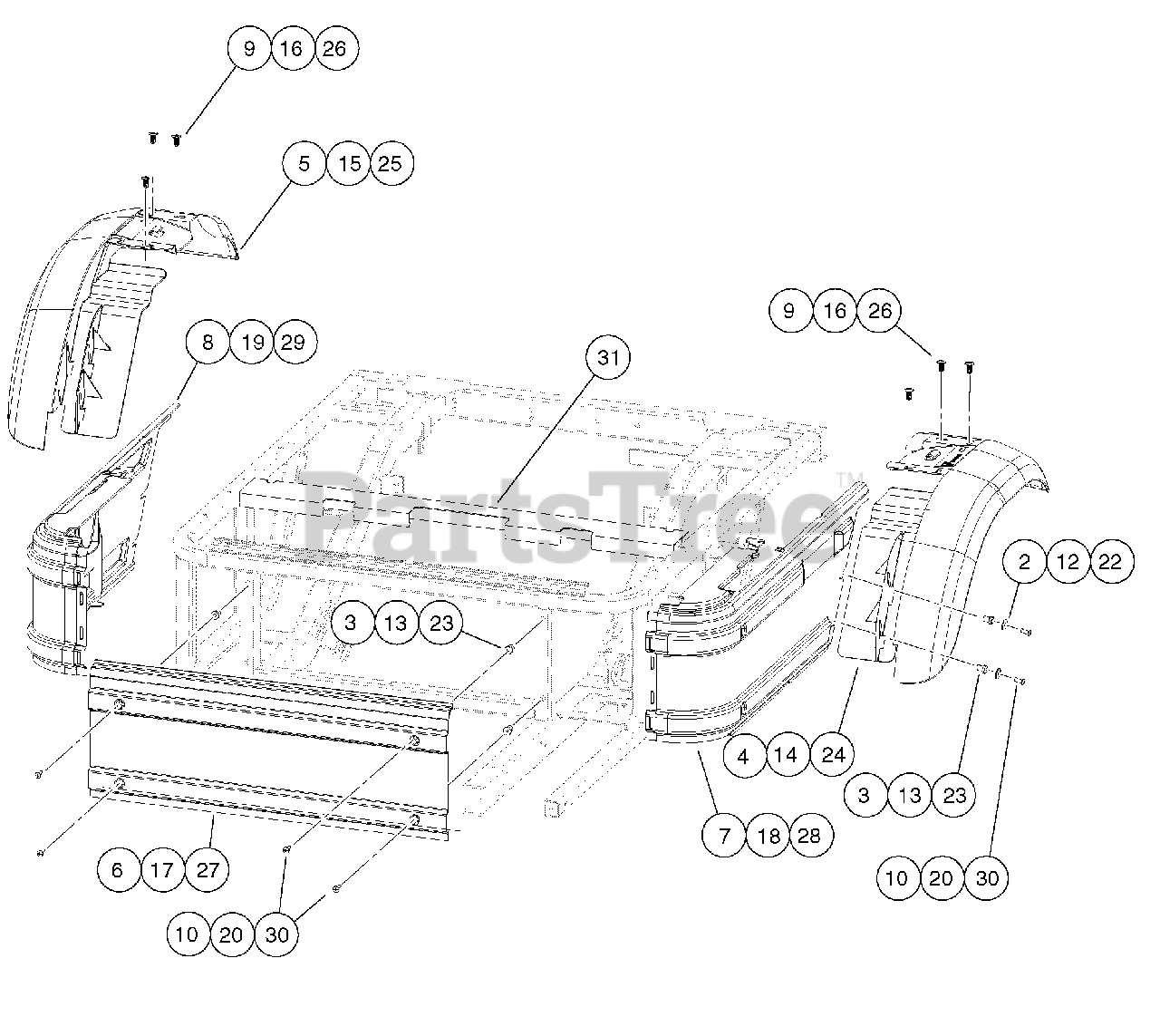

Side Panels and Rear Fenders Parts Diagram

  • Title
1

Husqvarna N/A

Instl, Panels, Fenders, Blk

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 1014306

Washer, 1/4" Type B Flat

$

$

Currently unavailable

3

Husqvarna 102491701

Well Nut 1/4-20

$

$

Currently unavailable

4

Husqvarna 102913801

Left Rear Fender

$

$

Currently unavailable

5

Husqvarna 102913901

Right Rear Fender

$

$

Currently unavailable

6

Husqvarna 102914001

Panel, Front, Kick

$

$

Currently unavailable

7

Husqvarna 102914101

Panel, Side, Molded, Driver

$

$

Currently unavailable

8

Husqvarna 102914102

Panel, Side, Molded, Passenger

$

$

Currently unavailable

9

Husqvarna 103200501

Screw, Tuflok, 10mm

$

$

Currently unavailable

10

Husqvarna 8251

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Currently unavailable

11

Husqvarna N/A

Instl, Panels, Fenders, Rthwd

Note: (includes items 12 through 20)

$

$

Not available

12

Husqvarna 1014306

Washer, 1/4" Type B Flat

$

$

Currently unavailable

13

Husqvarna 102491701

Well Nut 1/4-20

$

$

Currently unavailable

14

Husqvarna 102913801

Left Rear Fender

$

$

Currently unavailable

15

Husqvarna 102913901

Right Rear Fender

$

$

Currently unavailable

16

Husqvarna 103200501

Screw, Tuflok, 10mm

$

$

Currently unavailable

17

Husqvarna 103289001

Panel, Front, Kick, Rthwhd

$

$

Currently unavailable

18

Husqvarna 103289101

Pnl, Side, Mld, Drv, Rthwhd

$

$

Currently unavailable

19

Husqvarna 103289103

Pnl, Side, Mld, Pass, Rthwhd

$

$

Currently unavailable

20

Husqvarna 8251

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Currently unavailable

21

Husqvarna N/A

Instl, Panels, Fenders, Moff

Note: (includes items 22 through 30)

$

$

Not available

22

Husqvarna 1014306

Washer, 1/4" Type B Flat

$

$

Currently unavailable

23

Husqvarna 102491701

Well Nut 1/4-20

$

$

Currently unavailable

24

Husqvarna 102913801

Left Rear Fender

$

$

Currently unavailable

25

Husqvarna 102913901

Right Rear Fender

$

$

Currently unavailable

26

Husqvarna 103200501

Screw, Tuflok, 10mm

$

$

Currently unavailable

27

Husqvarna 103289002

Panel, Front, Kick, Moff

$

$

Currently unavailable

28

Husqvarna 103289102

Pnl, Side, Mld, Drv, Moff

$

$

Currently unavailable

29

Husqvarna 103289104

Pnl, Side, Mld, Pass, Moff

$

$

Currently unavailable

30

Husqvarna 8251

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Currently unavailable

31

Husqvarna 103331201

Closeout, Extrusion

$

$

Currently unavailable
