HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Seat Belts and Lower Rops Parts Diagram

4x4 Utility Vehicle

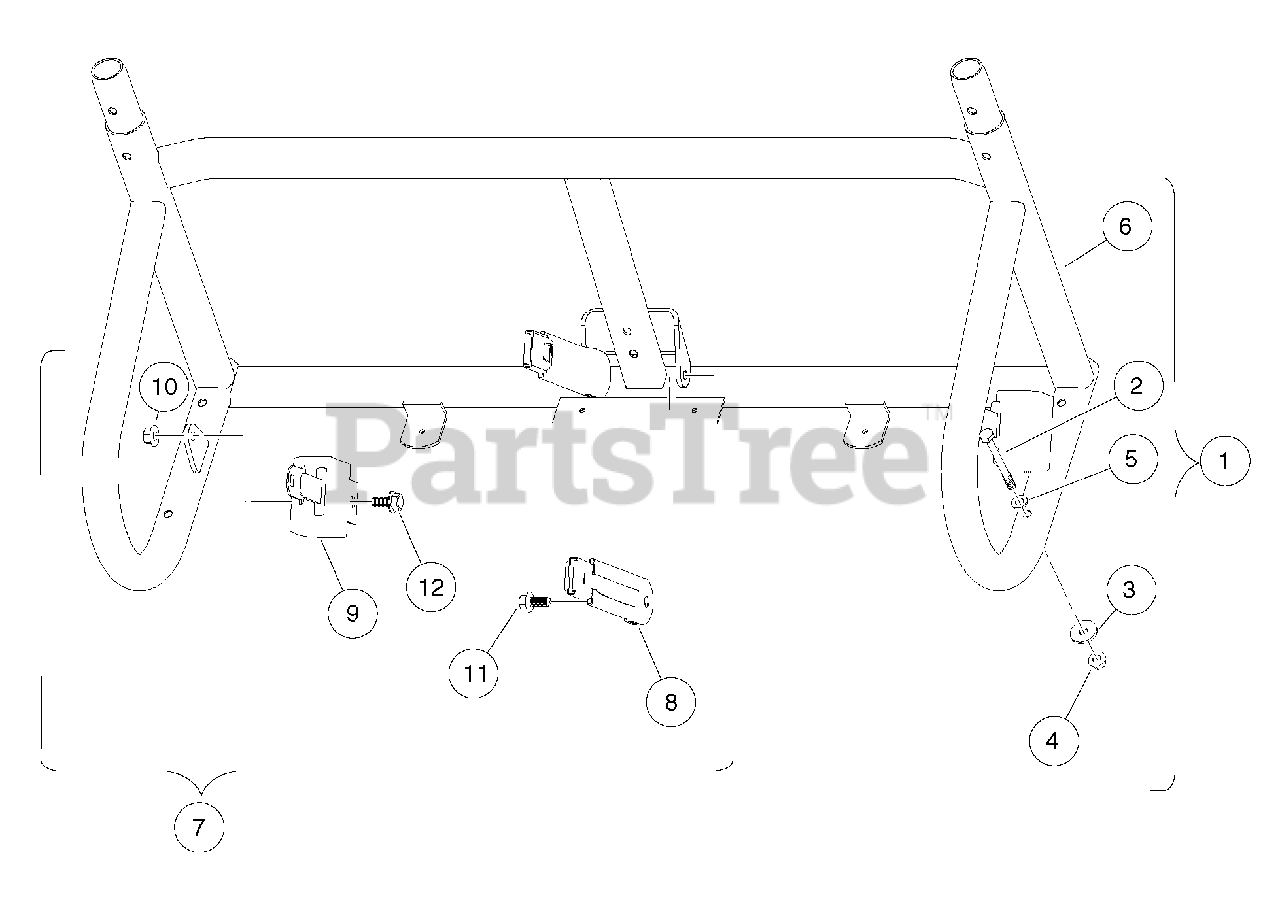

Seat Belts and Lower Rops Parts Diagram

  • Title

1

Husqvarna N/A

Instl, Rops, Lower

Note: (includes items 2 through 6)

$

$

Not available

2

Husqvarna 102491301

Bolt, M10x1.50x100 (Black)

$

$

Currently unavailable

3

Husqvarna 102491501

Washer Hard,m10

$

$

Currently unavailable

4

Husqvarna 102617201

Nut Flg M10 X 1.5 Mech Def

$

$

Currently unavailable

5

Husqvarna 102718101

Washer, Hard, M10, Zn-Ni/Blk

$

$

Currently unavailable

6

Husqvarna 103361701

Weldment,seat Support,hs,rops

$

$

Currently unavailable

7

Husqvarna N/A

Instl, Seat Belt, Restyle

Note: (includes items 8 through 12)

$

$

Not available

8

Husqvarna 102447601

Buckle, Seat Belt with Sleeve

$

$

Currently unavailable

9

Husqvarna 102447602

Retractor, Seat Belt

$

$

Currently unavailable

10

Husqvarna 102620301

Ln Flg, M12 X 1.75, Md, Black

$

$

Currently unavailable

11

Husqvarna 102671201

Screw,m12x1.75x30 Thd Form Blk

$

$

Currently unavailable

12

Husqvarna 103245101

Bolt Flg, M12x1.75 X 25 Black

$

$

Currently unavailable
