HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Rear Suspension - Standard Parts Diagram

4x4 Utility Vehicle

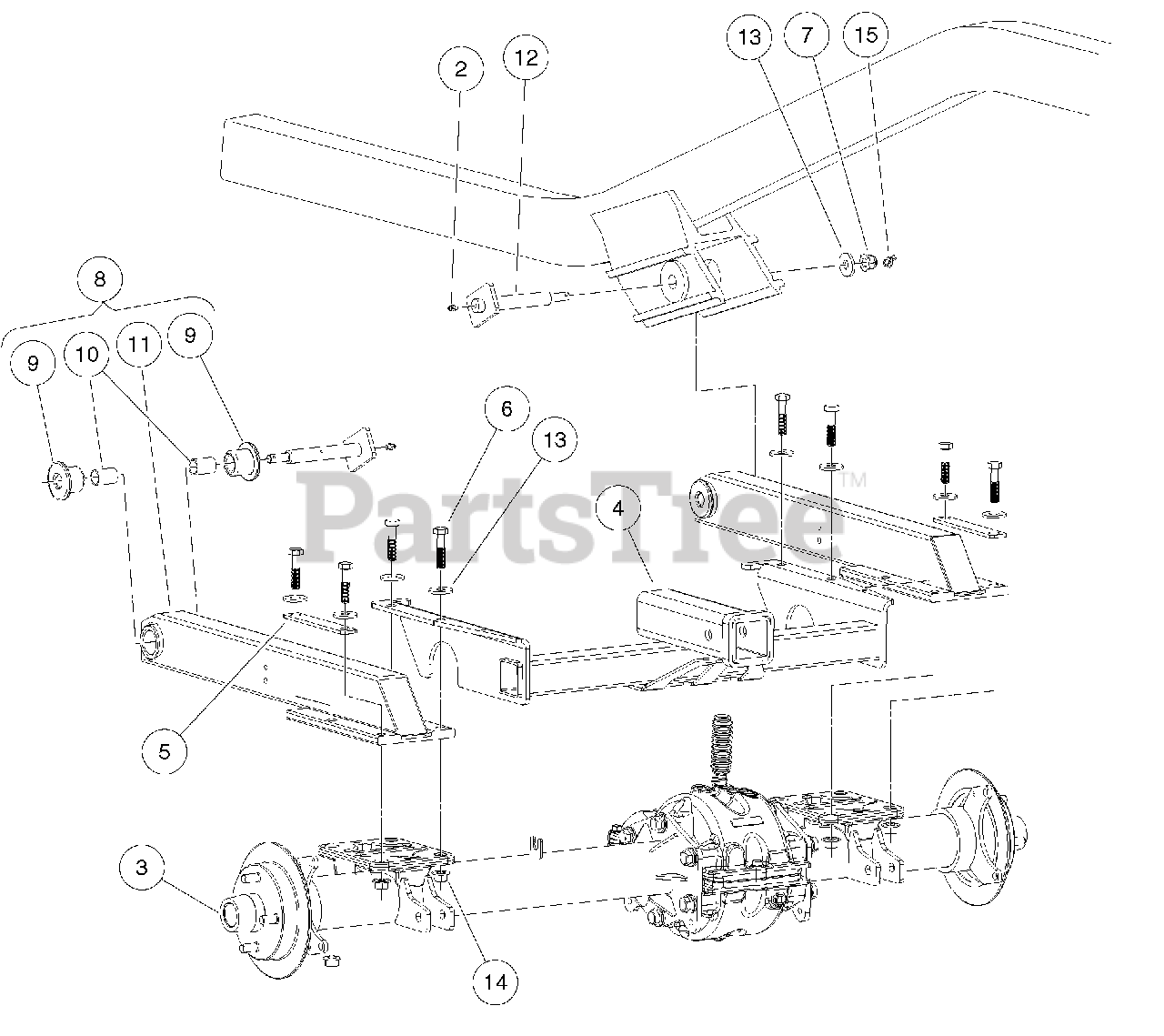

Rear Suspension - Standard Parts Diagram

  • Title

1

Husqvarna N/A

Instl, Rear Suspension

Note: (includes items 2 through 15)

$

$

Not available

2

Husqvarna 1015597

Fitting, 1/4-28 Thread-Forming Grease

$

$

Currently unavailable

3

Husqvarna 102274101

Center Cap, Rubber

$

$

Currently unavailable

4

Husqvarna 102393501

Weldment, Receiver, Rear

$

$

Currently unavailable

5

Husqvarna 102619801

Washer, Strip, Swingarm

$

$

Currently unavailable

6

Husqvarna 102620401

Bolt Flanged Head, M12 X 1.75 X 50

$

$

Currently unavailable

7

Husqvarna 102620501

Nut Flg, M12x1.75, Nylon Gr 10

$

$

Currently unavailable

8

Husqvarna N/A

Sub Asm Swingarm

Note: (includes items 9 through 11)

$

$

Not available

9

Husqvarna 102398901

Bushing, Pivot, Urethane

$

$

Currently unavailable

10

Husqvarna 102477001

Bushing, Teflon

$

$

Currently unavailable

11

Husqvarna 103282301

Swingarm, Rear, Awd

$

$

Currently unavailable

12

Husqvarna 102682901

Pin, Swingarm, Weldment

$

$

Currently unavailable

13

Husqvarna 102684501

Washer, M12 Hard Regular

$

$

Currently unavailable

14

Husqvarna 102685601

Nut Flg M12 X 1.75 Cl10

$

$

Currently unavailable

15

Husqvarna 102737101

Cotter, Rue Ring, 1/2"

$

$

Currently unavailable
