HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Park Brake System Parts Diagram

4x4 Utility Vehicle

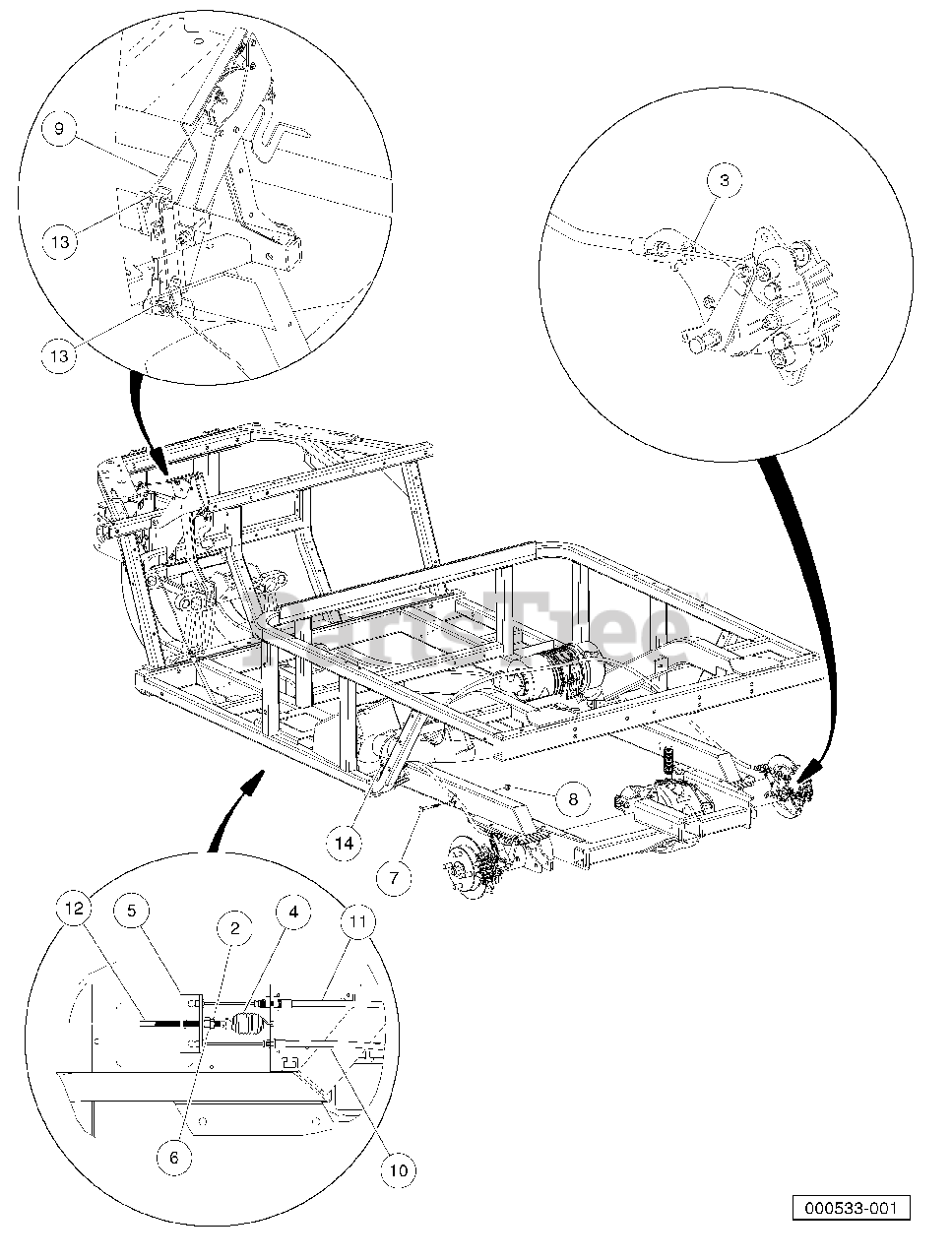

Park Brake System Parts Diagram

  • Title

1

Husqvarna N/A

Instl, Brake, Park, AWD

Note: (includes items 2 through 14)

$

$

Not available

2

Husqvarna 1010521

Nut, 5/16-24 Hex

$

$

Currently unavailable

3

Husqvarna 1011779

E-Clip, 1/2

$

$

Currently unavailable

4

Husqvarna 1013531

Spring, Brake Return

$

$

Currently unavailable

5

Husqvarna 101990802

Equalizer Bracket

$

$

Currently unavailable

6

Husqvarna 102052801

Nut, 5/16-24 Hex Cone

$

$

Currently unavailable

7

Husqvarna 102618301

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Currently unavailable

8

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

9

Husqvarna 102712601

Cable, Crank, Bell, Front

$

$

Currently unavailable

10

Husqvarna 102763301

Cable, Noncoated, Pbrake, Left

$

$

Currently unavailable

11

Husqvarna 102763401

Cable, Noncoated, Pbrake, Rght

$

$

Currently unavailable

12

Husqvarna 103189001

Cable, Crank, Bell, Main

$

$

Currently unavailable

13

Husqvarna 1035

Cotter Pin, 3/32 x 1

$

$

Currently unavailable

14

Husqvarna 8639

Tie Wrap, 11" Nylon

$

$

Currently unavailable
