HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Front Differential (Output Components) Parts Diagram

4x4 Utility Vehicle

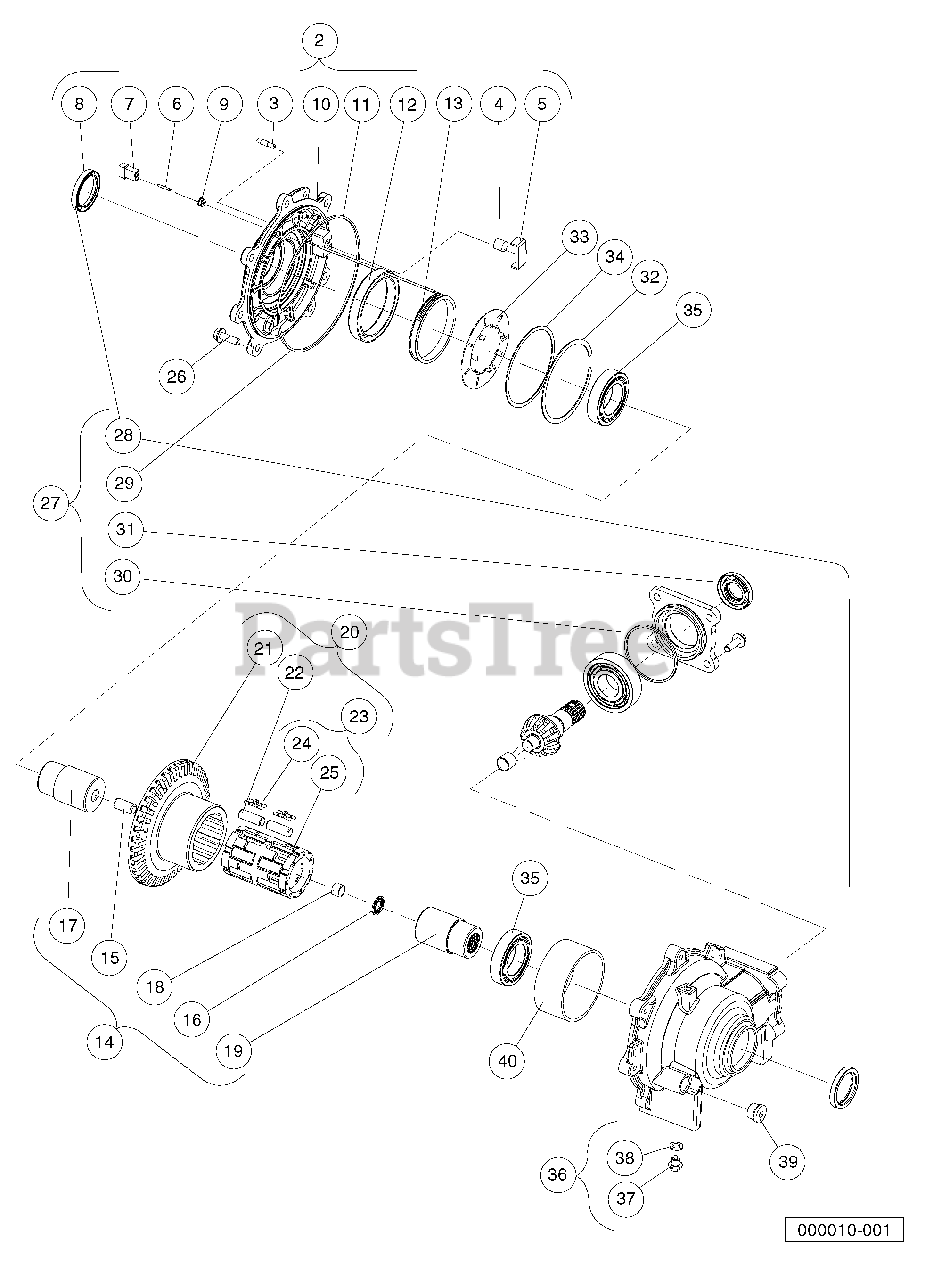

Front Differential (Output Components) Parts Diagram

  • Title

1

Husqvarna 102371801

Differential, Front

Note: (includes items 2 through 40)

$

$

Currently unavailable

2

Husqvarna 102438201

Kit, Assy, Output Cover Plate

Note: (includes items 3 through 13)

$

$

Currently unavailable

3

Husqvarna 102439001

Set Screw, #10-24 UNC-3A with Patch

$

$

Currently unavailable

4

Husqvarna 102439101

Thrust Button

$

$

Currently unavailable

5

Husqvarna 102439201

Thrust Plate

$

$

Currently unavailable

6

Husqvarna N/A

Mate-N-Lock Pin

$

$

Not available

7

Husqvarna N/A

Mate-N-Lock Housing

$

$

Not available

8

Husqvarna N/A

Oil Seal

$

$

Not available

9

Husqvarna N/A

Grommet

$

$

Not available

10

Husqvarna N/A

Plate, Output Cover

$

$

Not available

11

Husqvarna N/A

O-Ring

$

$

Not available

12

Husqvarna N/A

Coil, Pocket Insert

$

$

Not available

13

Husqvarna N/A

Coil with Press-Fit Bobbin

$

$

Not available

14

Husqvarna 102438301

Kit, Assy, Race Output Hub

Note: (includes items 15 through 19)

$

$

Currently unavailable

15

Husqvarna 102439401

Pin, Dowel

$

$

Currently unavailable

16

Husqvarna 102439501

Bearing, Needle

$

$

Currently unavailable

17

Husqvarna N/A

Race/Output Hub, Male

$

$

Not available

18

Husqvarna N/A

Bushing, PermiGlide

$

$

Not available

19

Husqvarna N/A

Race/Output Hub, Female

$

$

Not available

20

Husqvarna 102438401

Kit, Assy, Clutch

Note: (includes items 21 through 23)

$

$

Currently unavailable

21

Husqvarna 102439601

Clutch Hsg/Ring Gear, Machined

$

$

Currently unavailable

22

Husqvarna 102439801

Kit, Roller

Note: (contains 14 rollers)

$

$

Currently unavailable

23

Husqvarna 102439901

Kit, Assy, Roll Cage

Note: (includes items 24 and 25)

$

$

Currently unavailable

24

Husqvarna N/A

Kit, H-Clip Spring

Note: (contains 14 clips)

$

$

Not available

25

Husqvarna N/A

Roll Cage, Plastic

$

$

Not available

26

Husqvarna 102438501

Kit, Bolt

Note: (contains 7 bolts)

$

$

Currently unavailable

27

Husqvarna 102438601

Kit, Minor Repair

Note: (includes items 28 through 31)

$

$

Currently unavailable

28

Husqvarna N/A

Oil Seal

$

$

Not available

29

Husqvarna N/A

O-Ring

$

$

Not available

30

Husqvarna N/A

O-Ring

$

$

Not available

31

Husqvarna N/A

Oil Seal, Triple-Lipped

$

$

Not available

32

Husqvarna 102438701

Retaining, Ring Internal

$

$

Currently unavailable

33

Husqvarna 102438801

Plate, Armature

$

$

Currently unavailable

34

Husqvarna 102438901

Shim, Armature, Plate

$

$

Currently unavailable

35

Husqvarna 102439301

Bearing, Ball

$

$

Currently unavailable

36

Husqvarna 102440101

Kit, Assy, Drain Plug

Note: (includes items 37 and 38)

$

$

Currently unavailable

37

Husqvarna N/A

Plug, Oil Drain

$

$

Not available

38

Husqvarna N/A

Washer, Nylon, 0.625 x 0.382 x 0.06

$

$

Not available

39

Husqvarna 102440301

Plug, Oil Fill

$

$

Currently unavailable

40

Husqvarna N/A

Bushing, Self-Lubricating, 80 x 85 x 20

$

$

Not available
