HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Exhaust System Parts Diagram

4x4 Utility Vehicle

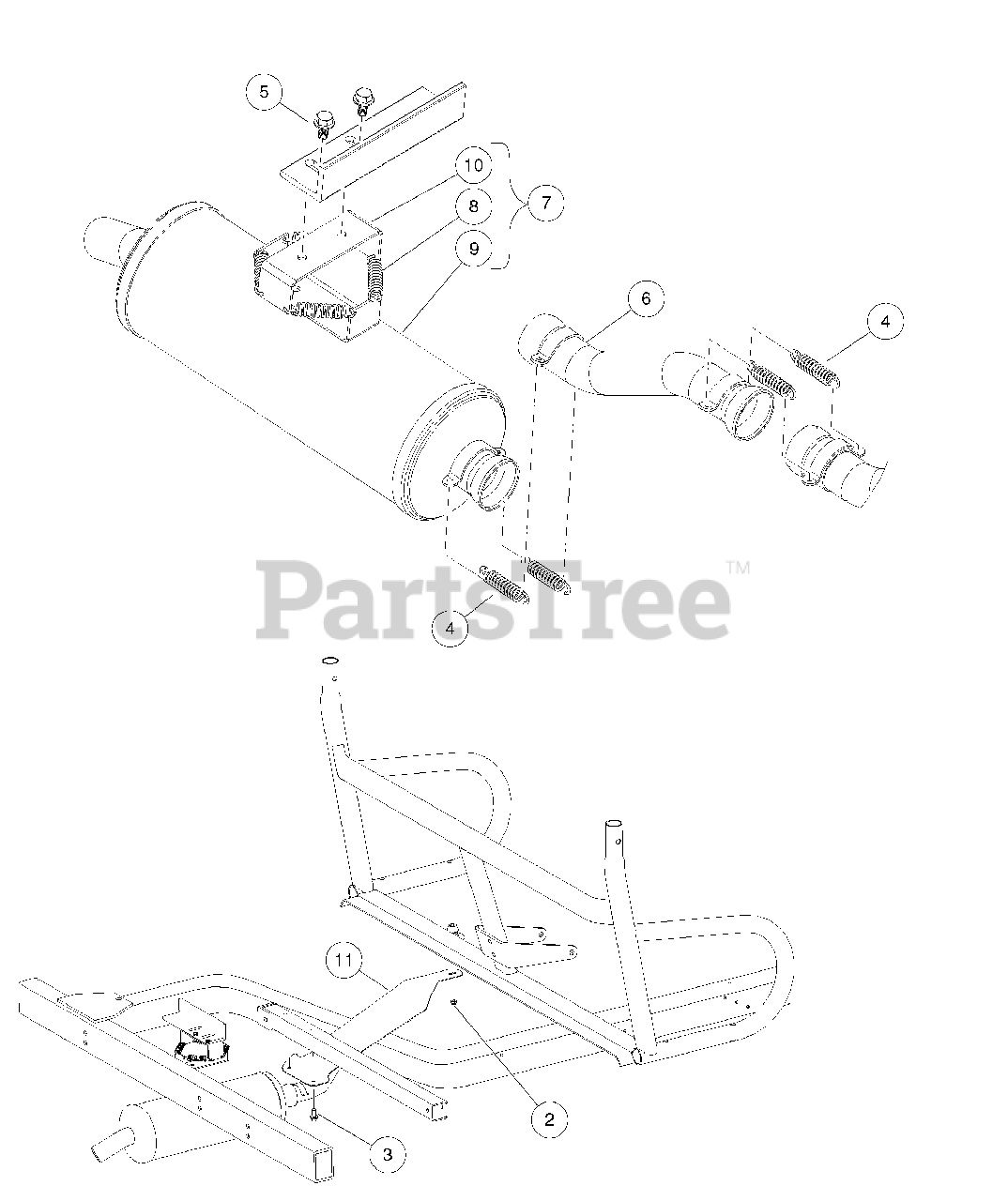

Exhaust System Parts Diagram

  • Title
1

Husqvarna N/A

Instl, Exhaust, AWD

Note: (includes items 2 through 11)

$

$

Not available

2

Husqvarna 101887601

Locknut, M6-1.00 Nylon Insert

$

$

Currently unavailable

3

Husqvarna 102298720

M8-1.25x20 Taptite

$

$

Currently unavailable

4

Husqvarna 102409501

Spring, Exhaust

$

$

Currently unavailable

5

Husqvarna 102621201

Bolt Flanged Head, M8 X1.25x 16 with Loctite

$

$

Currently unavailable

6

Husqvarna 102786201

Pipe, Exhaust, Int, Offset

$

$

Currently unavailable

7

Husqvarna 102812801

Asm, Muffler, AWD Homologation

Note: (includes items 8 through 10)

$

$

Currently unavailable

8

Husqvarna 102409501

Spring, Exhaust

$

$

Currently unavailable

9

Husqvarna N/A

Muffler

$

$

Not available

10

Husqvarna N/A

Bracket, Muffler

$

$

Not available

11

Husqvarna 102930901

Shield, Exhaust, Clearance

$

$

Currently unavailable
