HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Cowl Assembly Parts Diagram

4x4 Utility Vehicle

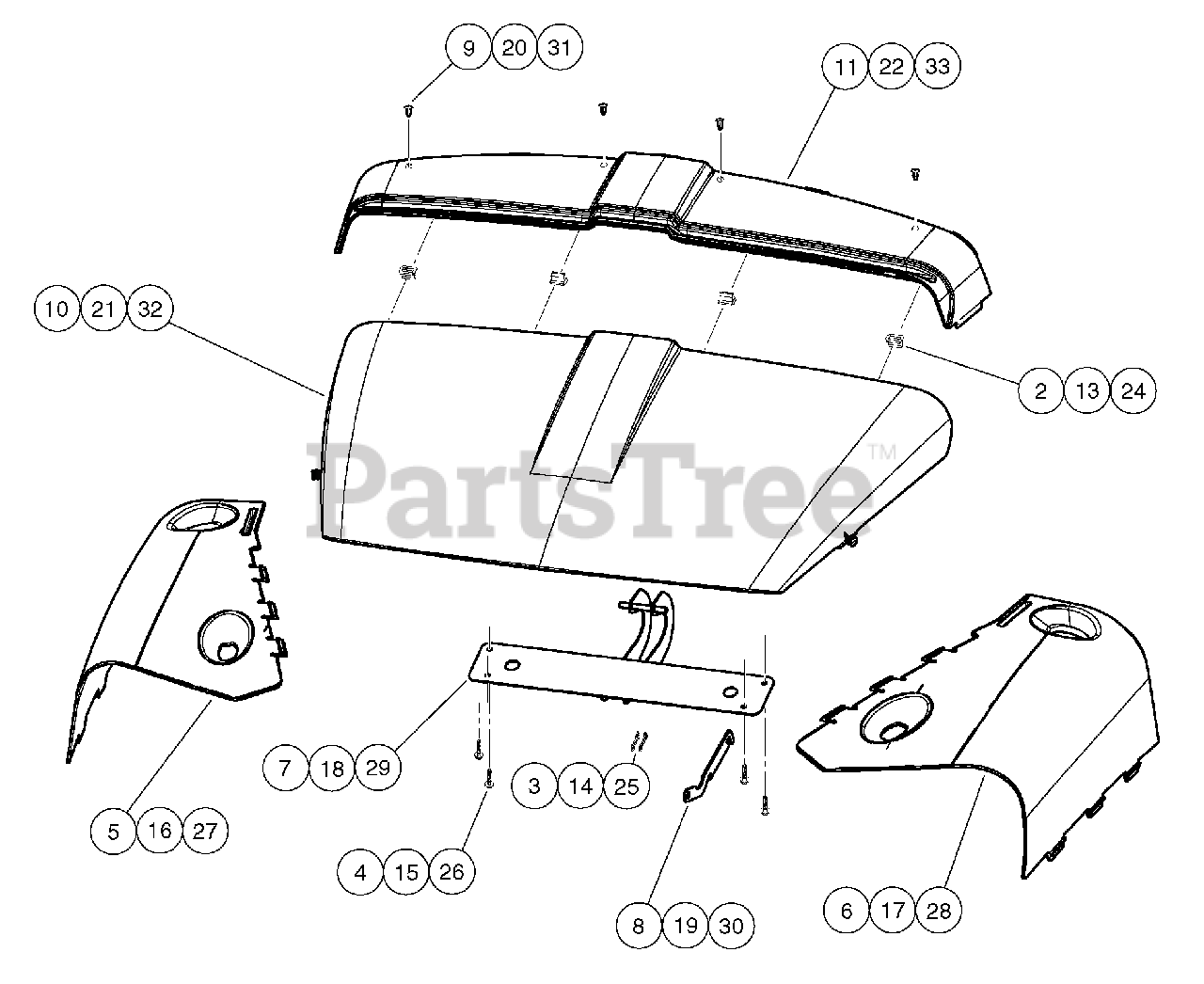

Cowl Assembly Parts Diagram

  • Title
1

Husqvarna N/A

Option, Color, Huv, Camo

Note: (includes items 2 through 11)

$

$

Not available

2

Husqvarna 102292701

Clip-body-trim

$

$

Currently unavailable

3

Husqvarna 102292801

Pin, Bow Tie Locking - .072

$

$

Currently unavailable

4

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

5

Husqvarna 102866718

Panel, Cowl, Passenger-Side, Real Tree Camo

$

$

Currently unavailable

6

Husqvarna 102866818

Panel, Cowl, Driver-Side, Real Tree Camo

$

$

Currently unavailable

7

Husqvarna 102896401

Weldment, Hinge, Hood

$

$

Currently unavailable

8

Husqvarna 102896501

Prop, Hood

$

$

Currently unavailable

9

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable

10

Husqvarna 102981818

Hood, Design B, Moff

$

$

Currently unavailable

11

Husqvarna 102981918

Panel, Cowl, Upper, B,moff

$

$

Currently unavailable

12

Husqvarna N/A

Option, Color, HUV, Orange

Note: (includes items 13 through 22)

$

$

Not available

13

Husqvarna 102292701

Clip-body-trim

$

$

Currently unavailable

14

Husqvarna 102292801

Pin, Bow Tie Locking - .072

$

$

Currently unavailable

15

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

16

Husqvarna 102866753

Panel, Cowl, Ps, Orange

$

$

Currently unavailable

17

Husqvarna 102866853

Panel, Cowl, Drv, Orange

$

$

Currently unavailable

18

Husqvarna 102896401

Weldment, Hinge, Hood

$

$

Currently unavailable

19

Husqvarna 102896501

Prop, Hood

$

$

Currently unavailable

20

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable

21

Husqvarna 102981853

Hood, Design B, Orange

$

$

Currently unavailable

22

Husqvarna 102981953

Panel, Cowl, Upper, B, Orange

$

$

Currently unavailable

23

Husqvarna N/A

Option, Color, Huv, Olive Grn

Note: (includes items 24 through 33)

$

$

Not available

24

Husqvarna 102292701

Clip-body-trim

$

$

Currently unavailable

25

Husqvarna 102292801

Pin, Bow Tie Locking - .072

$

$

Currently unavailable

26

Husqvarna 102297230

Screw,m6,torx,interlock,thread

$

$

Currently unavailable

27

Husqvarna 102866754

Panel, Cowl, Ps, Olive Green

$

$

Currently unavailable

28

Husqvarna 102866854

Panel, Cowl, Drv, Olive Green

$

$

Currently unavailable

29

Husqvarna 102896401

Weldment, Hinge, Hood

$

$

Currently unavailable

30

Husqvarna 102896501

Prop, Hood

$

$

Currently unavailable

31

Husqvarna 102967901

Rivet, Removable, Tuflok 1/4"

$

$

Currently unavailable

32

Husqvarna 102981854

Hood, Design B, Olive Grn

$

$

Currently unavailable

33

Husqvarna 102981954

Panel, Cowl, Upper, B, Olv Grn

$

$

Currently unavailable
