HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2009-01) Cooling System Clamps, Hoses, And Hardware Parts Diagram

4x4 Utility Vehicle

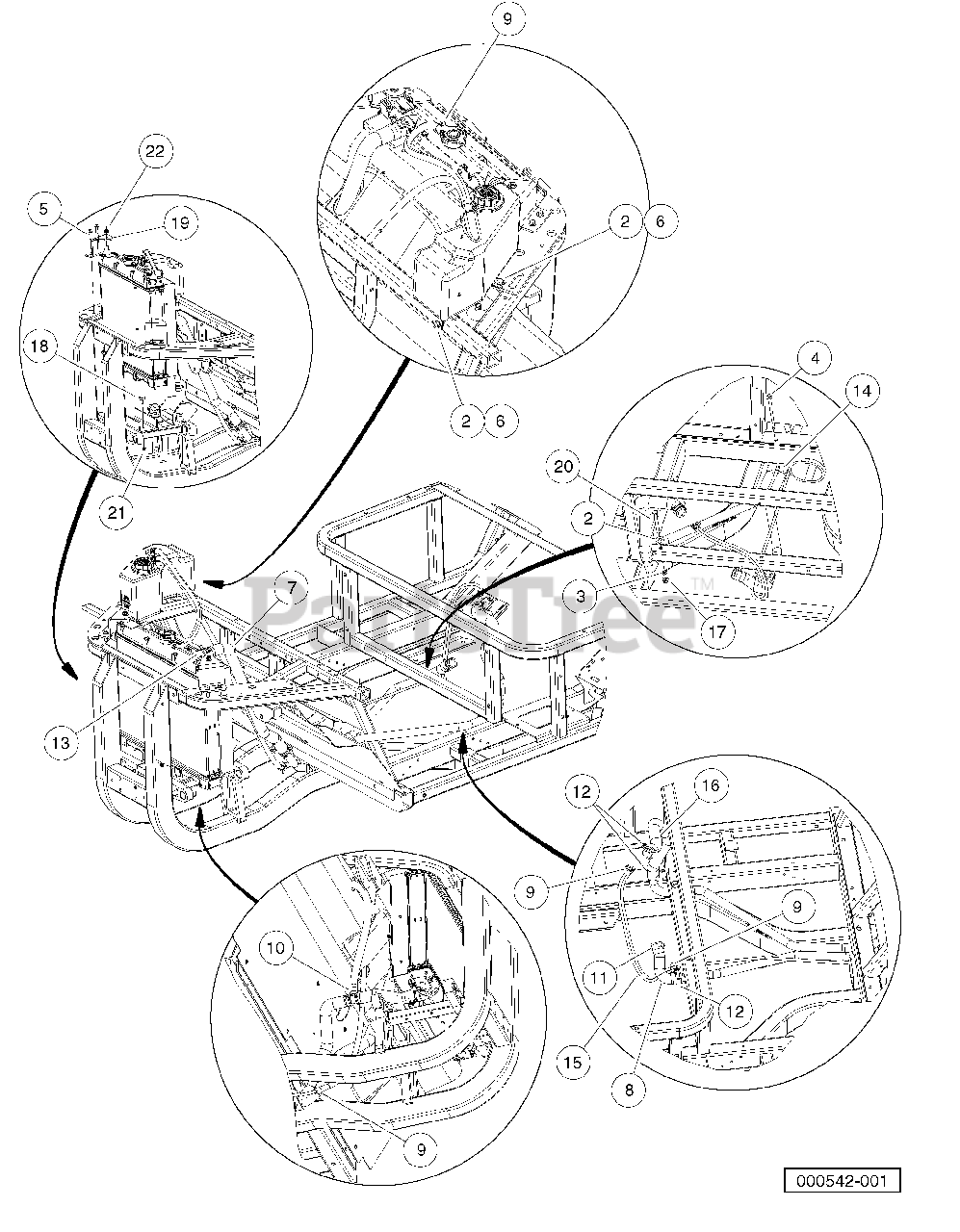

Cooling System Clamps, Hoses, And Hardware Parts Diagram

  • Title

1

Husqvarna N/A

Instl, Cooling Sys, Diesel

Note: (includes items 2 through 22)

$

$

Not available

2

Husqvarna 1011578

Washer, 5/16 Type B Flat

$

$

Currently unavailable

3

Husqvarna 1015457

Spacer, 0.720"

$

$

Currently unavailable

4

Husqvarna 102288901

Bolt-hex Fl, M8 X 1.25 X 135

$

$

Currently unavailable

5

Husqvarna 102289001

Screw, M8X1.25X30, Hex

$

$

Currently unavailable

6

Husqvarna 102298720

M8-1.25x20 Taptite

$

$

Currently unavailable

7

Husqvarna 102377501

Hose, Coolant Upper Rad

$

$

Currently unavailable

8

Husqvarna 102377601

Hose, Coolant Lower Eng

$

$

Currently unavailable

9

Husqvarna 102411204

Clamp, Hose, CTB 15mm

$

$

Currently unavailable

10

Husqvarna 102411205

Clamp, Hose, CTB 22mm

$

$

Currently unavailable

11

Husqvarna 102411206

Clamp, Hose, Ctb 30mm

$

$

Currently unavailable

12

Husqvarna 102411207

Clamp, Hose, Ctb 35mm

$

$

Currently unavailable

13

Husqvarna 102411208

Clamp, Hose, Ctb 38mm

$

$

Currently unavailable

14

Husqvarna 102427601

Clamp, Bar

$

$

Currently unavailable

15

Husqvarna 102435001

Hose, Vent Tube To Eng, Coolnt

$

$

Currently unavailable

16

Husqvarna 102480501

Hose, Coolant, Return, Engine

$

$

Currently unavailable

17

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

18

Husqvarna 102684901

Bumper, 19mm Stud

$

$

Currently unavailable

19

Husqvarna 102946701

Bracket, Radiator Support

$

$

Currently unavailable

20

Husqvarna 103423701

Bolt, M8 X 1.25 X 110

$

$

Currently unavailable

21

Husqvarna 96704176

Nut Flg, M6 X 1 Serrated

$

$

Currently unavailable

22

Husqvarna 96704416

Nut Flg, M8 X 1.25 Serrated

$

$

Currently unavailable
