HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2008-01) Water Flange and Thermostat Parts Diagram

4x4 Utility Vehicle

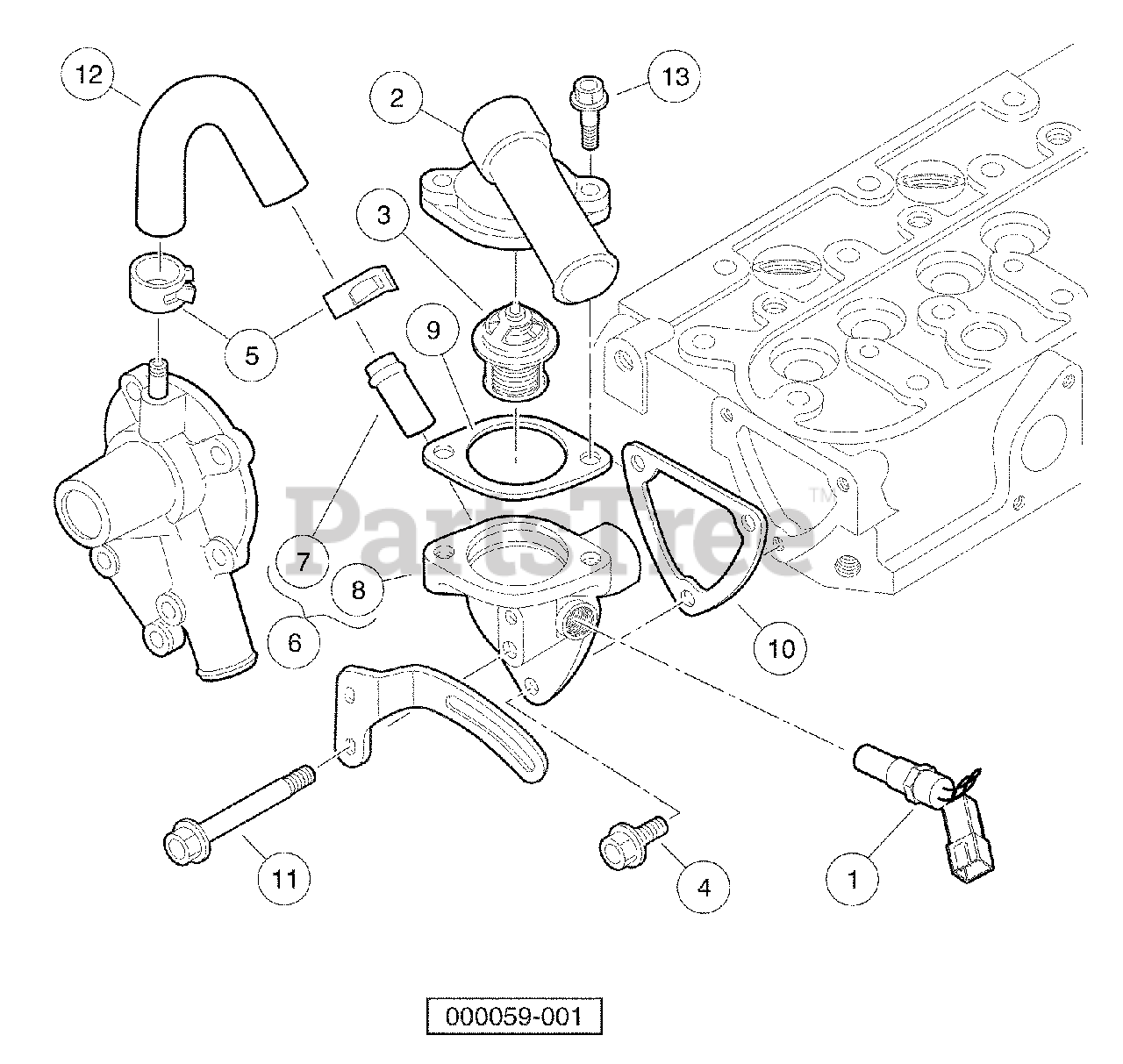

Water Flange and Thermostat Parts Diagram

  • Title

1

Husqvarna 603000963

Sensor, Coolant Temp

$

$

Not available

2

Husqvarna 603001341

Cover, Thermostat

$

$

Not available

3

Husqvarna 603001342

Assy, Thermostat

$

$

Not available

4

Husqvarna 603001343

Bolt, M6 X 1 X 20

$

$

Not available

5

Husqvarna 603001350

Band, Pipe

$

$

Not available

6

Husqvarna 603001351

Flange, Water

$

$

Not available

7

Husqvarna 603001828

Pipe, Water Return, D722

Note: (includes items 7 and 8)

$

$

Not available

8

Flange, Water

$

$

Not available

9

Husqvarna 603001353

Gasket, Thermostat

$

$

Not available

10

Husqvarna 603001460

Gasket, Water Flange

$

$

Not available

11

Husqvarna 603001747

Bolt, Alt, D722, Stay Lower

$

$

Not available

12

Husqvarna 603001748

Pipe, Water Return, D722

$

$

Not available

13

Husqvarna 603001749

Bolt, D722, Thermostat Cover

$

$

Not available
