HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2008-01) Speed Control Plate Parts Diagram

4x4 Utility Vehicle

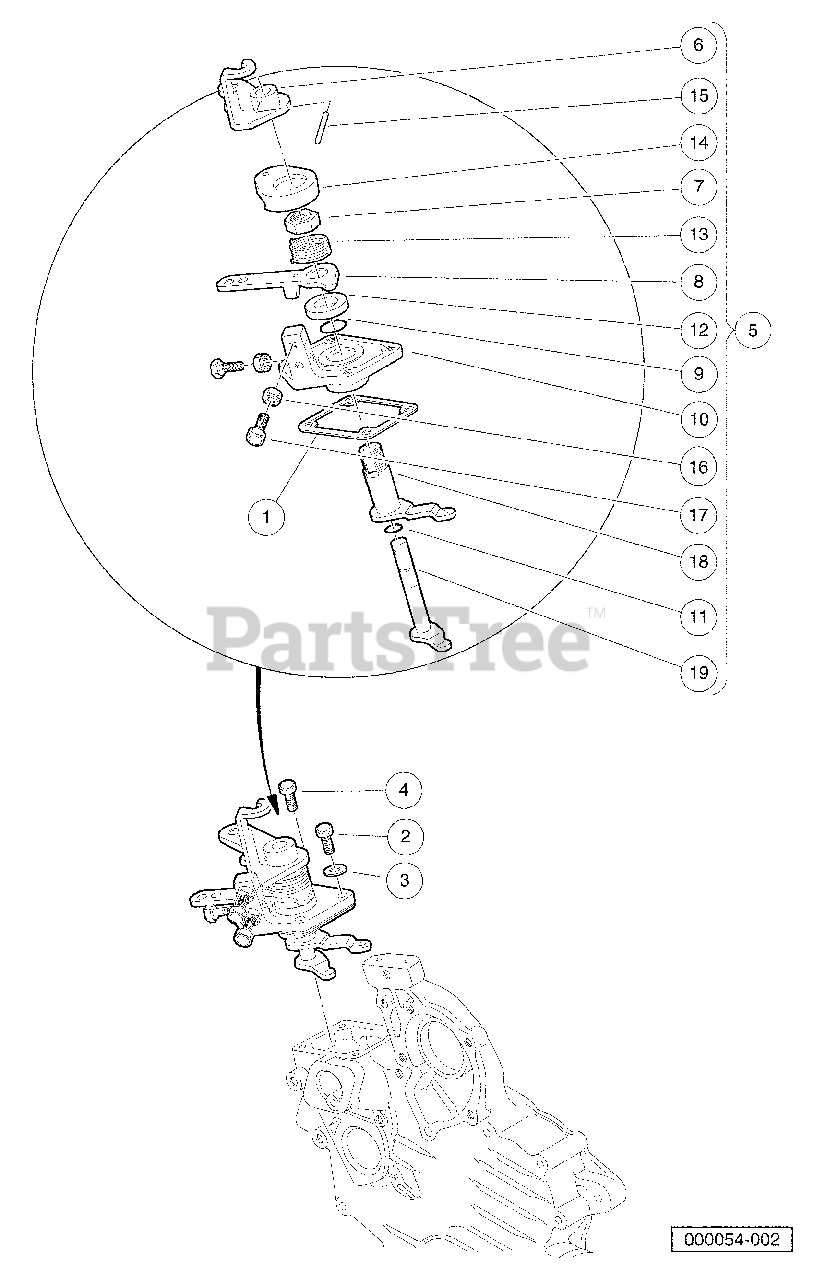

Speed Control Plate Parts Diagram

  • Title

1

Husqvarna 603001363

Gasket, Control Plate.

$

$

Not available

2

Husqvarna 603001368

Bolt, M6 X 1 X 30

$

$

Not available

3

Husqvarna 603001369

Gasket, 6 X 10

$

$

Not available

4

Husqvarna 603001456

Bolt, D722 Intake Manfld Lower.

$

$

Not available

5

Husqvarna 603001664

Assembly, Speed Plate

Note: (includes items 6 through 19)

$

$

Not available

6

Husqvarna 603001355

Lever, Engine Stop

$

$

Not available

7

Husqvarna 603001356

Nut, Speed Control

$

$

Not available

8

Husqvarna 603001357

Lever, Speed Control.

$

$

Not available

9

Husqvarna 603001358

O Ring, 19 X 16

$

$

Not available

10

Husqvarna 603001359

Plate, Speed Control.

$

$

Not available

11

Husqvarna 603001362

O Ring, 9 X 7

$

$

Not available

12

Husqvarna 603001364

Collar, Lever.

$

$

Not available

13

Husqvarna 603001365

Spring, Return.

$

$

Not available

14

Husqvarna 603001732

Cap, Speed Cntrl Plate Rtrn

$

$

Not available

15

Husqvarna 603001733

Pin, Spring, Speed Plate

$

$

Not available

16

Nut, Speed Control

$

$

Not available

17

Bolt, Speed Control.

$

$

Not available

18

Husqvarna 603001360

Lever, Governor

$

$

Not available

19

Husqvarna 603001361

Shaft, Governor Lever

$

$

Not available
