HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2008-01) Oil And Lubrication Components Parts Diagram

4x4 Utility Vehicle

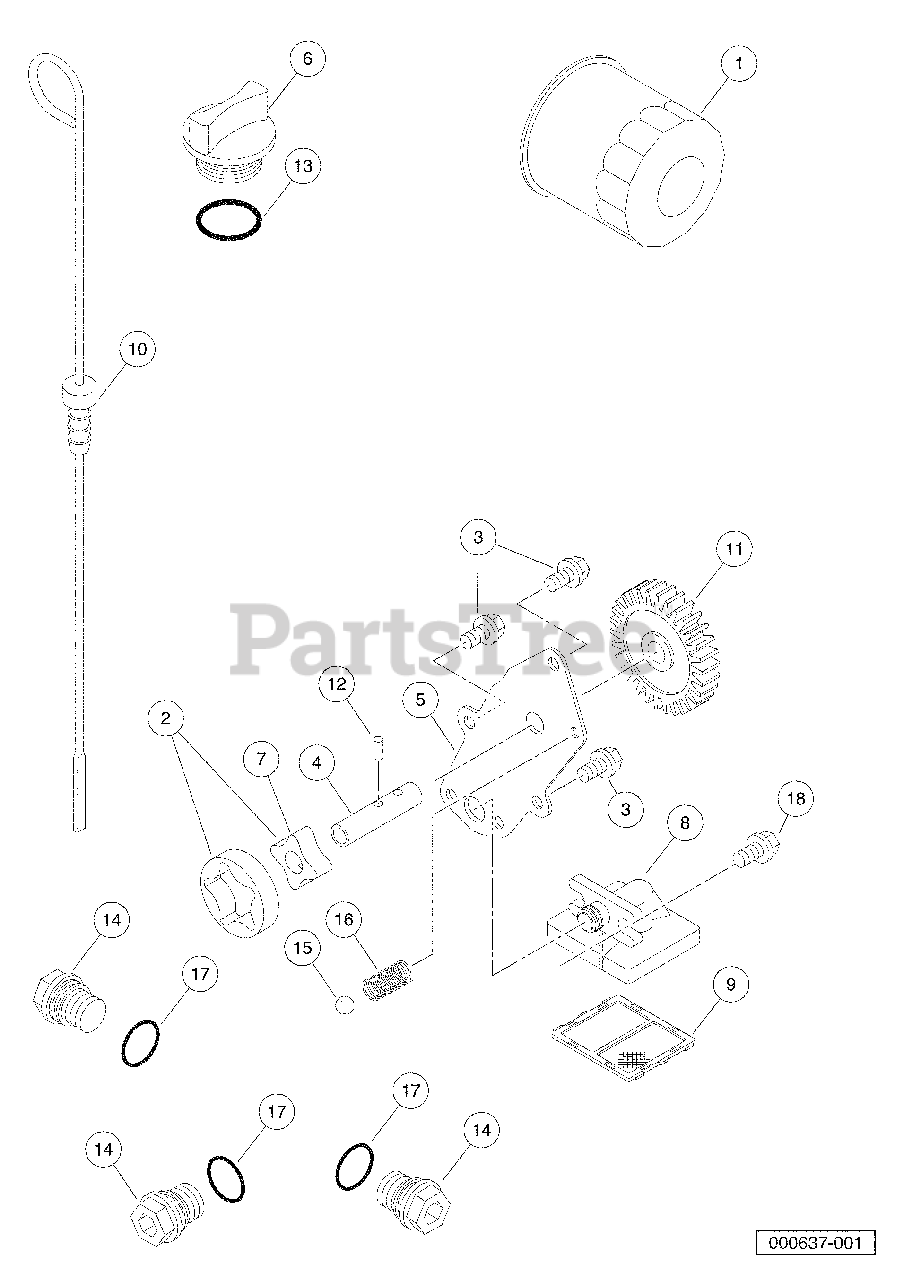

Oil And Lubrication Components Parts Diagram

  • Title

1

Husqvarna 603000006

Filter,Oil

$

$

Not available

2

Husqvarna 603000471

OilPumpAndRotor

$

$

Not available

3

Husqvarna 603003928

Bolt,Flg,M6X1.0X12

$

$

Not available

4

Husqvarna 603003890

Shaft,OilPump,Fh

$

$

Not available

5

Husqvarna 603003889

Plate,OilPump,Fh.

$

$

Not available

6

Husqvarna 603003888

Cap,Oil,Fill,Fh

$

$

Not available

7

Husqvarna 603003887

Rotor,Pump,Oil,In,Fh

$

$

Not available

8

Husqvarna 603003886

Pickup,Oil,Fh

$

$

Not available

9

Husqvarna 603003884

Screen,Pickup,Oil,Fh

$

$

Not available

10

Husqvarna 603003883

Gauge,Oil,Fh

$

$

Not available

11

Husqvarna 603003882

Gear,Spur,OilPump,Fh

$

$

Not available

12

Husqvarna 603003881

Pin,OilPump,Fh.

$

$

Not available

13

Husqvarna 603003880

O-ring,Cap,Oil,Fill,Fh

$

$

Not available

14

Husqvarna 603003879

Plug,OilDrain,Fh

$

$

Not available

15

Husqvarna 603003878

Ball,OilPump,Fh.

$

$

Not available

16

Husqvarna 603003877

Spring,OilPump,Fh

$

$

Not available

17

Husqvarna 603003876

O-ring,DrainPlug,Oil,Fh

$

$

Not available

18

Husqvarna 603003809

Bolt,OilPickup,Fh

$

$

Currently unavailable
