HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Transmission - Gasoline Vehicles (Part B) Parts Diagram

4x4 Utility Vehicle

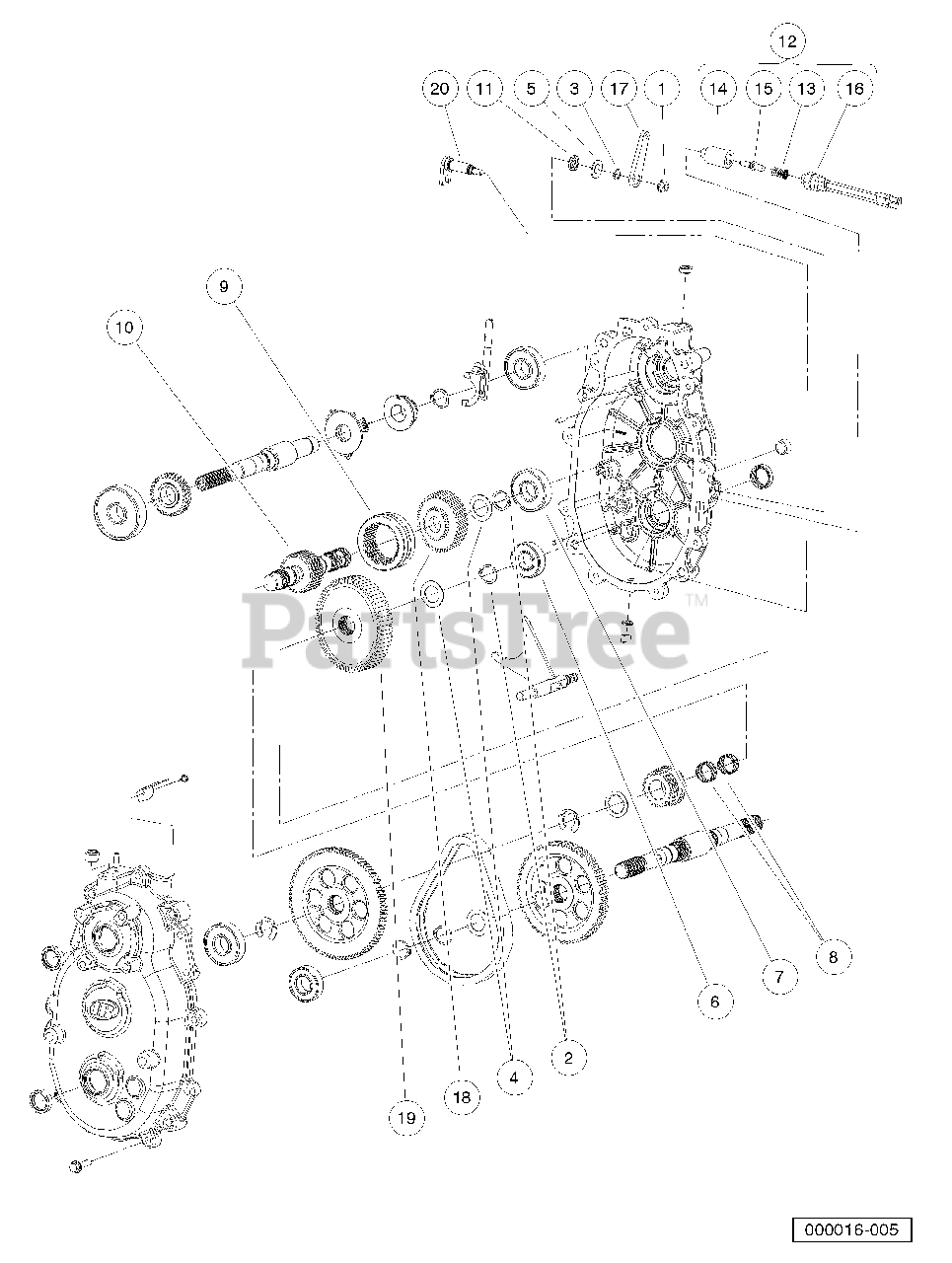

Transmission - Gasoline Vehicles (Part B) Parts Diagram

  • Title

1

Husqvarna 603001640

Nut, Lock Hex, Nylon, 5/16-24

$

$

Not available

2

Husqvarna 603001642

Ring, Retaining, Basic External

$

$

Not available

3

Husqvarna 603001644

Ring, Retaining, External 9/16

$

$

Not available

4

Husqvarna 603001645

Washer, Thrust, 1.007 X .062

$

$

Not available

5

Husqvarna 603001646

Washer, Flat, .58 X 1.08 X .05

$

$

Not available

6

Husqvarna 603001648

Bearing, Ball

$

$

Not available

7

Husqvarna 603001649

Bearing, Ball

$

$

Not available

8

Husqvarna 603001651

Bearing, Needle

$

$

Not available

9

Husqvarna 603002826

Dog, Engagement

$

$

Not available

10

Husqvarna 603002836

Shaft, Intermediate

$

$

Not available

11

Seal, Dul Lip, .88 X .56 X .19

$

$

Not available

12

Husqvarna 603001786

Kit, Neutral Switch Repair

Note: (includes items 13 through 16)

$

$

Not available

13

Spring, .484 X .340 X 1.076

$

$

Not available

14

Guide, Detent Bullet

$

$

Not available

15

Bullet, Detent

$

$

Not available

16

Switch, Indicator, Pollak

$

$

Not available

17

Husqvarna 603003571

Bellcrank, Alum

$

$

Not available

18

Husqvarna 603003572

Gear, 35t, Spur

$

$

Not available

19

Gear, 65t, Spur

$

$

Not available

20

Shaft, Shift

$

$

Not available
