HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Transmission - Gasoline Vehicles (Part A) Parts Diagram

4x4 Utility Vehicle

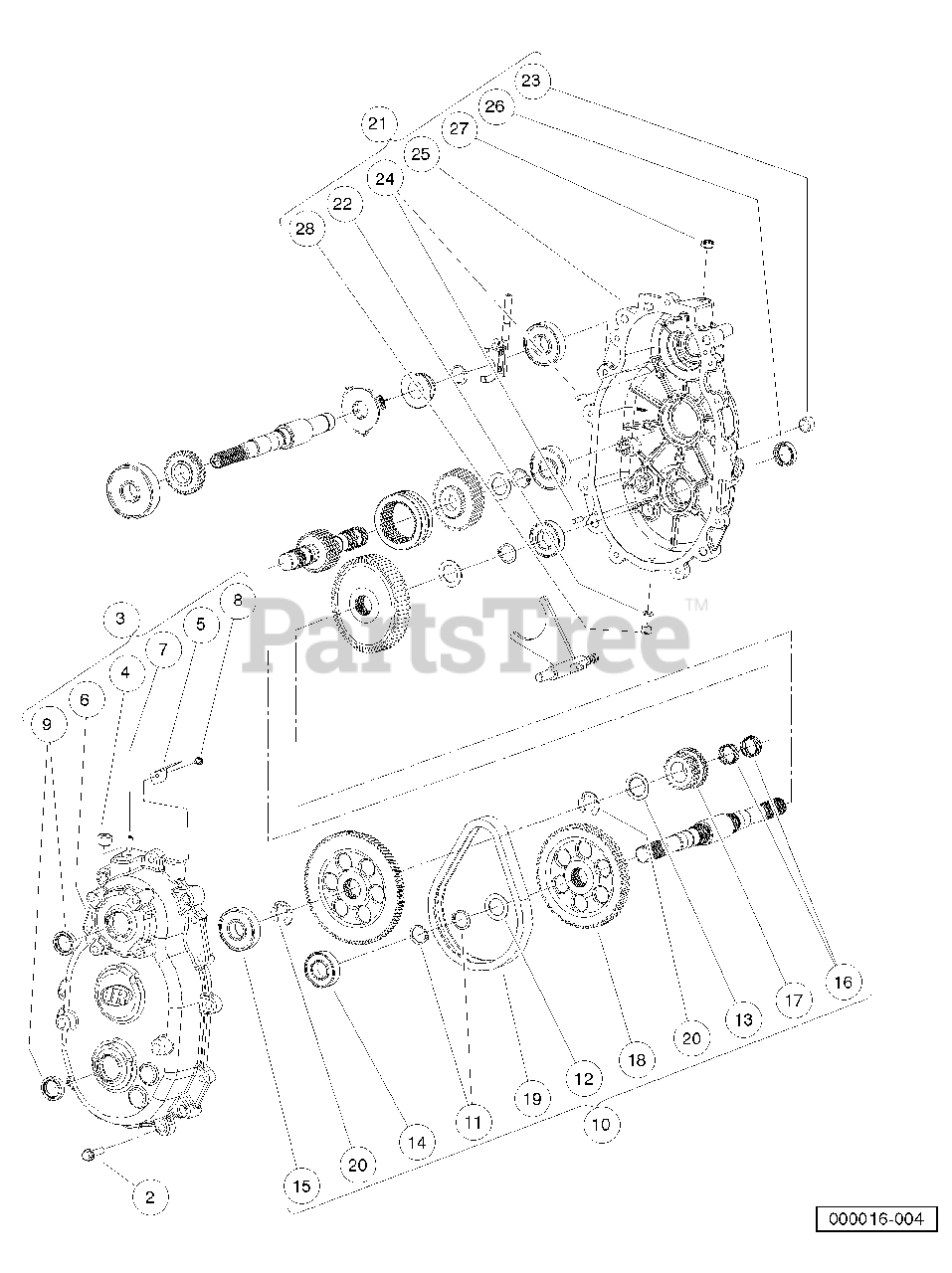

Transmission - Gasoline Vehicles (Part A) Parts Diagram

  • Title

1

Husqvarna 603003566

Transmission, Parallel Shaft

Note: (includes items 2 through 21)

$

$

Not available

2

Husqvarna 603001622

Screw,hex Flange, M8 X 35

$

$

Not available

3

Husqvarna 603001780

Asm, Gear Case, Rear

Note: (includes items 4 through 9)

$

$

Not available

4

Husqvarna 603001628

Plug, Square Skt, 1/12-14, Ptf

$

$

Not available

5

Husqvarna 603001643

Oil, Deflector

$

$

Not available

6

Gearcase, Rear

$

$

Not available

7

Husqvarna 603001653

Vent, Trans

$

$

Not available

8

Husqvarna 603001654

Screw, Tapping # 10-24 X .375

$

$

Not available

9

Husqvarna 603001655

Seal, Triple, 25 X 35 X 7.8

$

$

Not available

10

Husqvarna 603001787

Kit, Reverse Gear Repair

Note: (includes items 11 through 20)

$

$

Not available

11

Husqvarna 603001642

Ring, Retaining, Basic External

$

$

Not available

12

Husqvarna 603001645

Washer, Thrust, 1.007 X .062

$

$

Not available

13

Husqvarna 603001647

Washer, 26.231 X 39.167 X 1.57

$

$

Not available

14

Husqvarna 603001648

Bearing, Ball

$

$

Not available

15

Husqvarna 603001649

Bearing, Ball

$

$

Not available

16

Husqvarna 603001651

Bearing, Needle

$

$

Not available

17

Sprocket, 19-Tooth

$

$

Not available

18

Sprocket, 51-Tooth

$

$

Not available

19

Chain, .375p, .75 Wide, 60ptch

$

$

Not available

20

Husqvarna 603001658

Ring, Retaining, E-Ring

$

$

Not available

21

Husqvarna 603003570

Asm, Case, Gear, Front

Note: (includes items 22 through 28)

$

$

Not available

22

Husqvarna 603001624

Washer, .625 X .382 X .60

$

$

Not available

23

Husqvarna 603001628

Plug, Square Skt, 1/12-14, Ptf

$

$

Not available

24

Husqvarna 603001641

Pin, Dowel, 6 X 20

$

$

Not available

25

Gearcase, Front

$

$

Not available

26

Husqvarna 603001655

Seal, Triple, 25 X 35 X 7.8

$

$

Not available

27

Husqvarna 603001681

Seal, Dual-Lip

$

$

Not available

28

Husqvarna 603003569

Plug, 3/4-16

$

$

Not available
