HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Oil Filter Adapter (Kawasaki FH680D Gasoline Engine) Parts Diagram

4x4 Utility Vehicle

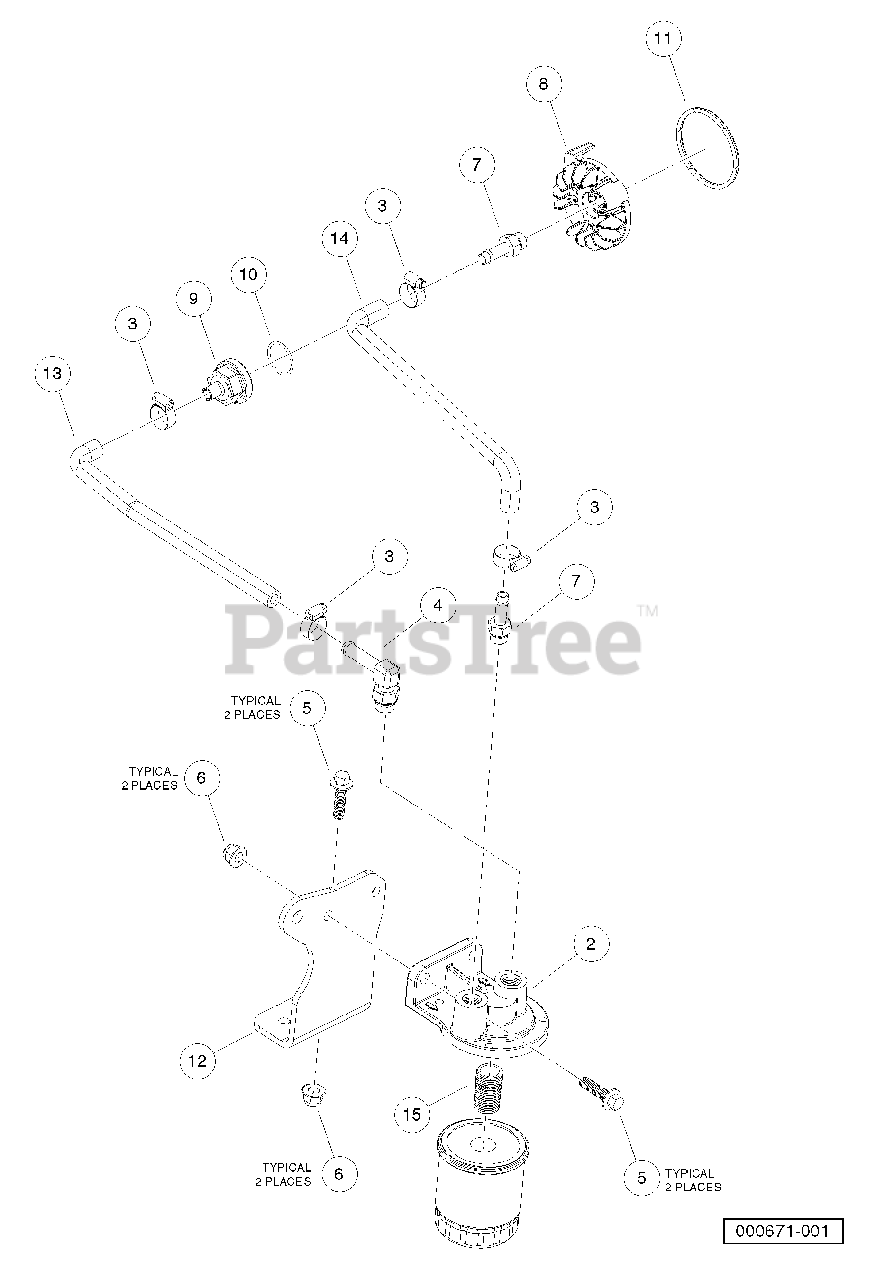

Oil Filter Adapter (Kawasaki FH680D Gasoline Engine) Parts Diagram

  • Title

1

Instl, Oil Fltr Adapter Fh680d

Note: (includes items 2 through 15)

$

$

Not available

2

Husqvarna 603000911

Bracket, Oil Filter Mount

$

$

Not available

3

Husqvarna 603001057

Clamp, Hose

$

$

Not available

4

Husqvarna 603001099

Adapter, 90, 3/8 Tube

$

$

Not available

5

Husqvarna 603003958

Bolt Flg, M8 X 1.25 X 30

$

$

Not available

6

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

7

Husqvarna 603001683

Adapter, 5/16 Hose

$

$

Not available

8

Husqvarna 603003954

Adapter, Special, Oil Filter

$

$

Not available

9

Husqvarna 603003953

Nut, Special, Hose Adapter

$

$

Not available

10

Husqvarna 603003952

O-ring, 23.52 X 1.78mm

$

$

Not available

11

Husqvarna 603003951

O-ring, Oil Filter Adapter

$

$

Not available

12

Husqvarna 603003847

Bracket, Oil Filter, Fh680d

$

$

Not available

13

Husqvarna 603003844

Hose, Formed, Oil, 5/16"

$

$

Not available

14

Husqvarna 603003843

Hose, Formed, Oil, 5/16", Ret

$

$

Not available

15

Husqvarna 603003839

Nipple, 3/4-16 X M20 X 1.5-6g

$

$

Not available
