HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Honda GX620 Gasoline Engine Mounting Parts Diagram

4x4 Utility Vehicle

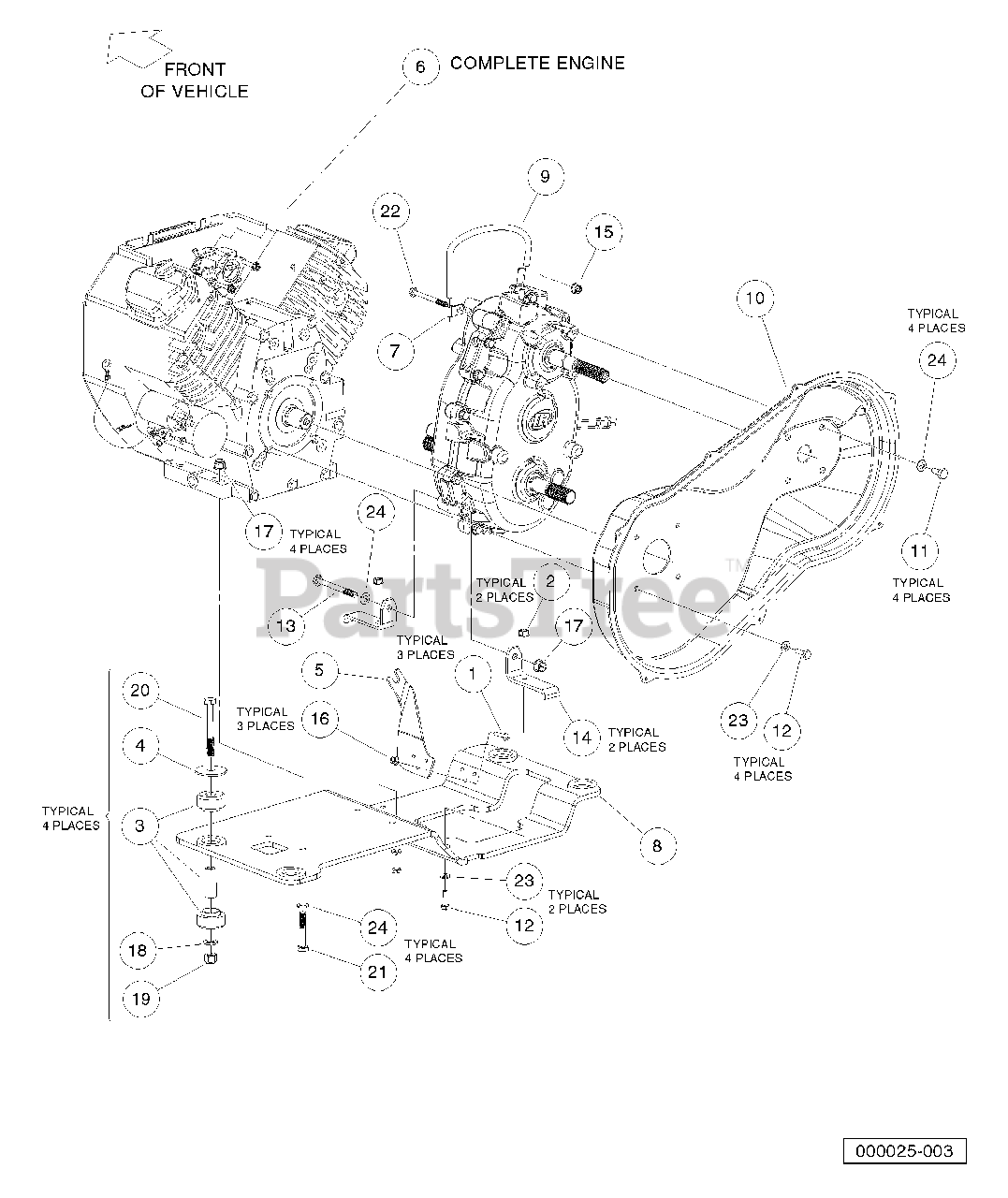

Honda GX620 Gasoline Engine Mounting Parts Diagram

  • Title

1

Husqvarna 603000157

Screw, M6-1.00 X 25mm Hex Cap

$

$

Not available

2

Husqvarna 603001298

Nut,m8,all Metal Lock

$2.49

$

In Stock, Qty 11

0

3

Husqvarna 603000908

Isolator Ring and Bushing

$

$

Not available

4

Husqvarna 603000909

Washer, Snubbing, Ring N Bush

$

$

Not available

5

Husqvarna 603000937

Bracket, FNR Trans Cable

$

$

Not available

6

Engine, Gasoline, Honda GX620

Note: (complete)

$

$

Not available

7

Husqvarna 603000966

P-Clamp, Insulated .312 In

$

$

Not available

8

Husqvarna 603000986

Plate, Eng Mtg, Weld, Honda

$

$

Not available

9

Husqvarna 603001111

Hose, Vent, Transmission

$

$

Not available

10

Husqvarna 603001114

Cover, CVT Inner, Honda

$

$

Not available

11

Husqvarna 603001165

Bolt, M10 X 1.5 X 20 Loctite

$

$

Not available

12

Husqvarna 603001166

Bolt, M8 X 1.25 X 25 Loctite

$

$

Not available

13

Husqvarna 603001169

Bolt, M10 X 1.5 X 100 Loctite

$

$

Not available

14

Husqvarna 603001186

Bracket, Transmission Mounting

$

$

Not available

15

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

16

Husqvarna 603001317

Nut Flg, M6 X 1.0 Nylon

$

$

Not available

17

Husqvarna 603001586

Nut Flg M10 X 1.5 Nylon

$

$

Not available

18

Husqvarna 603000437

Washer, M12 Hard
(Superseded to 603000447)

$

$

Not available

19

Locknut, M12x1.75 Nylon Insert

$

$

Not available

20

Husqvarna 603000440

Bolt, M12 X 1.75 X 90

$

$

Not available

21

Husqvarna 603000441

Bolt, M10 X 1.5 X 60

$

$

Not available

22

Husqvarna 603000449

Bolt, M8 X 1.25 X 80

$

$

Not available

23

Husqvarna 603000450

Washer, M8 Hard

$

$

Not available

24

Husqvarna 603000451

Washer, M10 Hard

$

$

Not available
