HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Front Body Components Parts Diagram

4x4 Utility Vehicle

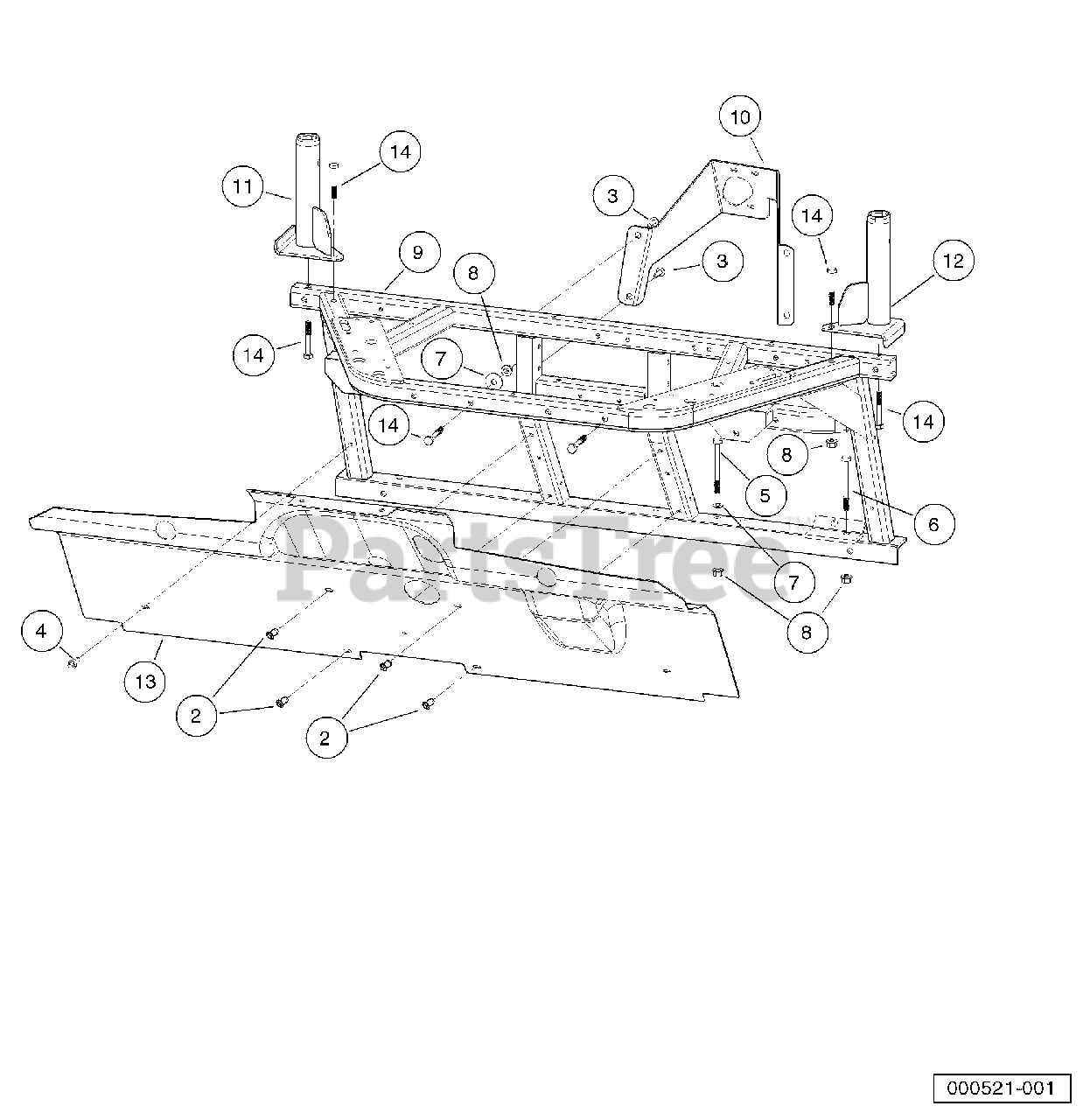

Front Body Components Parts Diagram

  • Title

1

Instl, Cowl Weldmnt/Splash Guard

Note: (includes items 2 through 14)

$

$

Not available

2

Husqvarna 603000379

Blind Rivet, Push Type

$

$

Not available

3

Husqvarna 603000869

Screw, M8X1.25X30, Hex

$

$

Not available

4

Husqvarna 603003559

M8-1.25x20 Taptite

$

$

Not available

5

Husqvarna 603001759

Bolt, M10x1.50x100

Note: (Black)

$

$

Not available

6

Husqvarna 603003432

Bolt, M10 X 1.50 X 110 Black

$

$

Not available

7

Husqvarna 603001174

Washer Hard,m10

$

$

Not available

8

Husqvarna 603001300

Nut Flg M10 X 1.5 Mech Def

$

$

Not available

9

Husqvarna 603003433

Weldment, Dash, Front

$

$

Not available

10

Husqvarna 603003434

Bracket, Column, Steering

$

$

Not available

11

Husqvarna 531308405

Weldment, Front, Base, ROPS, Right-Hand

$

$

Not available

12

Husqvarna 531308404

Weldment, Front, Base, ROPS, Left-Hand

$

$

Not available

13

Husqvarna 603004407

Guard, Splash, Gas Injection

$

$

Not available

14

Husqvarna 603000448

Bolt, M10 X 1.50 X 65

$

$

Not available
