HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Crankcase and Crankshaft (Honda GX620 Gasoline Engine) Parts Diagram

4x4 Utility Vehicle

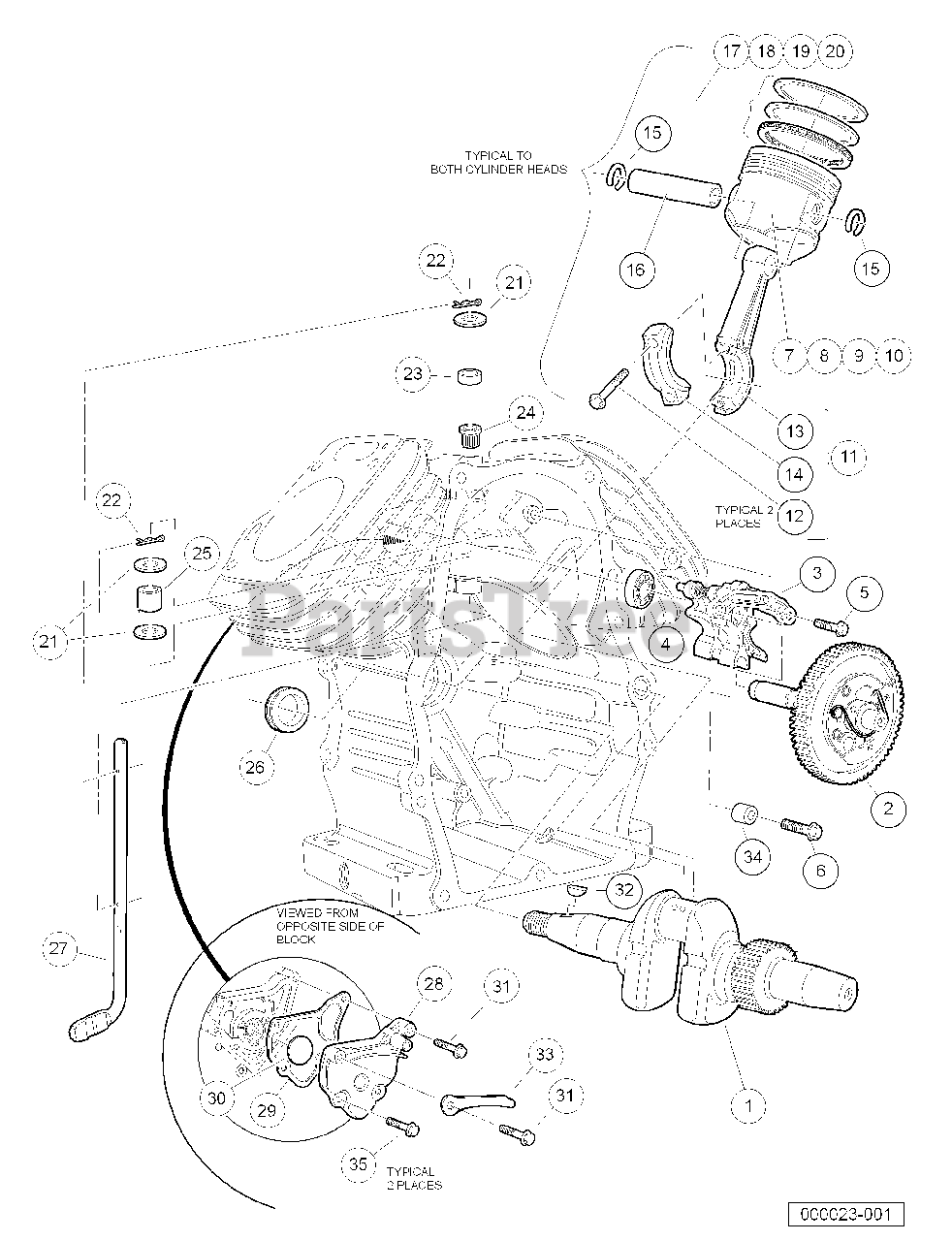

Crankcase and Crankshaft (Honda GX620 Gasoline Engine) Parts Diagram

  • Title

1

Husqvarna 603001504

Crankshaft

$

$

Not available

2

Husqvarna 603001505

Camshaft Assembly

$

$

Not available

3

Husqvarna 603001506

Lifter Assembly, Valve

$

$

Not available

4

Husqvarna 603001507

Bearing, Radial Ball, 6003

$

$

Not available

5

Husqvarna 603001508

Bolt, Flange Head, M5 X 1 X 16

$

$

Not available

6

Husqvarna 603001509

Bolt, Flange Head, M6 X 1 X 25

$

$

Not available

7

Husqvarna 603001510

Piston, Std

$

$

Not available

8

Husqvarna 603001511

Piston, Over-Sized 0.25

$

$

Not available

9

Husqvarna 603001512

Piston, Over-Sized 0.50

$

$

Not available

10

Husqvarna 603001513

Piston, 0.75

$

$

Not available

11

Husqvarna 603001514

Rod Assy., Connecting

Note: (includes items 12 through 14)

$

$

Not available

12

Husqvarna 603001521

Bolt, Connecting Rod, 6 X 37

$

$

Not available

13

Connecting Rod

$

$

Not available

14

Cap, Connecting Rod

$

$

Not available

15

Husqvarna 603001515

Clip, Piston Pin, 18mm

$

$

Not available

16

Husqvarna 603001516

Pin, Piston

$

$

Not available

17

Husqvarna 603001517

Ring Set, Piston, Std

$

$

Not available

18

Husqvarna 603001518

Ring Set, Piston, OS 0.25

$

$

Not available

19

Husqvarna 603001519

Ring Set, Piston, OS 0.50

$

$

Not available

20

Husqvarna 603001520

Ring Set, Piston, OS 0.75

$

$

Not available

21

Husqvarna 603001522

Washer, Plain, M8

$

$

Not available

22

Husqvarna 603001523

Pin, Lock, 8 Mm

$

$

Not available

23

Husqvarna 603001524

Bearing, Needle, 8 X 12.7 X 11

$

$

Not available

24

Husqvarna 603001525

Oil Seal, 8 X 14 X 5

$

$

Not available

25

Husqvarna 603000446

Bearing, Needle, 8 X 12 X 10

$

$

Not available

26

Husqvarna 603001527

Oil Seal, 38 X 58 X 9

$

$

Not available

27

Husqvarna 603001528

Shaft, Governor Arm

$

$

Not available

28

Husqvarna 603001529

Cover, Breather

$

$

Not available

29

Husqvarna 603001530

Gasket, Breather Cover

$

$

Not available

30

Husqvarna 603001531

Valve, Breather

$

$

Not available

31

Husqvarna 603001532

Bolt, Flange Head, M6 X 1 X 32

$

$

Not available

32

Husqvarna 603001558

Key, Special Woodruff, 25 X 18

$

$

Not available

33

Husqvarna 603001582

Clamp, Wire

$

$

Not available

34

Husqvarna 603001695

Pin A, Dowel

$

$

Not available

35

Husqvarna 603001696

Bolt, Flange Head, 6 X 16

$

$

Not available
