HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2007-01) Brake Pedal Assembly Parts Diagram

4x4 Utility Vehicle

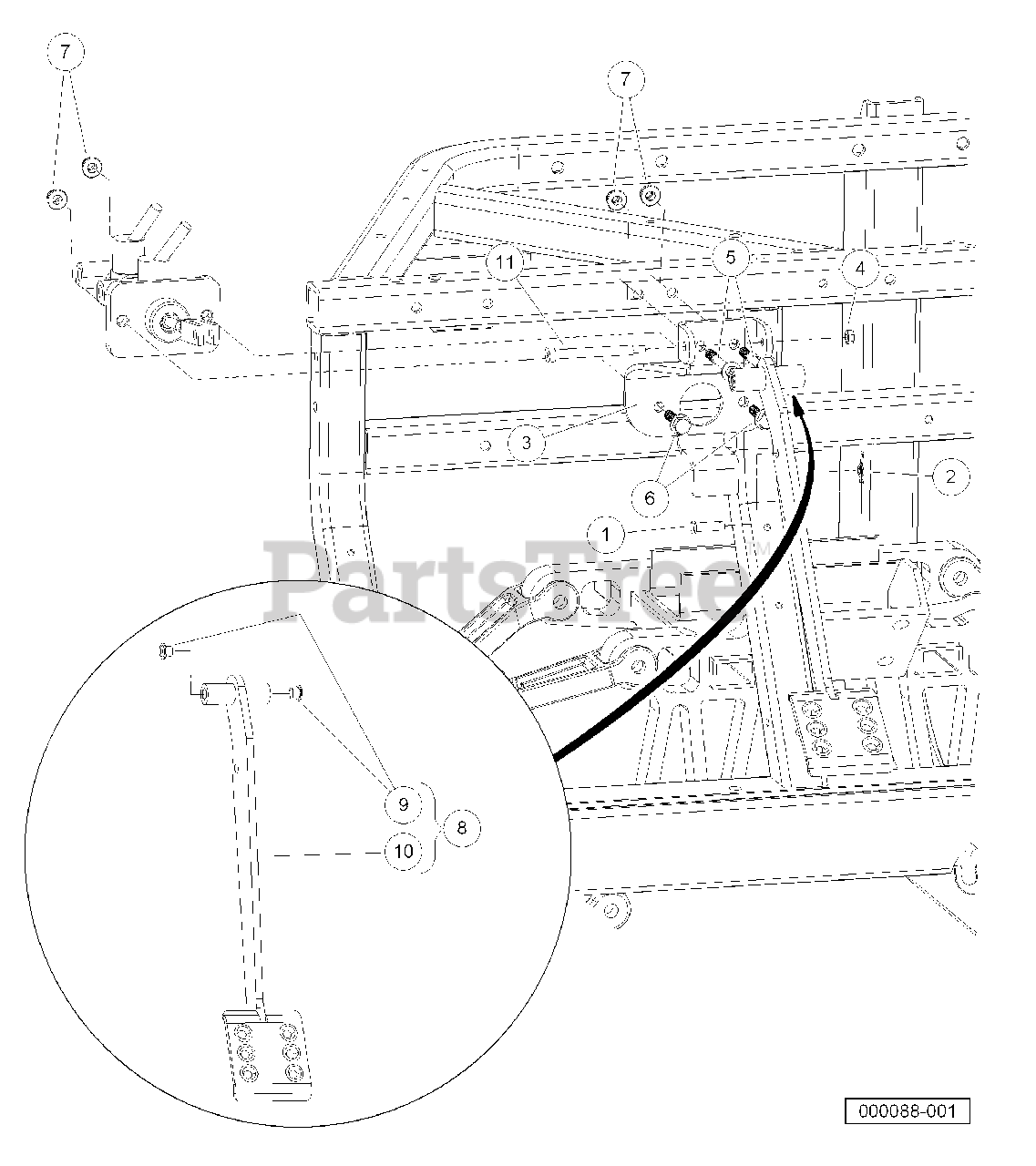

Brake Pedal Assembly Parts Diagram

  • Title

1

Husqvarna 603000454

Clevis Pin, 5/16 X 1

$

$

Not available

2

Husqvarna 603000798

Pin, Rue

$

$

Not available

3

Husqvarna 603000935

Bracket, Pedal, Brake

$

$

Not available

4

Husqvarna 603001305

Nut M6x1 Mech Def Center

$3.49

$

In Stock, only 1 left!

0

5

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

6

Husqvarna 603001307

Bolt Flanged Head, M8 X 1.25 X 35

$

$

Not available

7

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

8

Asm, Pedal, Brake, Hung

Note: (includes items 9 and 10)

$

$

Not available

9

Husqvarna 603001055

Bushing, Greaseless

$

$

Not available

10

Husqvarna 603001322

Weldment, Pedal, Brake, Hung

$

$

Not available

11

Husqvarna 603003840

Bolt, Shoulder, M8 X 70, Hc

$

$

Not available
