HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Shrouds and Brackets Parts Diagram

4x4 Utility Vehicle

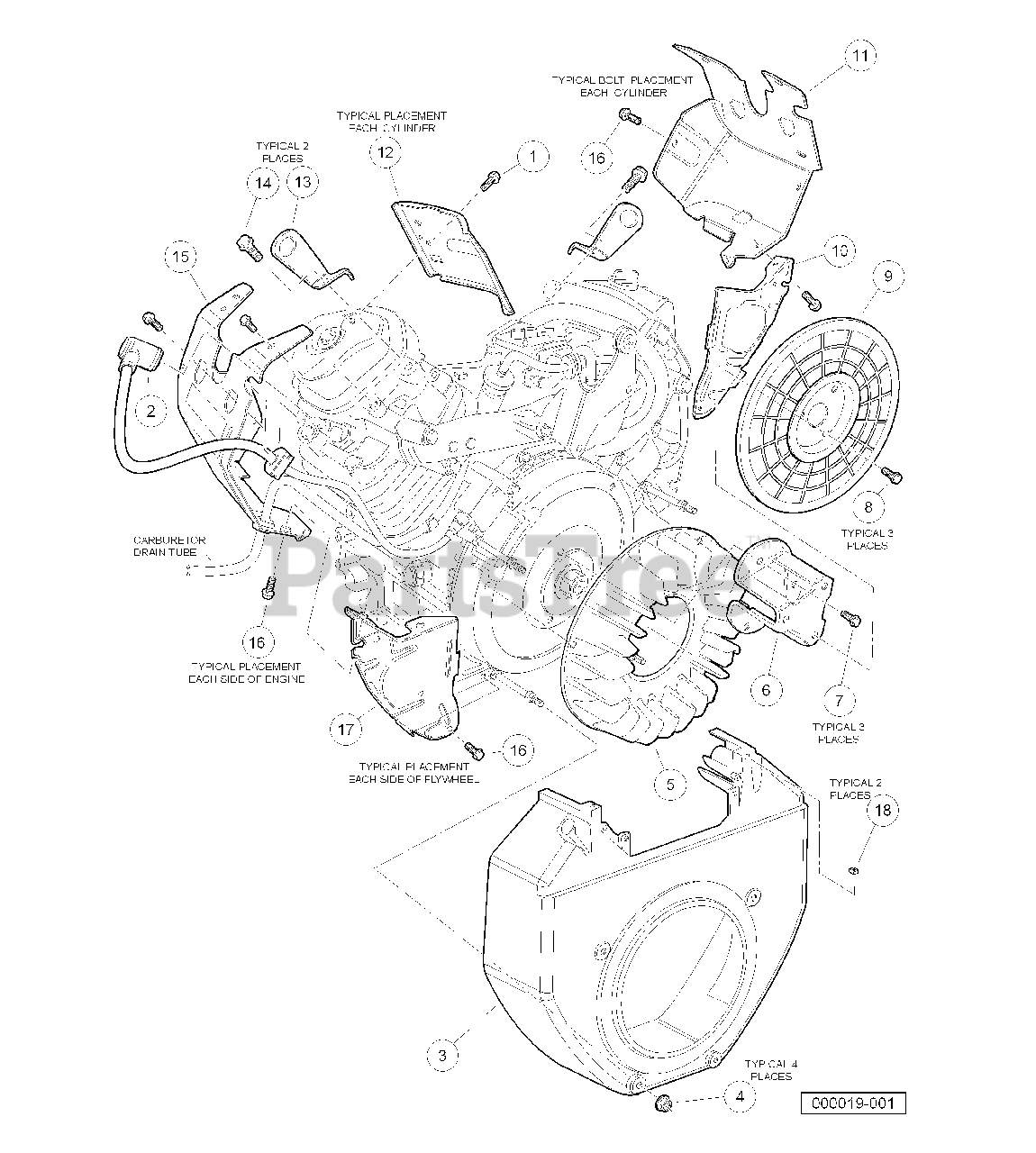

Shrouds and Brackets Parts Diagram

  • Title
1

Husqvarna 603001483

Bolt, Flange Head, M6 X 11 X 4

$

$

Not available

2

Husqvarna 603001568

Cap Assy, Noise Suppressor

$

$

Not available

3

Husqvarna 603001569

Cover, Fan, Bright Red

$

$

Not available

4

Husqvarna 603001570

Nut, Flange, M6

$

$

Not available

5

Husqvarna 603001571

Fan, Cooling

$

$

Not available

6

Husqvarna 603001572

Holder, Screen Grid

$

$

Not available

7

Husqvarna 603001573

Bolt, Flange Head, M8 X 1.25 X 16

$

$

Not available

8

Husqvarna 603001574

Bolt, Flange Head, M6 X 1 X 12

$

$

Not available

9

Husqvarna 603001575

Grid Screen, PTO

$

$

Not available

10

Husqvarna 603001576

Plate, R Side

$

$

Not available

11

$

$

Not available

12

Husqvarna 603001578

Shroud, Head

$

$

Not available

13

Husqvarna 603001579

Hanger, Engine

$

$

Not available

14

Husqvarna 603001580

Bolt, Flange Head, M8 X 1.25 X 20

$

$

Not available

15

$

$

Not available

16

Husqvarna 603001583

Bolt, Flange Head, M6 X 1 X 12

$

$

Not available

17

Husqvarna 603001584

Plate, Left Side

$

$

Not available

18

Husqvarna 603001778

Nut, Square, 5mm

$

$

Not available
