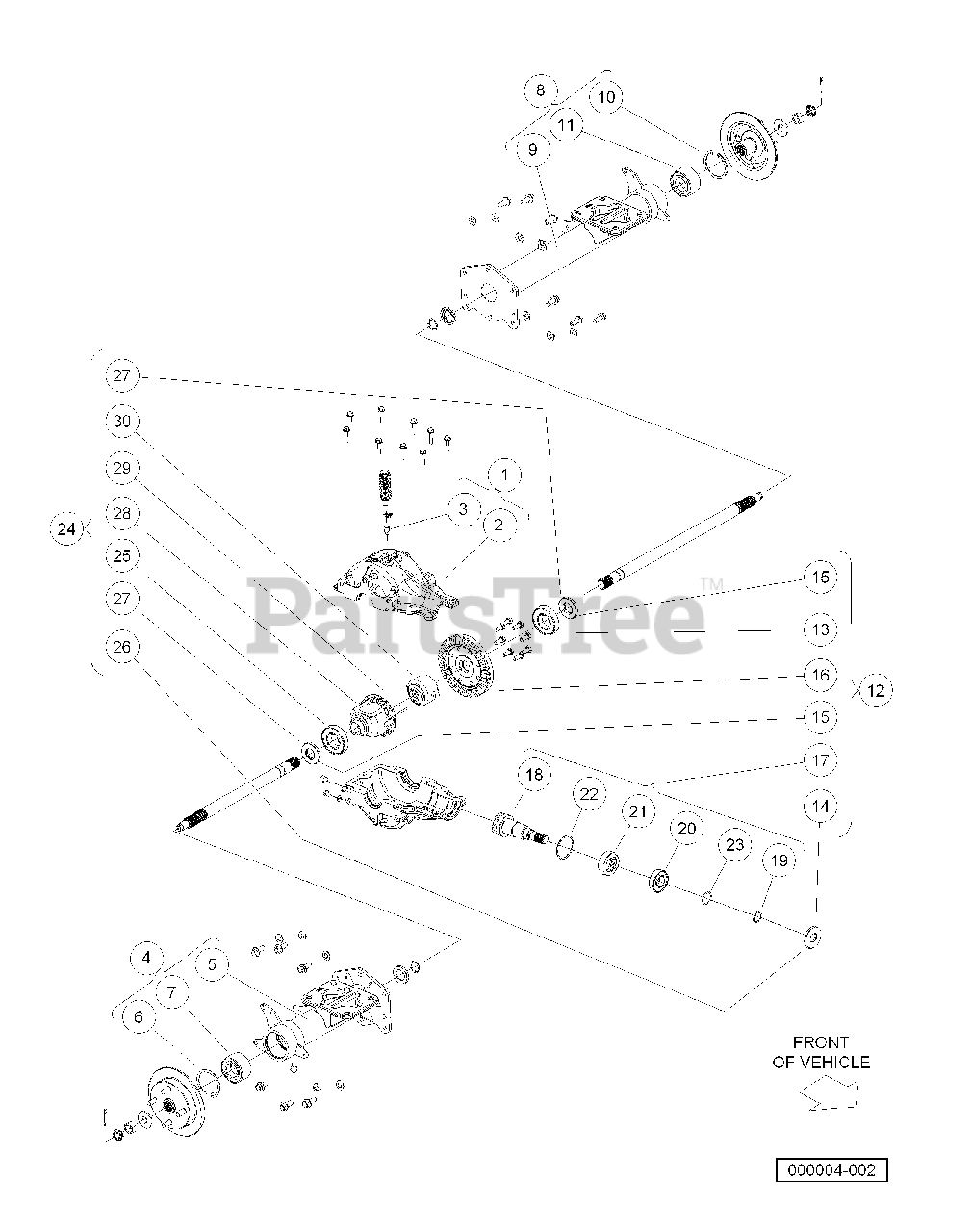

HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Rear Differential (Part B) Parts Diagram

4x4 Utility Vehicle

Rear Differential (Part B) Parts Diagram

  • Title
1

Husqvarna 603001788

Asm, Gearcase, Upper

Note: (includes items 2 and 3)

$

$

Not available

2

Gearcase, Upper, Machined

$

$

Not available

3

Husqvarna 603001626

Vent, Top, Upper Housing

$

$

Not available

4

Husqvarna 603001789

Asm, Axle Tube, RH

Note: (includes items 5 through 7)

$

$

Not available

5

Weldment, Axle Tube Rh

$

$

Not available

6

Husqvarna 603001118

Ring, Retaining, Internal

$

$

Not available

$

$

Not available

8

Husqvarna 603001790

Asm, Axle Tube, LH

Note: (includes items 9 through 11)

$

$

Not available

9

Weldment, Axle Tube Lh

$

$

Not available

10

Husqvarna 603001118

Ring, Retaining, Internal

$

$

Not available

11

$

$

Not available

12

Husqvarna 603001791

Kit, Rear Axle Gear Repair

Note: (includes items 13 through 17)

$

$

Not available

13

Husqvarna 603001122

Bearing, Ball

$

$

Not available

14

Husqvarna 603001124

Seal, Dual-Lip 25x 62x 7tc

$

$

Not available

15

Husqvarna 603001125

Seal, Dual-Lip 30x 62x 8tc

$

$

Not available

16

Gear, Ring, 33-Tooth

$

$

Not available

17

Asm, Pinion W/ Bearings

Note: (includes items 18 through 23)

$

$

Not available

18

Pinion, I0t Machined

$

$

Not available

19

Husqvarna 603001119

Ring, Retaining, External

$

$

Not available

20

Husqvarna 603001120

Bearing, Ball

$

$

Not available

21

Husqvarna 603001121

Bearing, Needle, Drawn Shell

$

$

Not available

22

Husqvarna 603001625

Washer, 2.625 X 2.367 X .06

$

$

Not available

23

Husqvarna 603001631

Shim, 1.50 X 1.189 X .008

$13.99

$

In Stock, only 1 left!

0

24

Husqvarna 603001779

Asm, Differential & Carrier

Note: (includes items 25 through 30)

$

$

Not available

25

Husqvarna 603001122

Bearing, Ball

$

$

Not available

26

Husqvarna 603001124

Seal, Dual-Lip 25x 62x 7tc

$

$

Not available

27

Husqvarna 603001125

Seal, Dual-Lip 30x 62x 8tc

$

$

Not available

28

Husqvarna 603003574

Housing, Differential, Mach

$

$

Not available

29

Husqvarna 603004008

Pin, Dowel, 4 X 35

$

$

Not available

30

Husqvarna 603003575

Asm, Locker, Nongrease/Spacers
(Superseded to 580933001)

$

$

Not available
