HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Park Brake Pedal Assembly Parts Diagram

4x4 Utility Vehicle

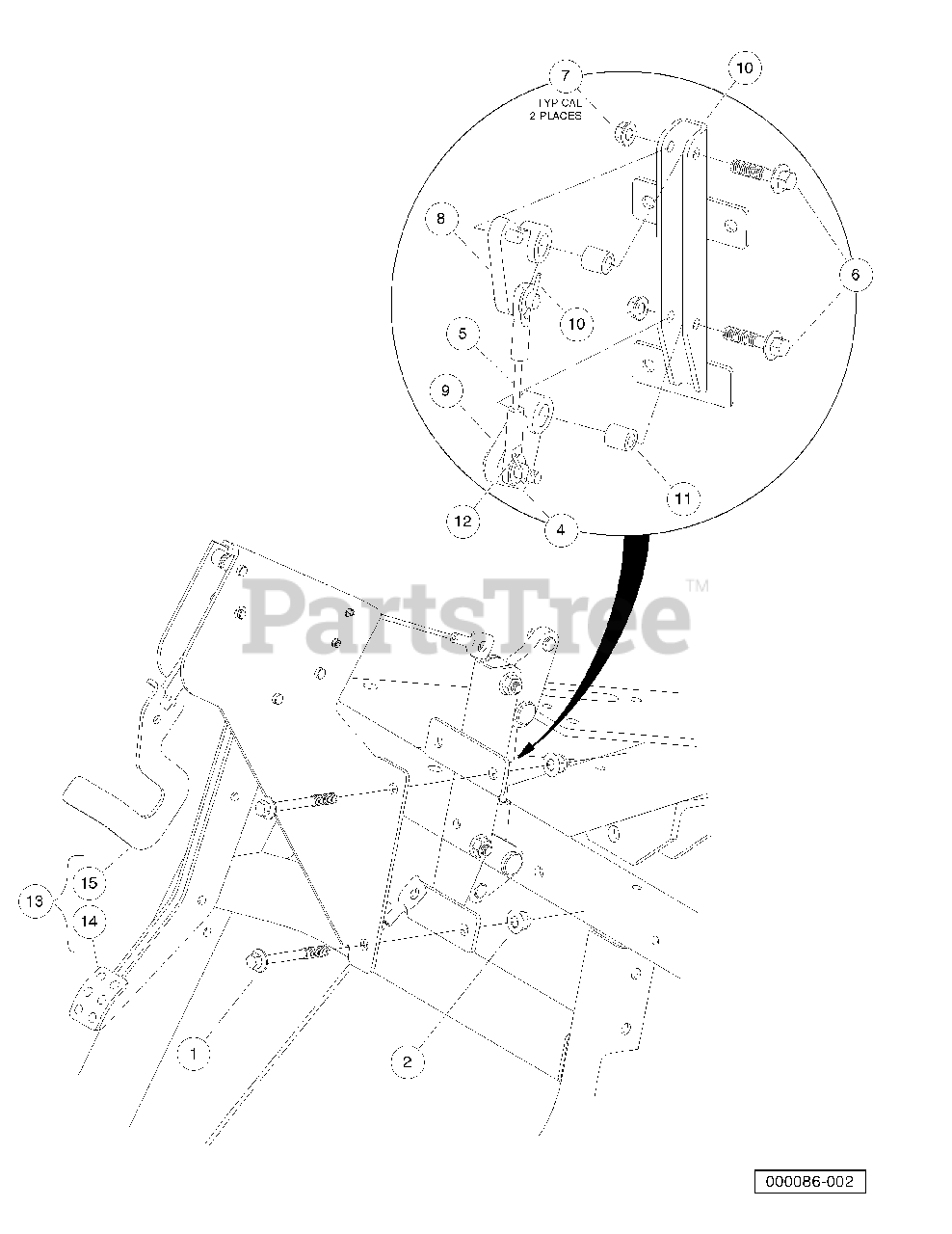

Park Brake Pedal Assembly Parts Diagram

  • Title

1

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

2

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

3

Husqvarna 603003525

Asm, Sub, Bracket, Park Brake

Note: (includes items 4 through 12)

$

$

Currently unavailable

4

Husqvarna 603003522

Washer, Flat, 3/8, Blk Fin

$

$

Not available

5

Husqvarna 531307110

Cable, Crank, Bell

$

$

Not available

6

Husqvarna 531307107

Bolt Flg, M8x1.25 X 35, Gr10.9

$

$

Not available

7

Husqvarna 531307113

Nut Flg M8 X 1.25 Gr 10

$

$

Not available

8

Husqvarna 603003523

Asm, Bellcrank, Upper

$

$

Currently unavailable

9

Husqvarna 603003524

Asm, Bellcrank, Lower

$

$

Not available

10

Husqvarna 603004137

Brkt, Bellcrank, Prk Brk, Awd

$

$

Not available

11

Husqvarna 603004138

Spacer, Pivot, Park Brk, Awd

$

$

Not available

12

Husqvarna 603000063

Pin, 3/32 X 1.00 Sq Cut Cotter

$

$

Not available

13

Husqvarna 531307375

Asm, Pedal, Brake, Hard

Note: (includes items 14 and 15)

$

$

Not available

14

Pedal, Brake, Park

$

$

Not available

15

Husqvarna 603003526

Handle, Release, Park Brake

$

$

Not available
