HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Maintenance and Service Tools Elec. (Part A) Parts Diagram

4x4 Utility Vehicle

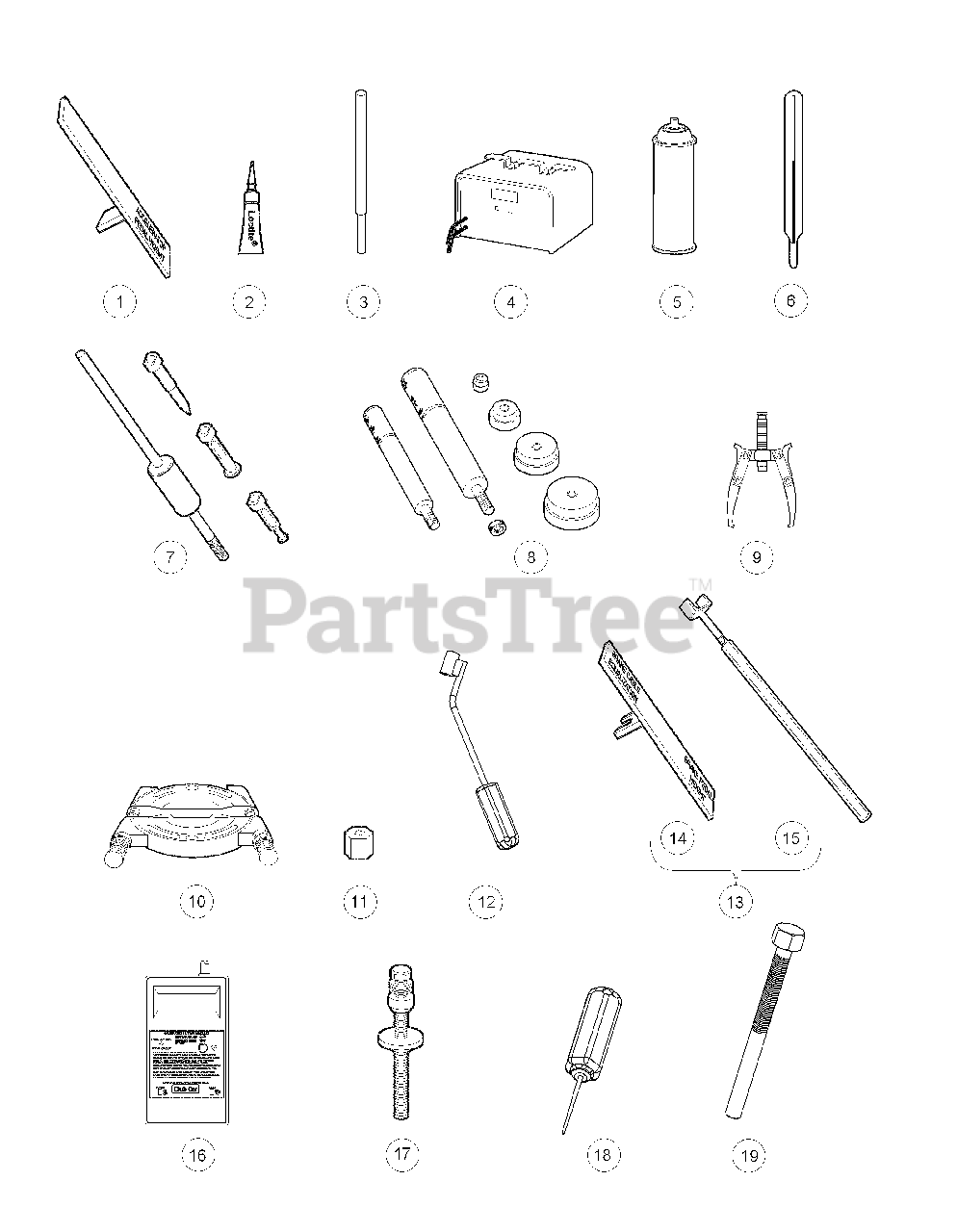

Maintenance and Service Tools Elec. (Part A) Parts Diagram

  • Title

1

Husqvarna 603001832

Accelerator Pedal Adjustment Tool

$

$

Not available

2

Husqvarna 603001833

Adhesive, Guide Ring, 3-Gram Tube

$

$

Not available

3

Husqvarna 603001834

Arbor

$

$

Not available

4

Husqvarna 603001835

Battery Discharge Machine, 36/48 Volt

$

$

Not available

5

Husqvarna 603000003

Battery Terminal Protector Spray

$

$

Not available

6

Husqvarna 603001837

Battery Thermometer

$

$

Not available

7

Husqvarna 603001838

Bearing and Oil Seal Remover Assembly

$

$

Not available

8

Husqvarna 603001839

Bearing Driver Set

$

$

Not available

9

Husqvarna 603001840

Bearing Puller

$

$

Not available

10

Husqvarna 603001841

Bearing Puller Wedge Attachment

$

$

Not available

11

Husqvarna 603001842

Brake Adjustment Tool

Note: (used only on vehicles with manually adjusted mechanical brakes)

$

$

Not available

12

Husqvarna 603001843

Brake Cable Release Tool

$136.99

$

In Stock, only 1 left!

0

13

Husqvarna 603001844

Brake Pedal Adjustment Tool Kit

Note: (includes items 14 and 15)

$

$

Currently unavailable

14

Brake Pedal Adjustment Tool

$

$

Not available

15

Brake Pedal Tension Tool

$

$

Not available

16

Husqvarna 603001846

Calibration Test Module

$

$

Not available

17

Husqvarna 603001847

Cam Installation Tool

$

$

Not available

18

Husqvarna 603001848

Charger Bezel Tool

$

$

Not available

19

Husqvarna 603001849

Clutch Removal Tool

Note: (for 4x4 vehicles)

$

$

Not available
