HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Ignition Components and Flywheel Parts Diagram

4x4 Utility Vehicle

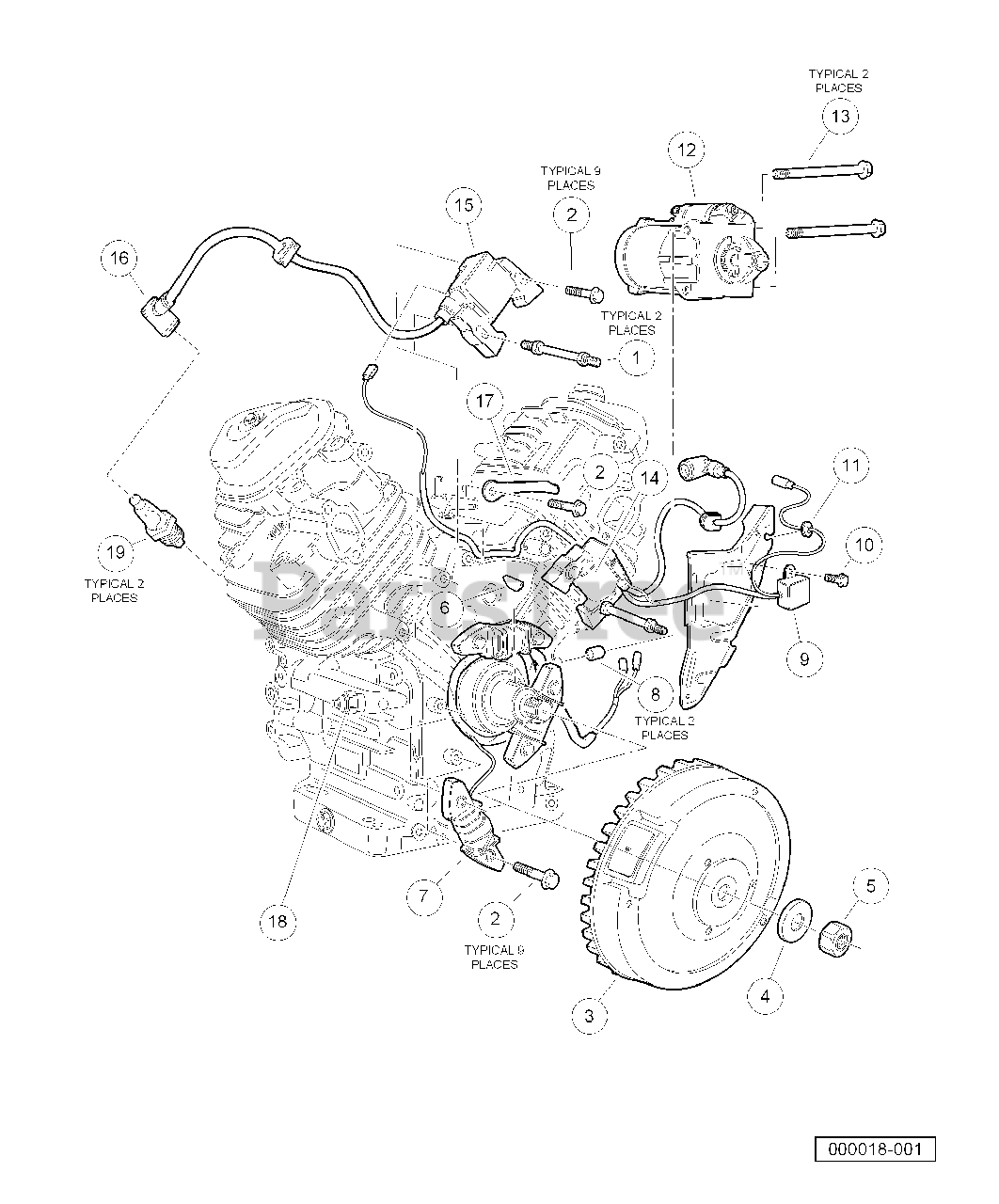

Ignition Components and Flywheel Parts Diagram

  • Title

1

Husqvarna 603001462

Stud, Engine

$

$

Not available

2

Husqvarna 603001532

Bolt, Flange Head, M6 X 1 X 32

$

$

Not available

3

Husqvarna 603001555

Flywheel

$

$

Not available

4

Husqvarna 603003593

Washer, M20

$

$

Not available

5

Husqvarna 603001556

Nut, Flange, M20

$

$

Not available

6

Husqvarna 603001558

Key, Special Woodruff, 25 X 18

$

$

Not available

7

Husqvarna 603001559

Coil Assy, Charge, 12-Volt, 20-Amp

$

$

Not available

8

Husqvarna 603001560

Pin, Dowel, 10x12

$

$

Not available

9

Husqvarna 603001561

Diode Assembly

$

$

Not available

10

Husqvarna 603001562

Bolt, Flange Head, M6 X 1 X 8

$

$

Not available

11

Husqvarna 603001563

Grommet, Tool

$

$

Not available

12

Husqvarna 603001564

Motor, Starter

$

$

Not available

13

Husqvarna 603001565

Bolt, Flange Head, M8 X 1.25 X 110

$

$

Not available

14

Husqvarna 603001566

Coil Assy, R, Ignition

$

$

Not available

15

Husqvarna 603001567

Coil Assy, L, Ignition

$

$

Not available

16

Husqvarna 603001568

Cap Assy, Noise Suppressor

$

$

Not available

17

Husqvarna 603001582

Clamp, Wire

$

$

Not available

18

Husqvarna 603001934

Switch, Oil Pressure

$

$

Not available

19

Husqvarna 603003770

Spark Plug, BPR2ES

$3.99

$

In Stock, only 4 left!
