HUV 4421 G - Husqvarna 4x4 Utility Vehicle (2006-11) Cylinder Head Parts Diagram

4x4 Utility Vehicle

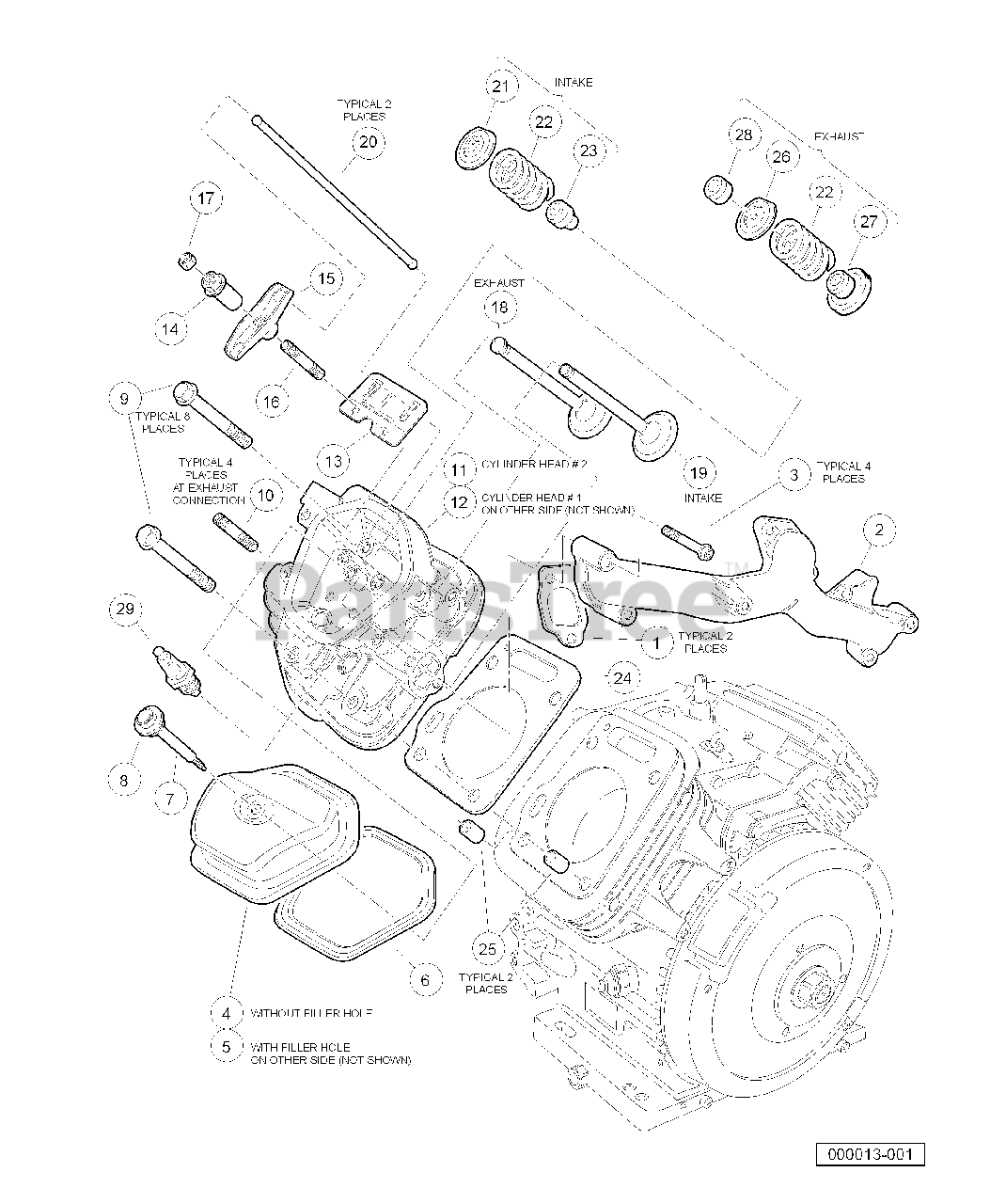

Cylinder Head Parts Diagram

  • Title

1

Husqvarna 603001484

Gasket, Intake Manifold

$

$

Not available

2

Husqvarna 603001485

Manifold, Inlet

$

$

Not available

3

Husqvarna 603001486

Bolt, Socket, M8 X 1.25 X 45

$

$

Not available

4

Husqvarna 603001533

Cover, Head

$

$

Not available

5

Husqvarna 603001534

Cover, Head Filler

$

$

Not available

6

Husqvarna 603001535

Gasket, Cylinder Head Cover

$

$

Not available

7

Husqvarna 603001536

Bolt, Head Cover

$

$

Not available

8

Husqvarna 603001537

Washer, Head Cover

$

$

Not available

9

Husqvarna 603001538

Bolt, Flange Head, M10 X 1.5 X 80

$

$

Not available

10

Husqvarna 603001539

Bolt, Stud, M8x22

$

$

Not available

11

Husqvarna 603001540

Cylinder Head, #2

$

$

Not available

12

Husqvarna 603001541

Cylinder Head, #1

$

$

Not available

13

Husqvarna 603001542

Plate, Push Rod Guide

$

$

Not available

14

Husqvarna 603001543

Pivot, Rocker Arm

$

$

Not available

15

Husqvarna 603001544

Arm, Valve Rocker

$

$

Not available

16

Husqvarna 603001545

Bolt, Pivot, M8

$

$

Not available

17

Husqvarna 603001546

Nut, Pivot Adj

$

$

Not available

18

Husqvarna 603001547

Valve, Ex

$

$

Not available

19

Husqvarna 603001548

Valve, In

$

$

Not available

20

Husqvarna 603001549

Rod, Push

$

$

Not available

21

Husqvarna 603001550

Retainer, In Valve Spring

$

$

Not available

22

Husqvarna 603001551

Spring, Valve

$

$

Not available

23

Husqvarna 603001552

Seal, Valve Stem

$

$

Not available

24

Husqvarna 603001553

Gasket, Cylinder Head

$

$

Not available

25

Husqvarna 603001554

Pin A, Dowel ,12 X 20

$

$

Not available

26

Husqvarna 603001685

Retainer, Ex Valve Spring

$

$

Not available

27

Husqvarna 603001686

Seat, Valve Spring

$

$

Not available

28

Husqvarna 603001687

Rotator, Valve

$

$

Not available

29

Husqvarna 603003770

Spark Plug, BPR2ES

$3.99

$

Usually ships in 3-10 days
