HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Steel Skid Plate Parts Diagram

4x4 Utility Vehicle, Diesel

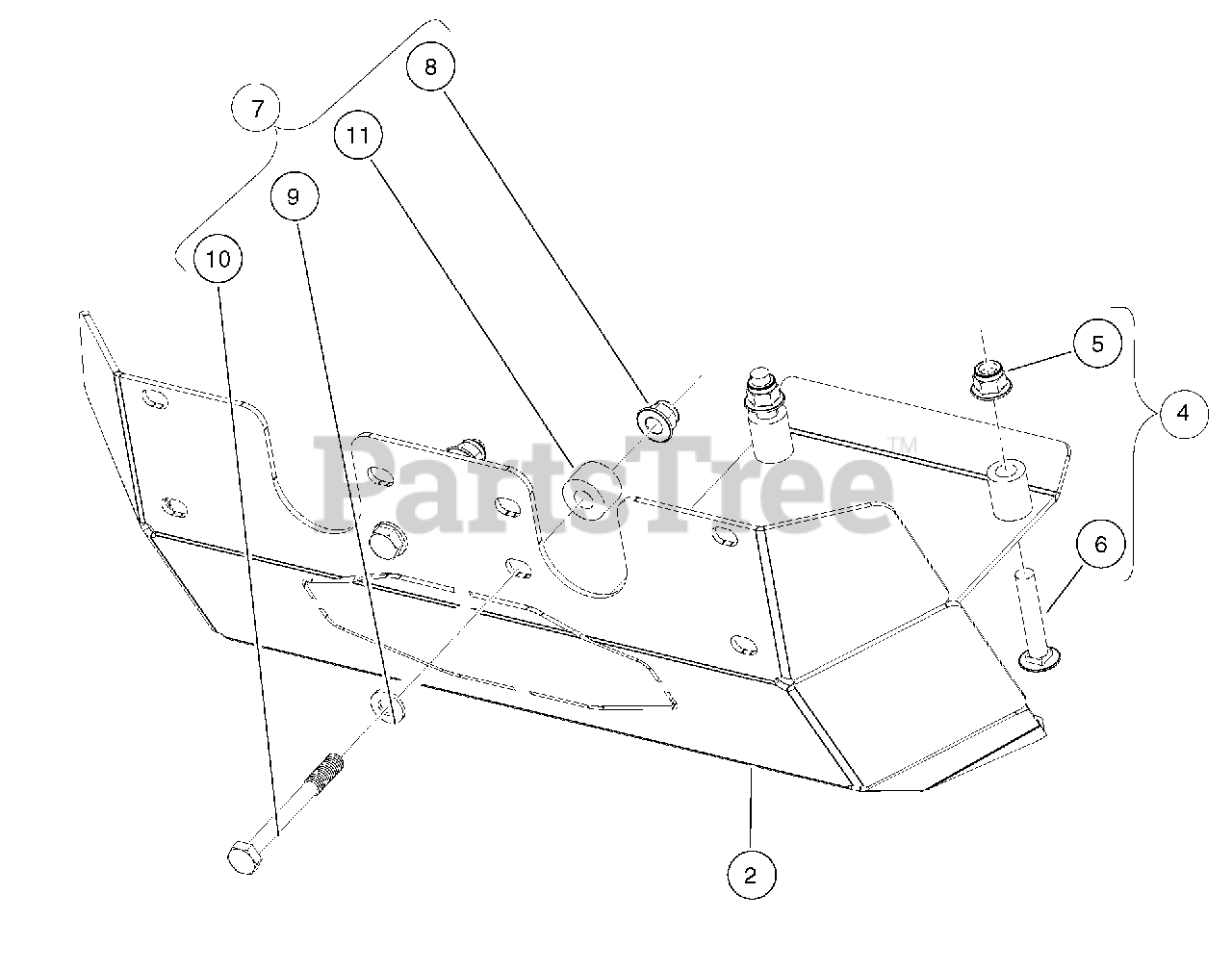

Steel Skid Plate Parts Diagram

  • Title

1

Husqvarna N/A

Kit, Skidplate, Front, Steel

Note: (includes items 2 through 7)

$

$

Not available

2

Husqvarna AM1210002

Skid Plate, Front, Steel

$

$

Currently unavailable

3

Husqvarna AM1211101

Instructions, Front Skidplate

$

$

Currently unavailable

4

Husqvarna AM1215701

Kit, Hardware, Skidplate, Front, A

Note: (includes items 5 and 6)

$

$

Currently unavailable

5

Husqvarna 102670701

Nut Flg M10 X 1.5 Nylon

$

$

Currently unavailable

6

Husqvarna AM1210801

Bolt, Carriage, M10x1.5x55

$

$

Currently unavailable

7

Husqvarna AM1215801

Kit, Hardware, Skidplate, Front, B

Note: (includes items 8 through 11)

$

$

Currently unavailable

8

Husqvarna 102670701

Nut Flg M10 X 1.5 Nylon

$

$

Currently unavailable

9

Husqvarna 102718101

Washer, Hard, M10, Zn-Ni/Blk

$

$

Currently unavailable

10

Husqvarna 102719301

Bolt, M10 X 1.50 X 90, Loctite

$

$

Currently unavailable

11

Husqvarna AM1211401

Spacer, 17mm Long, Skidplate

$

$

Currently unavailable
