HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Clutch Cover (Sealed) Parts Diagram

4x4 Utility Vehicle, Diesel

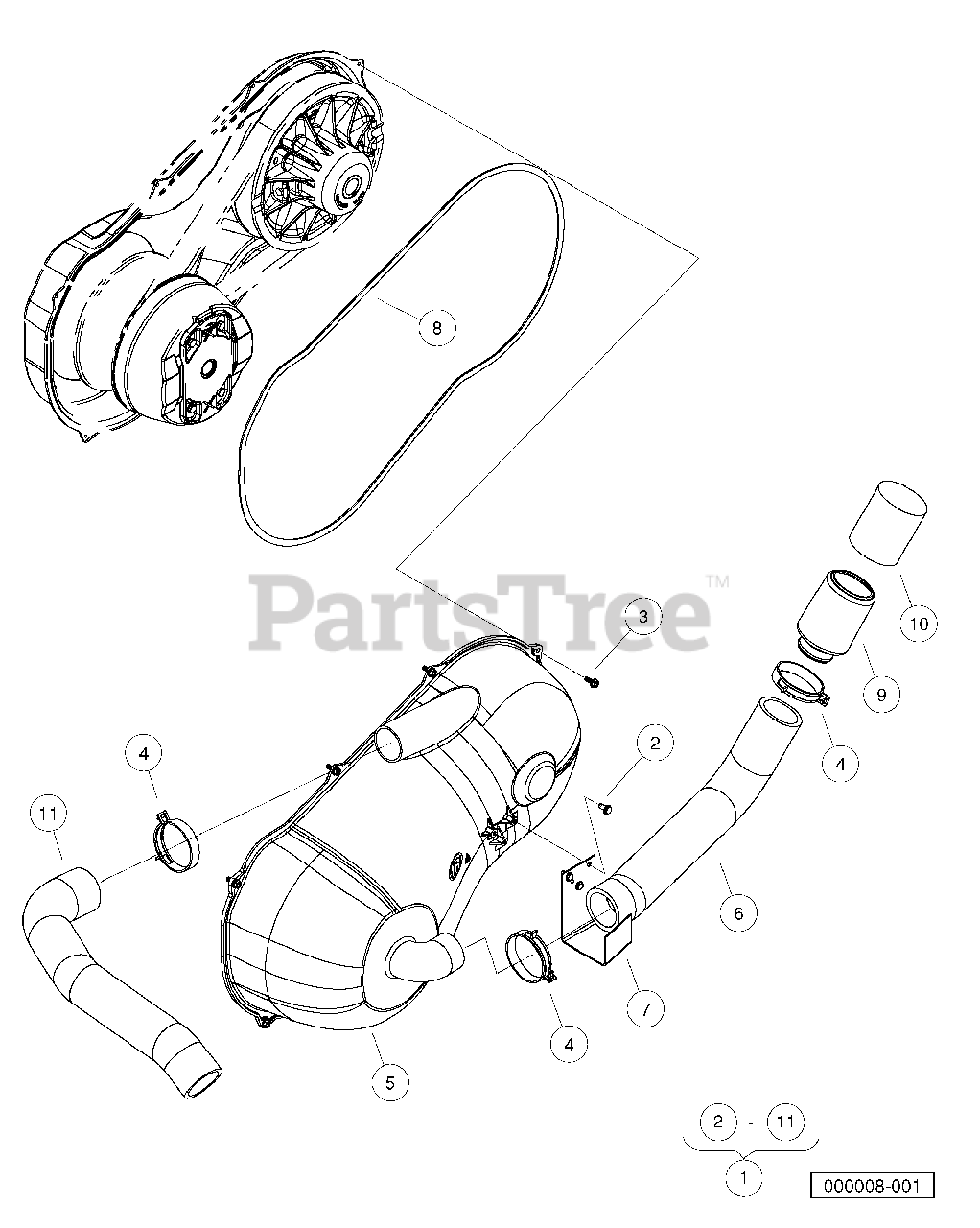

Clutch Cover (Sealed) Parts Diagram

  • Title

1

Husqvarna 102616003

Kit, Sealed CVT Cover

Note: (includes items 2 through 11)

$

$

Currently unavailable

2

Husqvarna 101856102

Screw, 1/4-15 X 1.50 Hi-lo Hex

$

$

Currently unavailable

3

Husqvarna 102296716

Screw, M6 X 16 Tt Hx Fl Hd

$

$

Currently unavailable

4

Husqvarna 102411210

Clamp, Hose, Ctb 64mm

$

$

Currently unavailable

5

Husqvarna 102414501

Cover, CVT Outer

$

$

Currently unavailable

6

Husqvarna 102481001

Hose, Inlet, Cover, CVT

$

$

Currently unavailable

7

Husqvarna 102481201

Bracket, Inlet, Cover, CVT

$

$

Currently unavailable

8

Husqvarna 102481301

Gasket, Cover, CVT

$

$

Currently unavailable

9

Husqvarna 102616101

Cap, Inlet, Cover, CVT

$

$

Currently unavailable

10

Husqvarna 102628001

Filter, Inlet, Cover, CVT

$

$

Currently unavailable

11

Husqvarna 103320601

Hose, Outlet, Cvt

$

$

Currently unavailable
