HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2008-01) Valves And Rockers Arms Parts Diagram

4x4 Utility Vehicle, Diesel

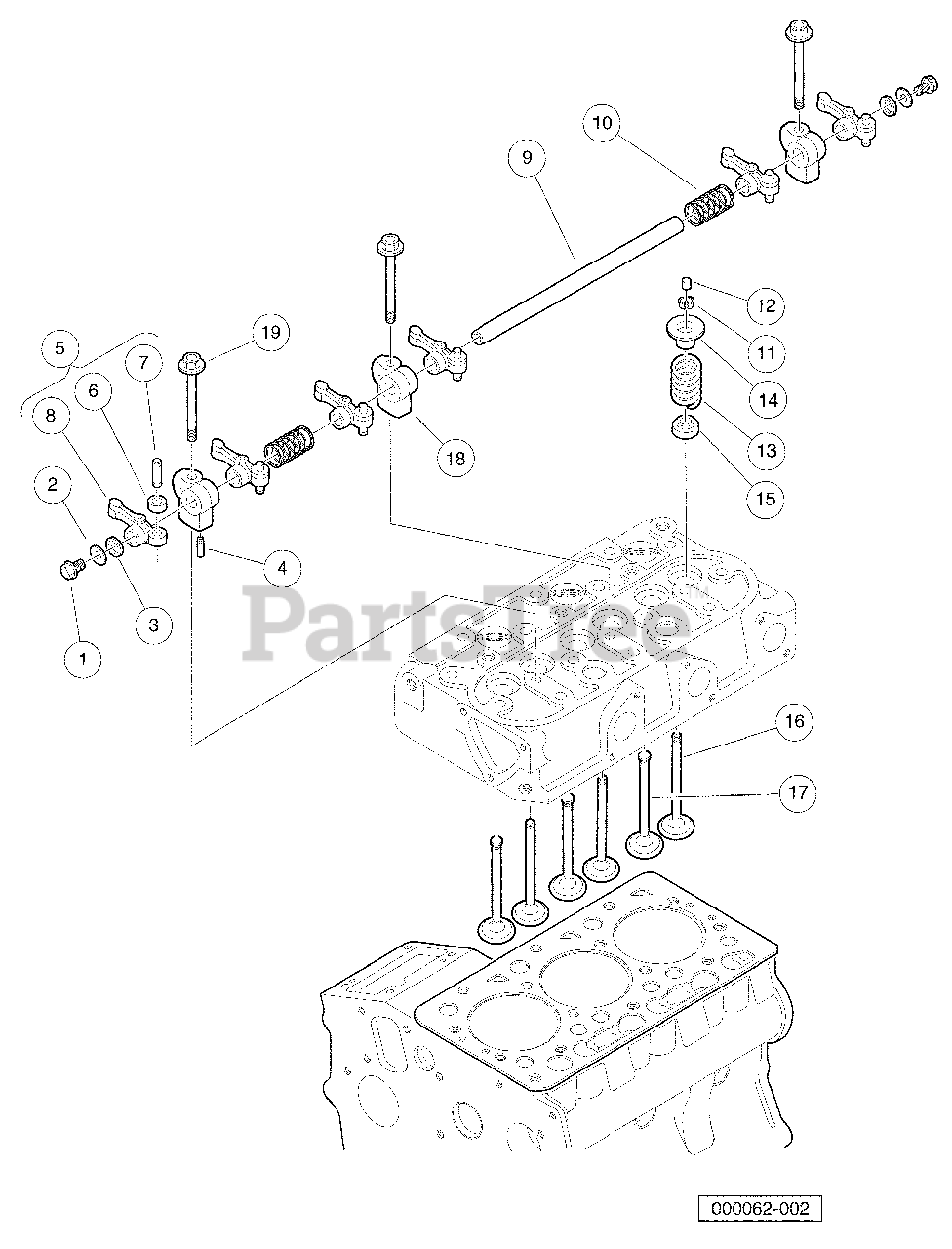

Valves And Rockers Arms Parts Diagram

  • Title
1

Husqvarna 603001422

Bolt, M6 X 1 X 8

$

$

Not available

2

Husqvarna 603001434

Washer, D722, Plain, Rocker

$

$

Not available

3

Husqvarna 603001436

Washer, Rocker Arm

$

$

Not available

4

Husqvarna 603001438

Pin, Spring, D722, Rocker

$

$

Not available

5

Husqvarna 603001440

Assy Rocker Arm

Note: (includes items 6 through 8)

$

$

Not available

6

$

$

Not available

7

Husqvarna 603001437

Screw-Adjusting

$

$

Not available

8

Arm, Rocker

$

$

Not available

9

Husqvarna 603001442

Shaft, Rocker Arm

$

$

Not available

10

Husqvarna 603001443

Spring, Rocker Arm

$

$

Not available

11

Husqvarna 603001445

Collet, Valve Spring, Set.

$

$

Not available

12

Husqvarna 603001446

Cap, Valve, D722

$

$

Not available

13

Husqvarna 603001447

Spring, Valve..

$

$

Not available

14

Husqvarna 603001448

Retainer, Spring.

$

$

Not available

15

Husqvarna 603001449

Seal, Valve Stem.

$

$

Not available

16

Husqvarna 603001452

Valve, Exhaust

$

$

Not available

17

Husqvarna 603001453

Valve, Inlet.

$

$

Not available

18

Husqvarna 603001441

Bracket, Rocker Arm, D722 Closed-Breather

$

$

Not available

19

Husqvarna 603001439

Bolt, Rocker Arm

$

$

Not available
