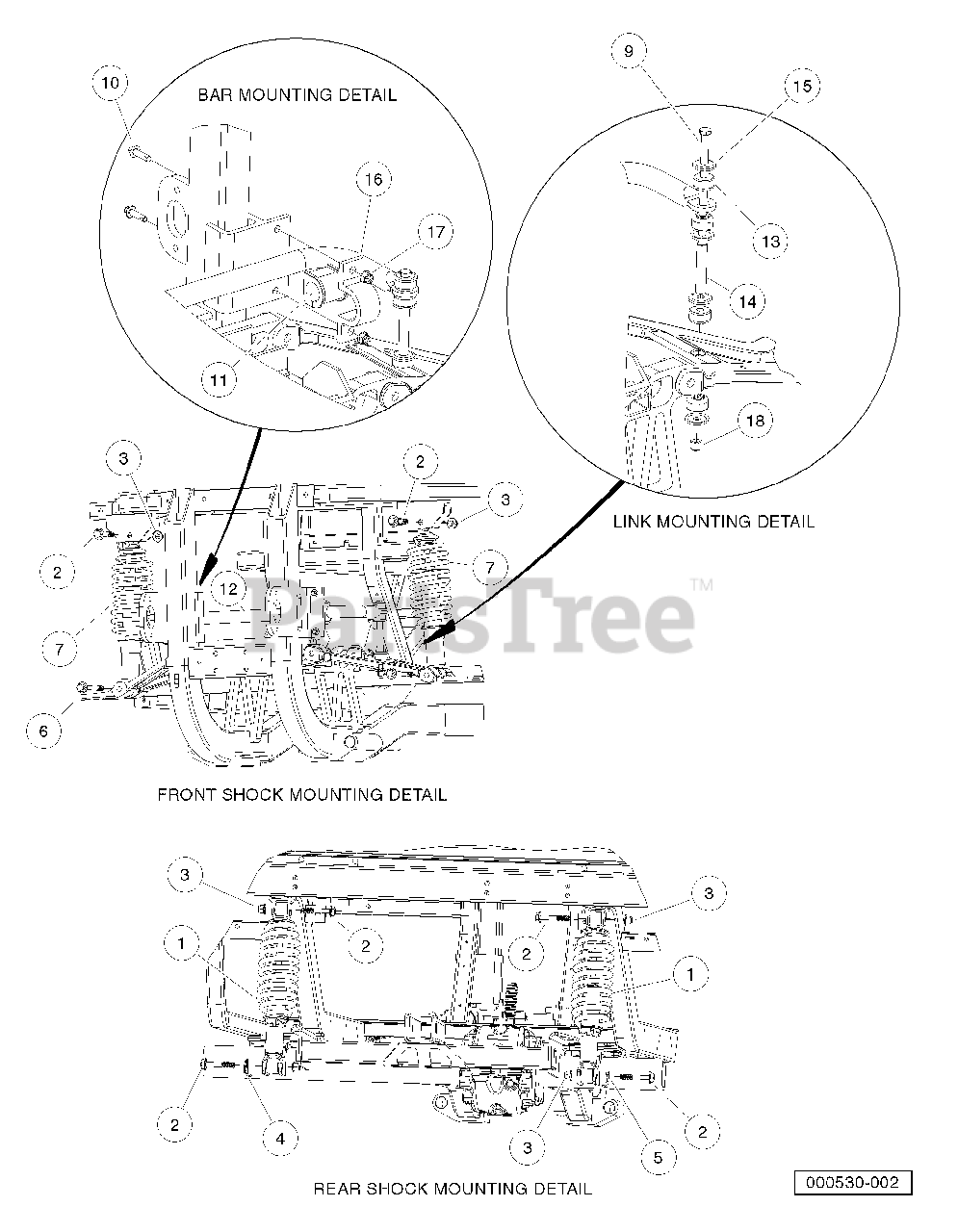

HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2007-01) Shock Absorbers - High Capacity Parts Diagram

4x4 Utility Vehicle, Diesel

Shock Absorbers - High Capacity Parts Diagram

  • Title

1

Husqvarna 603000895

Shock, Coil Over, Rear HD

$

$

Not available

2

Husqvarna 603001292

Bolt, Flange Head, M12 X 1.75 X 70

$

$

Not available

3

Husqvarna 603001312

Nut Flg, M12x1.75, Nylon Gr 10

$

$

Not available

4

Husqvarna 603001606

Brkt, Line, Hyd, Shk Mnt, Drv

$

$

Not available

5

Husqvarna 603001607

Brkt, Line, Hyd, Shk Mnt, Pass

$11.99

$

In Stock, only 1 left!

0

6

Husqvarna 603003547

Bolt Flg, M12x1.75x100, Patch

$

$

Not available

7

Husqvarna 603003548

Asm, Coil & Shock, Frt

$

$

Not available

8

Instl, Bar, Antisway, Wide Frt

Note: (includes items 9 through 18)

$

$

Not available

9

Husqvarna 603000281

Screw, 3/8-16 X 7.00 Hex Cap

$

$

Not available

10

Husqvarna 603000875

Bolt, Flange Head, M8 X 30.0

$

$

Not available

11

Husqvarna 603001062

Bushing, Anti-Sway Bar, 1-1/8

$

$

Not available

12

Husqvarna 603001126

Bar, Sway, Formed

$

$

Not available

13

Husqvarna 603001132

Bushing, Link

$

$

Not available

14

Husqvarna 603001133

Sleeve, Link

$

$

Not available

15

Husqvarna 603001134

Washer, Cup, Bushing

$

$

Not available

16

Husqvarna 603001188

Bracket, Anti-Sway Bar

$

$

Not available

17

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

18

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
