HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2007-01) Cooling System Clamps, Hoses, and Hardware Parts Diagram

4x4 Utility Vehicle, Diesel

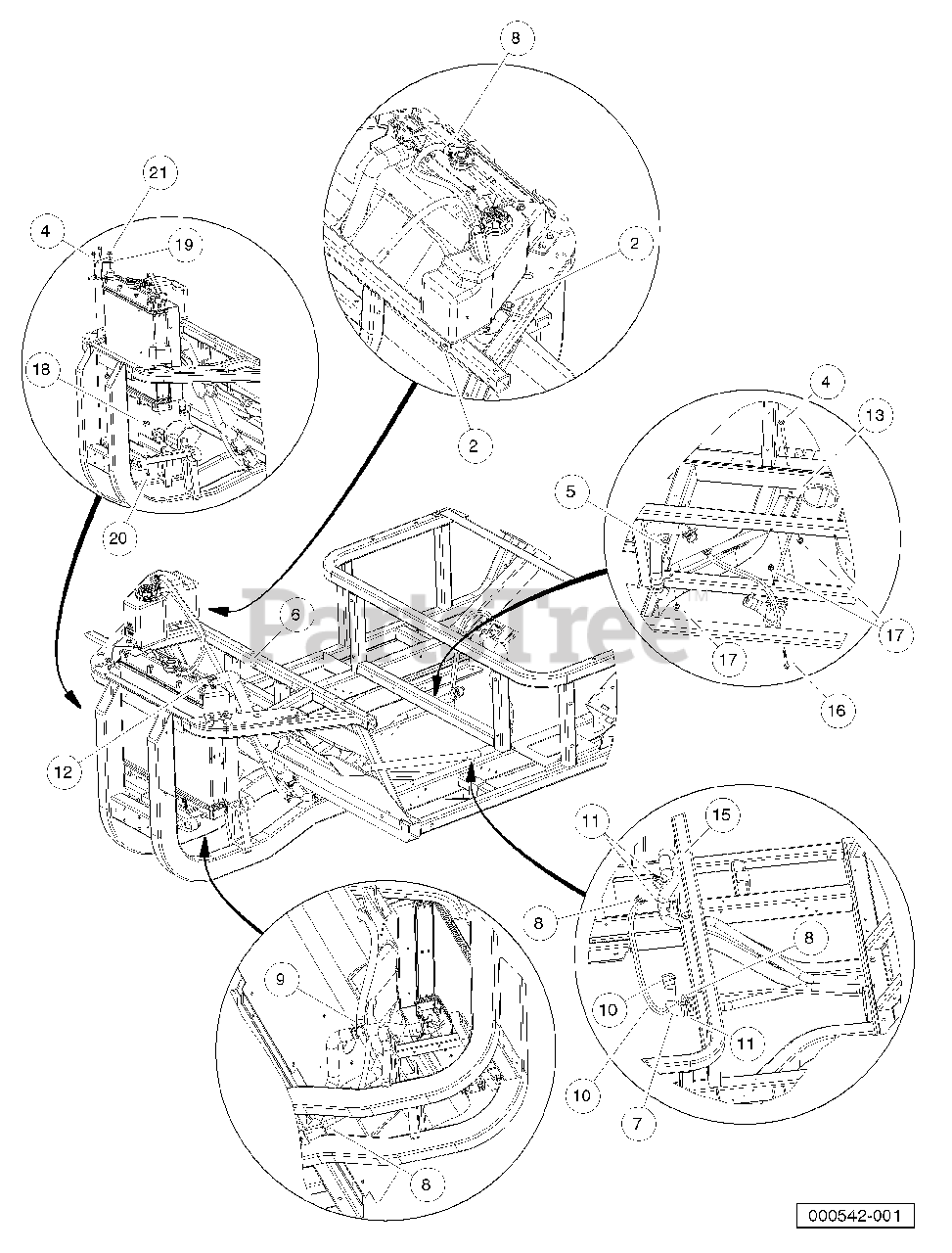

Cooling System Clamps, Hoses, and Hardware Parts Diagram

  • Title

1

Instl, Cooling Sys, Diesel

Note: (includes items 2 through 21)

$

$

Not available

2

Husqvarna 603000220

Screw, 5/16-18 X 0.75 Thread-Forming

$

$

Not available

3

Husqvarna 603003584

Bolt-hex Fl, M8 X 1.25 X 135

$

$

Not available

4

Husqvarna 603000869

Screw, M8X1.25X30, Hex

$

$

Not available

5

Husqvarna 603003585

M8-1.25 X 80 Sems

$

$

Not available

6

Husqvarna 603000927

Hose, Coolant Upper Rad

$

$

Not available

7

Husqvarna 603000928

Hose, Coolant Lower Eng

$

$

Not available

8

Husqvarna 603000970

Clamp, Hose, CTB 15mm

$

$

Not available

9

Husqvarna 603000971

Clamp, Hose, CTB 22mm

$

$

Not available

10

Husqvarna 603000972

Clamp, Hose, Ctb 30mm

$

$

Not available

11

Husqvarna 603000973

Clamp, Hose, Ctb 35mm

$

$

Not available

12

Husqvarna 603000974

Clamp, Hose, Ctb 38mm

$

$

Not available

13

Husqvarna 603001003

Clamp, Bar

$

$

Not available

14

Husqvarna 603001016

Hose, Vent Tube To Eng, Coolnt

$

$

Not available

15

Husqvarna 603001155

Hose, Coolant, Return, Engine

$

$

Not available

16

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

17

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

18

Husqvarna 603003586

Bumper, 19mm Stud

$

$

Not available

19

Husqvarna 603003587

Bracket, Radiator Support

$

$

Not available

20

Husqvarna 603003588

Nut Flg, M6 X 1 Serrated

$

$

Not available

21

Husqvarna 603000512

Nut Flg, M8 X 1.25 Serrated

$

$

Not available
