HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Transmission Diesel Vehicles (Part B) Parts Diagram

4x4 Utility Vehicle, Diesel

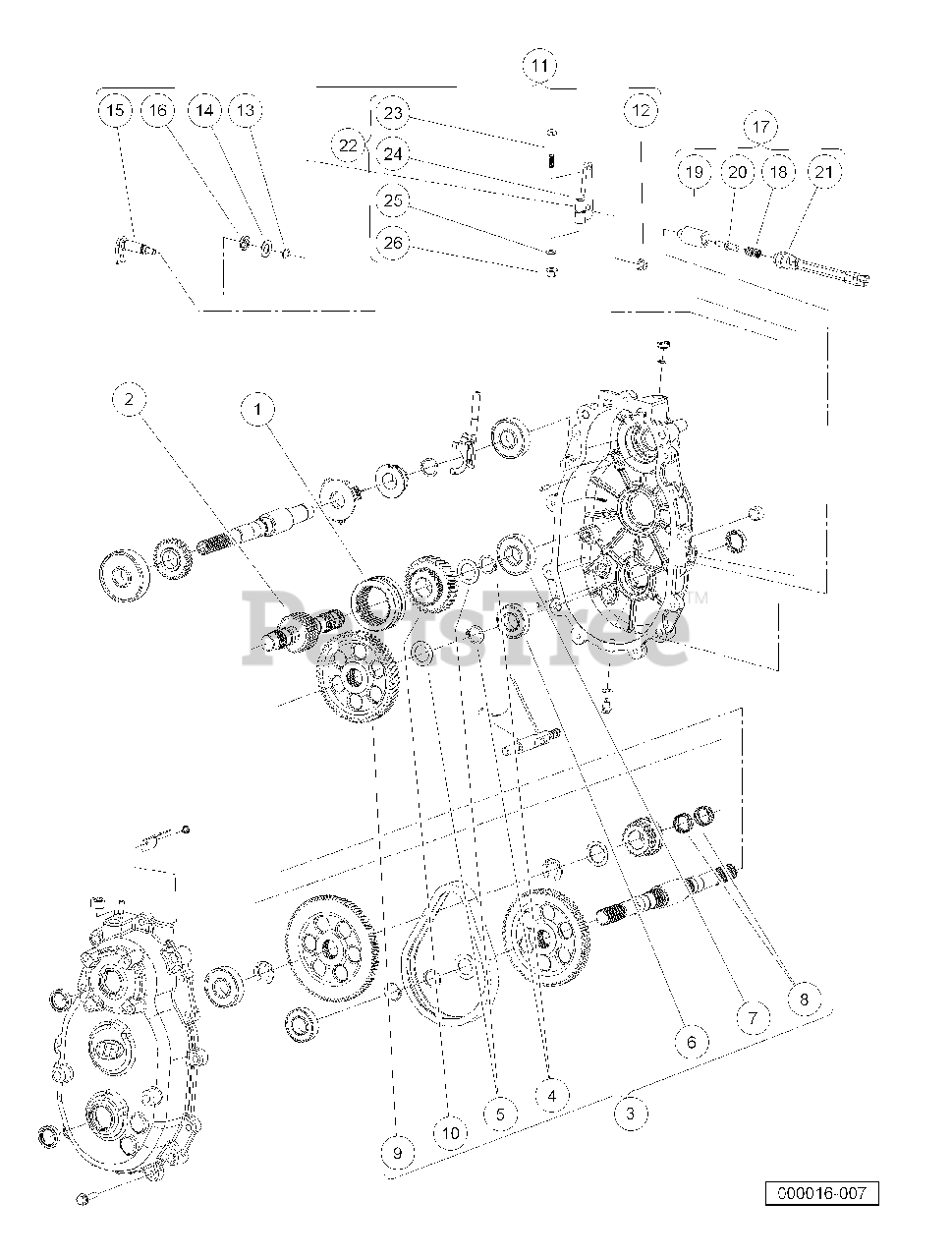

Transmission Diesel Vehicles (Part B) Parts Diagram

  • Title

1

Husqvarna 603002826

Dog, Engagement

$

$

Not available

2

Husqvarna 603002836

Shaft, Intermediate

$

$

Not available

3

Husqvarna 603001784

Kit, Forward Gear Repair

Note: (includes items 4 through 10)

$

$

Not available

4

Husqvarna 603001642

Ring, Retaining, Basic External

$

$

Not available

5

Husqvarna 603001645

Washer, Thrust, 1.007 X .062

$

$

Not available

6

Husqvarna 603001648

Bearing, Ball

$

$

Not available

7

Husqvarna 603001649

Bearing, Ball

$

$

Not available

8

Husqvarna 603001651

Bearing, Needle

$

$

Not available

9

Gear, Helical 58-Tooth

$

$

Not available

10

Gear, Helical 34-Tooth

$

$

Not available

11

Husqvarna 603001785

Kit, Trans Shift Shaft Repair

Note: (includes items 12 through 16)

$

$

Not available

12

Husqvarna 603001640

Nut, Lock Hex, Nylon, 5/16-24

$

$

Not available

13

Husqvarna 603001644

Ring, Retaining, External 9/16

$

$

Not available

14

Husqvarna 603001646

Washer, Flat, .58 X 1.08 X .05

$

$

Not available

15

Weldment, Shift, Shaft

$

$

Not available

16

Seal, Dul Lip, .88 X .56 X .19

$

$

Not available

17

Husqvarna 603001786

Kit, Neutral Switch Repair

Note: (includes items 18 through 21)

$

$

Not available

18

Spring, .484 X .340 X 1.076

$

$

Not available

19

Guide, Detent Bullet

$

$

Not available

20

Bullet, Detent

$

$

Not available

21

Switch, Indicator, Pollak

$

$

Not available

22

Husqvarna 531309570

Kit, Bellcrank, D Shape, Clamp

Note: (includes items 23 through 26)

$

$

Not available

23

Husqvarna 603003035

Bolt, 3/8-16 X 2.00 Hex Head

$

$

Not available

24

Husqvarna 603004507

Asm, Bellcrank, D Shape, Clamp
(Superseded to 531309570)

$

$

Not available

25

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

26

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
