HUV 4421 DXP - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Fuel Tank Diesel Vehicles Parts Diagram

4x4 Utility Vehicle, Diesel

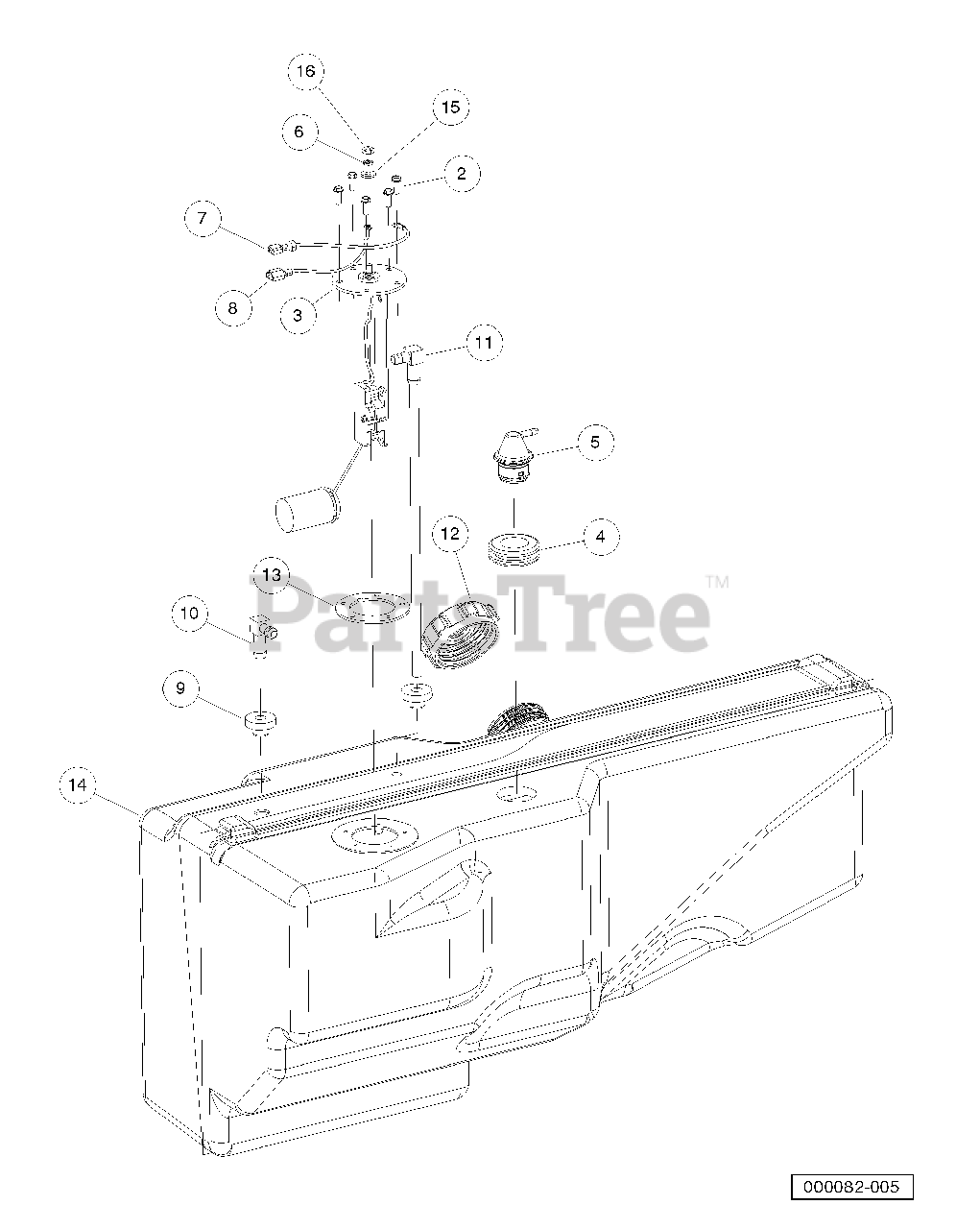

Fuel Tank Diesel Vehicles Parts Diagram

  • Title
1

Husqvarna 603000949

Asm, Tank, Fuel, Diesel, 4x4
(Superseded to 581766901)

Note: (includes items 2 through 16)

$

$

Not available

2

Husqvarna 603000173

Screw, #10-16 Hex-Head Hi-Lo

$

$

Not available

3

Sending Unit, Fuel Level

$

$

Not available

4

Husqvarna 603000241

Insulation Grommet

$

$

Not available

5

Husqvarna 603000242

Vent, Fuel Tank
(Superseded to 589258901)

$

$

Not available

6

Husqvarna 603000061

Washer, #10 Split Lock

$

$

Not available

7

Wire Asm, Blk, 170mm

$

$

Not available

8

Wire Asm, Org, 170mm

$

$

Not available

9

Husqvarna 603000951

Bushing, Line, Return

$

$

Not available

10

Husqvarna 603000952

Elbow, 90 Barbed

$

$

Not available

11

Husqvarna 603001152

Pickup Tube, Fuel

$

$

Not available

12

Husqvarna 603001187

Cap, Fuel

Note: (Diesel)

$

$

Not available

13

Husqvarna 603003057

Gasket, Rubber

$

$

Not available

14

Tank, Fuel, Diesel, 4x4

$

$

Not available

15

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

16

Husqvarna 603000097

Nut, #10-32 Brass Hex

$

$

Not available
