HUV 4421 DXL - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Main Bearing Case Parts Diagram

4x4 Utility Vehicle, Diesel

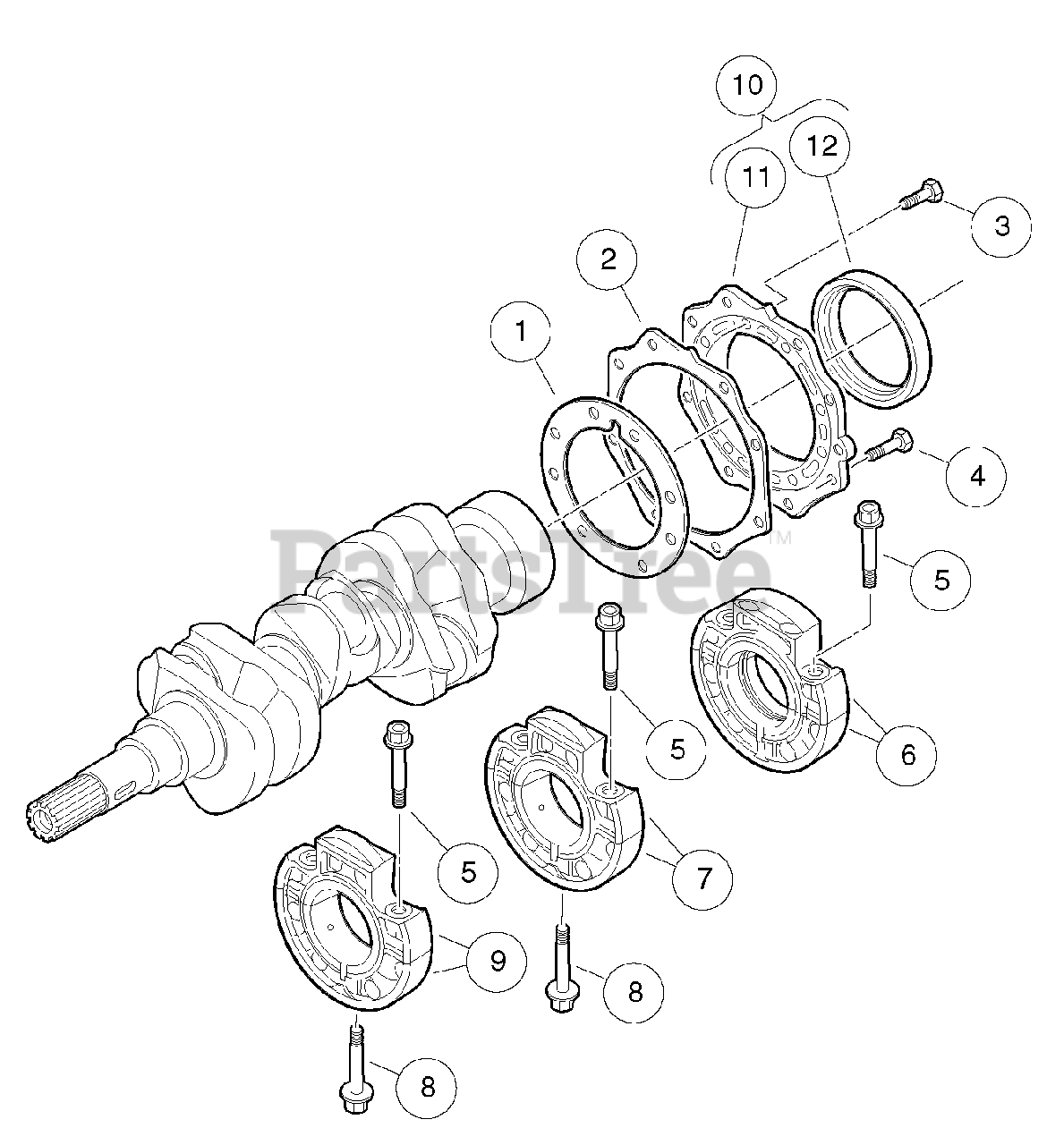

Main Bearing Case Parts Diagram

  • Title
1

Husqvarna 102608201

Gasket, Bearing Case

$

$

Currently unavailable

2

Husqvarna 102608301

Gasket, Cover

$

$

Currently unavailable

3

Husqvarna 102608601

Bolt, M6 X 1 X 20

$

$

Currently unavailable

4

Husqvarna 102608701

Bolt, M6 X 1 X 22

$

$

Currently unavailable

5

Husqvarna 102608901

Bolt, Bearing Case, Top

$

$

Currently unavailable

6

Husqvarna 102609101

Assy Case, Main Brg, First

$

$

Currently unavailable

7

Husqvarna 102609301

Assy Case, Main Brg, Sec

$

$

Currently unavailable

8

Husqvarna 102609401

Bolt, Bearing Case, Bottom

$

$

Currently unavailable

9

Husqvarna 102609601

Assy Case, Main Brg, Third

$

$

Currently unavailable

10

Husqvarna 102728001

Assy, Cover, Bearing Case

Note: (includes items 11 and 12)

$

$

Currently unavailable

11

Husqvarna 102608401

Cover, Bearing Case

$

$

Currently unavailable

12

$

$

Currently unavailable
