HUV 4421 DXL - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Floor Board Parts Diagram

4x4 Utility Vehicle, Diesel

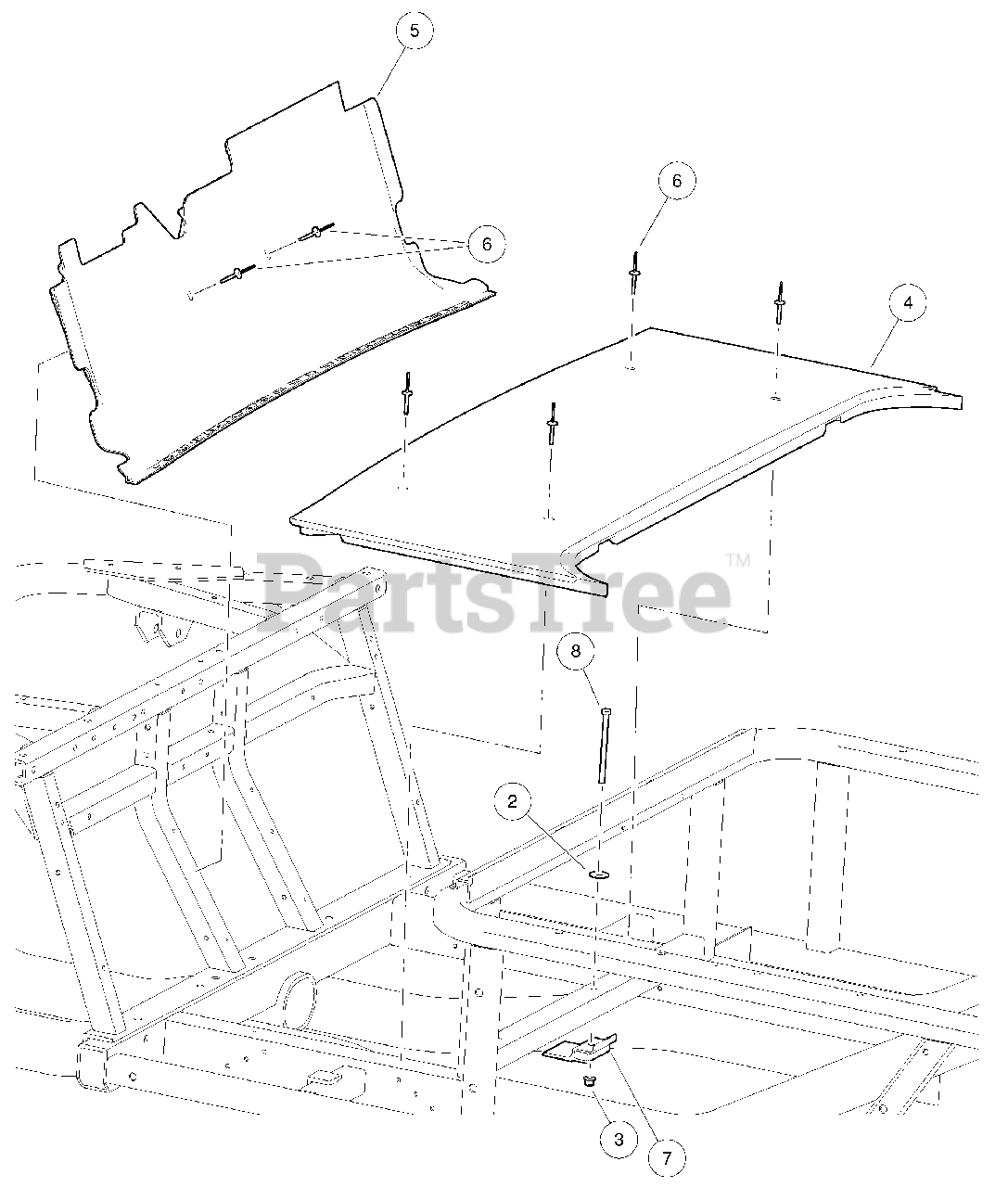

Floor Board Parts Diagram

  • Title
1

Husqvarna 102868501

Instl, Floorboard

Note: (includes items 2 through 8)

$

$

Currently unavailable

2

Husqvarna 1011578

Washer, 5/16 Type B Flat

$

$

Currently unavailable

3

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

4

Husqvarna 103319601

Floorboard, Lower

$

$

Currently unavailable

5

Husqvarna 103319701

Floorboard, Upper

$

$

Currently unavailable

6

Husqvarna 103400001

3/16 X 1.19 Alum Rivet, Blk

$

$

Currently unavailable

7

Husqvarna 103417401

Bracket, Support, Floorboard

$

$

Currently unavailable

8

Husqvarna 103423701

Bolt, M8 X 1.25 X 110

$

$

Currently unavailable
