HUV 4421 DXL - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Cylinder Head And Crankcase Parts Diagram

4x4 Utility Vehicle, Diesel

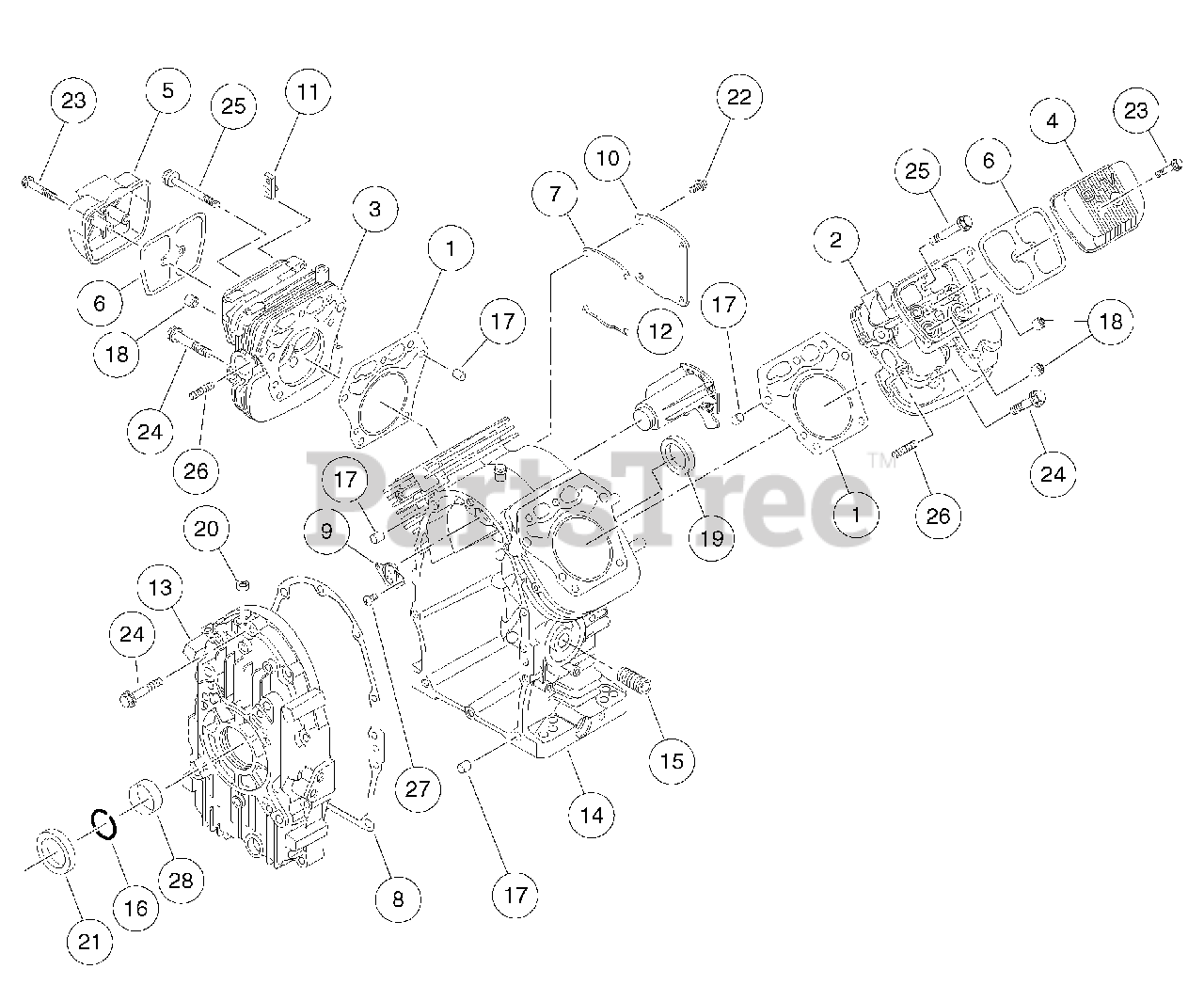

Cylinder Head And Crankcase Parts Diagram

  • Title
1

Husqvarna 102990101

Gasket, Head, Cyl, Fh

$

$

Currently unavailable

2

Husqvarna 102990201

Head, Cyld 1, Fh

$

$

Currently unavailable

3

Husqvarna 102990301

Head, Cyld 2, Fh

$

$

Currently unavailable

4

Husqvarna 102990401

Cover, Rocker, Cyld 1, Fh

$

$

Currently unavailable

5

Husqvarna 102990501

Cover, Rocker, Cyld 2, Fh

$

$

Currently unavailable

6

Husqvarna 102990601

Gasket, Rocker, Cover, FH

$

$

Currently unavailable

7

Husqvarna 102990701

Gasket, Breather, Fh

$

$

Currently unavailable

8

Husqvarna 102990801

Gasket, Cover, Crank, Fh

$

$

Currently unavailable

9

Husqvarna 102990901

Valve, Assy, Reed, Fh

$

$

Currently unavailable

10

Husqvarna 102991101

Cover, Crkcase, Comp, Fh

$

$

Currently unavailable

11

Husqvarna 102991201

Pipe, Head, Comp, Clyd, Fh

$

$

Currently unavailable

12

Husqvarna 102991301

Pipe, Crkcase, Comp, Fh

$

$

Currently unavailable

13

Husqvarna 102991401

Cover, Crankcase, Fh

$

$

Currently unavailable

14

Husqvarna 102991501

Crankcase, Comp, Fh

$

$

Currently unavailable

15

Husqvarna 102991601

Nipple, Oil Filter, Fh

$

$

Currently unavailable

16

Husqvarna 102991801

Ring, Snap, Fh

$

$

Currently unavailable

17

Husqvarna 102991901

Pin, Head, Fh

$

$

Currently unavailable

18

Husqvarna 102992001

Seal, Oil, Valve, Fh

$

$

Currently unavailable

19

Husqvarna 102992101

Seal, Oil, Crank, Rear, Fh

$

$

Currently unavailable

20

Husqvarna 102992201

Seal, Oil, Governor, Fh

$

$

Currently unavailable

21

Husqvarna 102992301

Seal, Oil, Crank, Front, Fh

$

$

Currently unavailable

22

Husqvarna 102992401

Bolt, Flg, M6 X 1.0 X 12

$

$

Currently unavailable

23

Husqvarna 102992601

Bolt, Flg, M6 X 1.0 X 40

$

$

Currently unavailable

24

Husqvarna 102992701

Bolt, Flg, M8 X 1.25 X 50

$

$

Currently unavailable

25

Husqvarna 102992801

Bolt, Flg, M8 X 1.25 X 75

$

$

Currently unavailable

26

Husqvarna 102992901

Stud, M8 X 1.25, Exhaust, Fh

$

$

Currently unavailable

27

Husqvarna 103298601

Screw, Pan, Governor, Fh

$

$

Currently unavailable

28

Husqvarna 103298901

Bushing, Main, Fh

$

$

Currently unavailable
