HUV 4421 DXL - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Carburetor Assembly, Kawasaki Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle, Diesel

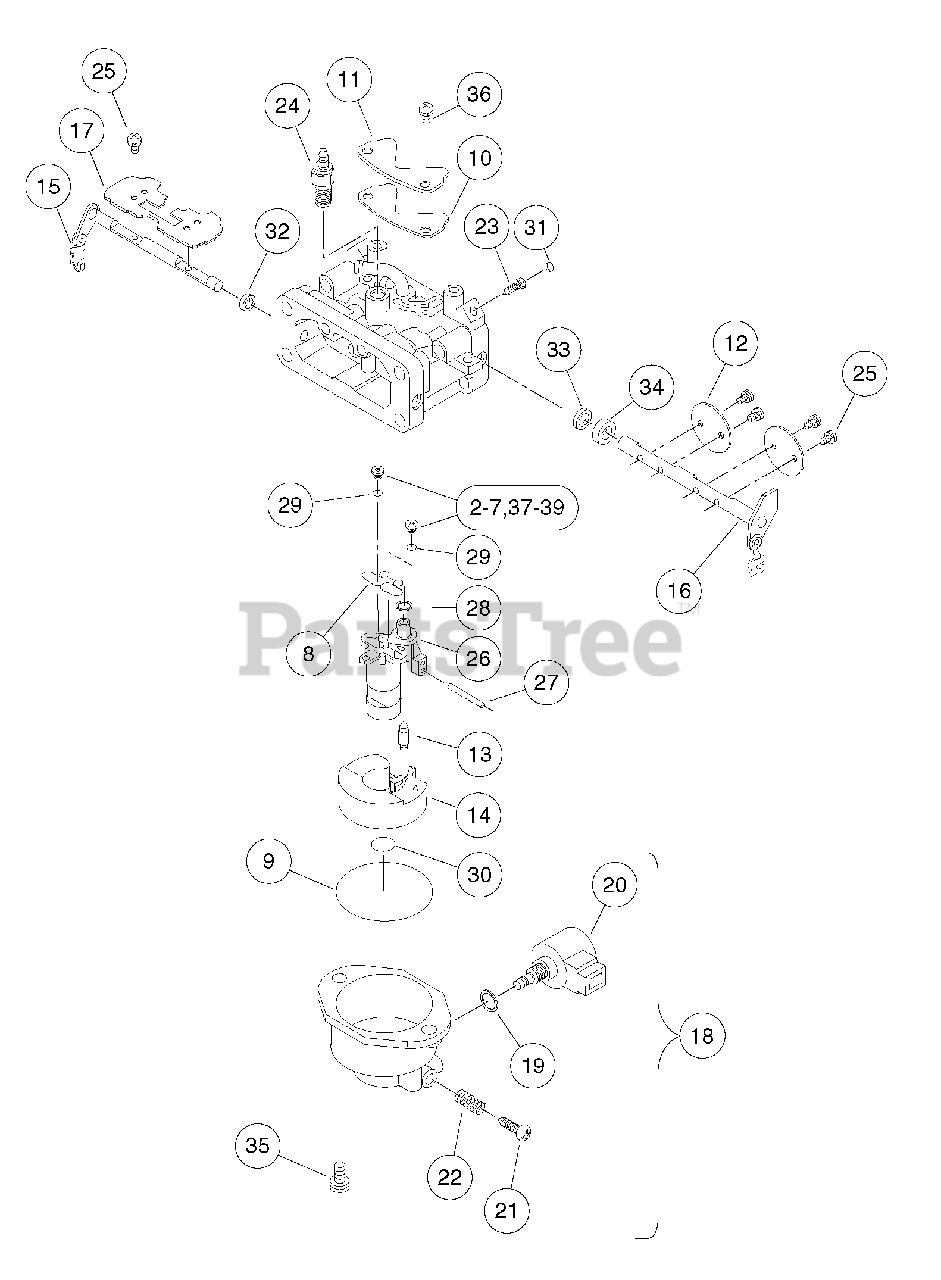

Carburetor Assembly, Kawasaki Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 103596801

Asm, Carburetor, FH680D

Note: (includes items 2 through 37)

$

$

Currently unavailable

2

Husqvarna 103307201

Kit, Jet, 6600 Ft +, Fh680d

Note: (includes items 3 and 4)

$

$

Currently unavailable

3

Husqvarna 103306801

Jet, Push In #96, FH680D (6600 ft and higher (2000 m and higher))

$

$

Currently unavailable

4

Husqvarna 103307101

Kit, Instructions Jet, Push In

$

$

Currently unavailable

5

Husqvarna 103307301

Kit, Jet, 3300-6600 Ft, Fh680d

Note: (includes items 6 and 7)

$

$

Currently unavailable

6

Husqvarna 103306901

Jet, Push In #99, FH680D (3300-6600 ft (1000-2000 m))

$

$

Currently unavailable

7

Husqvarna 103307101

Kit, Instructions Jet, Push In

$

$

Currently unavailable

8

Husqvarna 103340601

Gasket, Fh680d

$

$

Currently unavailable

9

Husqvarna 103340701

Gasket, Carburetor, Dia. 52

$

$

Currently unavailable

10

Husqvarna 103340801

Gasket, Cover, Fh680d

$

$

Currently unavailable

11

Husqvarna 103340901

Cover, Slow Passage, Fh680d

$

$

Currently unavailable

12

Husqvarna 103341101

Valve, Throttle, Fh680d

$

$

Currently unavailable

13

Husqvarna 103341201

Valve, Float, Fh680d

$

$

Currently unavailable

14

Husqvarna 103341301

Float, Carburetor, Fh680d

$

$

Currently unavailable

15

Husqvarna 103341401

Shaft, Carburetor, Fh680d

$

$

Currently unavailable

16

Husqvarna 103341501

Shaft, Carburetor, Throttle

$

$

Currently unavailable

17

Husqvarna 103341601

Valve, Carburetor, Fh680d

$

$

Currently unavailable

18

Husqvarna 103341701

Asm, Chamber, Float, Fh680d

Note: (includes items 19 through 22)

$

$

Currently unavailable

19

Husqvarna 103340501

Gasket, Carburetor, Fh680d

$

$

Currently unavailable

20

Husqvarna 103341901

Solenoid, Carburetor, Fh680d

$

$

Currently unavailable

21

Husqvarna 103342201

Screw, Drain, Carburetor

$

$

Currently unavailable

22

Husqvarna 103343601

Spring, Carburetor, Fh680d

$

$

Currently unavailable

23

Husqvarna 103341801

Needle, Jet, Fh680d

$

$

Currently unavailable

24

Husqvarna 103342001

Heater, Carburetor, Fh680d

$

$

Currently unavailable

25

Husqvarna 103342101

Screw, Carburetor, M3 X 6

$

$

Currently unavailable

26

Husqvarna 103342301

Spacer, Carburetor, Fh680d

$

$

Currently unavailable

27

Husqvarna 103342401

Pin, Carburetor, Fh680d

$

$

Currently unavailable

28

Husqvarna 103342501

O-ring, Carburetor, Dia. 6.5

$

$

Currently unavailable

29

Husqvarna 103342601

O-ring, Carburetor, Fh680d

$

$

Currently unavailable

30

Husqvarna 103342701

O-ring, Carburetor, Dia. 9

$

$

Currently unavailable

31

Husqvarna 103343301

Plug, Expansion, Carburetor

$

$

Currently unavailable

32

Husqvarna 103343401

Seal, Carburetor, Dia. 5.9

$

$

Currently unavailable

33

Husqvarna 103343501

Seal, Carburetor, Fh680d

$

$

Currently unavailable

34

Husqvarna 103343701

Collar, Carburetor, Fh680d

$

$

Currently unavailable

35

Husqvarna 103343801

Screw, Carburetor, M5

$

$

Currently unavailable

36

Husqvarna 103343901

Screw, Carburetor, M4

$

$

Currently unavailable

37

Husqvarna 103596701

Kit, Jet, 0-3300 ft. FH680D

Note: (includes items 38 and 39)

$

$

Currently unavailable

38

Husqvarna 103307001

Jet, Push In #102, FH680D (0-3300 ft (0-1000 m))

$

$

Currently unavailable

39

Husqvarna 103596601

Jet, FH680D

$

$

Currently unavailable
