HUV 4421 DXL - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Battery-Diesel Vehicles Parts Diagram

4x4 Utility Vehicle, Diesel

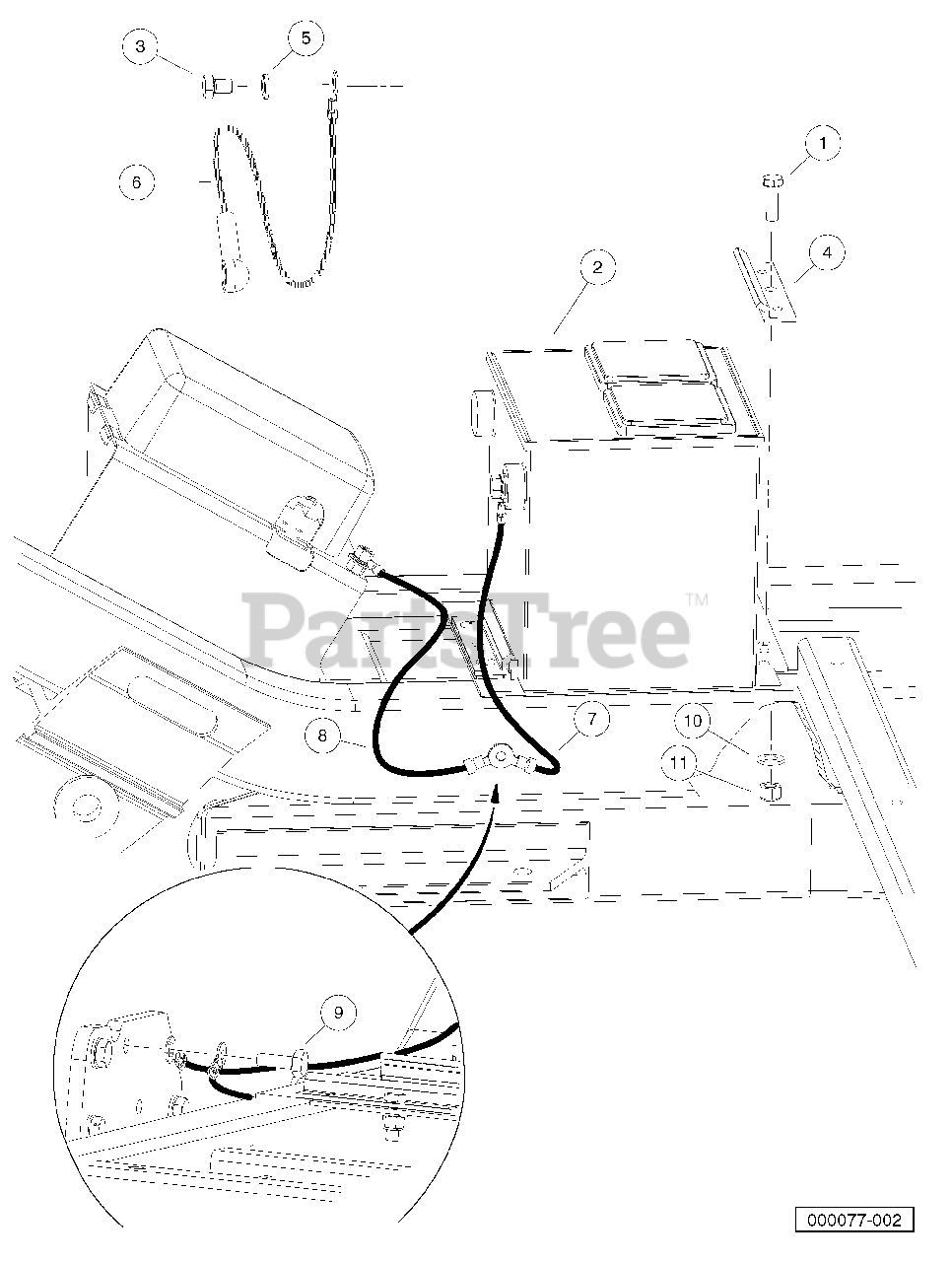

Battery-Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 1010934

Screw, 5/16-18 X 1.00 Hex Cap

$

$

Currently unavailable

2

Husqvarna 1012328

Battery, 12-Volt

$

$

Currently unavailable

3

Husqvarna 1014375

Screw, 3/8-16 X 0.50 Stainless Steel Hex-Head

$

$

Currently unavailable

4

Husqvarna 101898001

Clamp, Battery

$

$

Currently unavailable

5

Husqvarna 102355301

Lockwasher, 3/8 Stainless Stl

$

$

Currently unavailable

6

Husqvarna 102442201

Asm, #6 Red Wire

$

$

Currently unavailable

7

Husqvarna 102448401

Wire Asm, #6 Blk, Awd, 350

$

$

Currently unavailable

8

Husqvarna 102448501

Wire Asm, #6 Blk, Awd, 325

$

$

Currently unavailable

9

Husqvarna 102498201

Bolt, M10 X 1.25 X 25 Loctite

$

$

Currently unavailable

10

Husqvarna 1241

Washer, 5/16 Type A Flat

$

$

Currently unavailable

11

Husqvarna 7473

Locknut, 5/16-18 Nylon Insert

$

$

Currently unavailable
