HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Piston And Crankshaft Parts Diagram

4x4 Utility Vehicle, Diesel

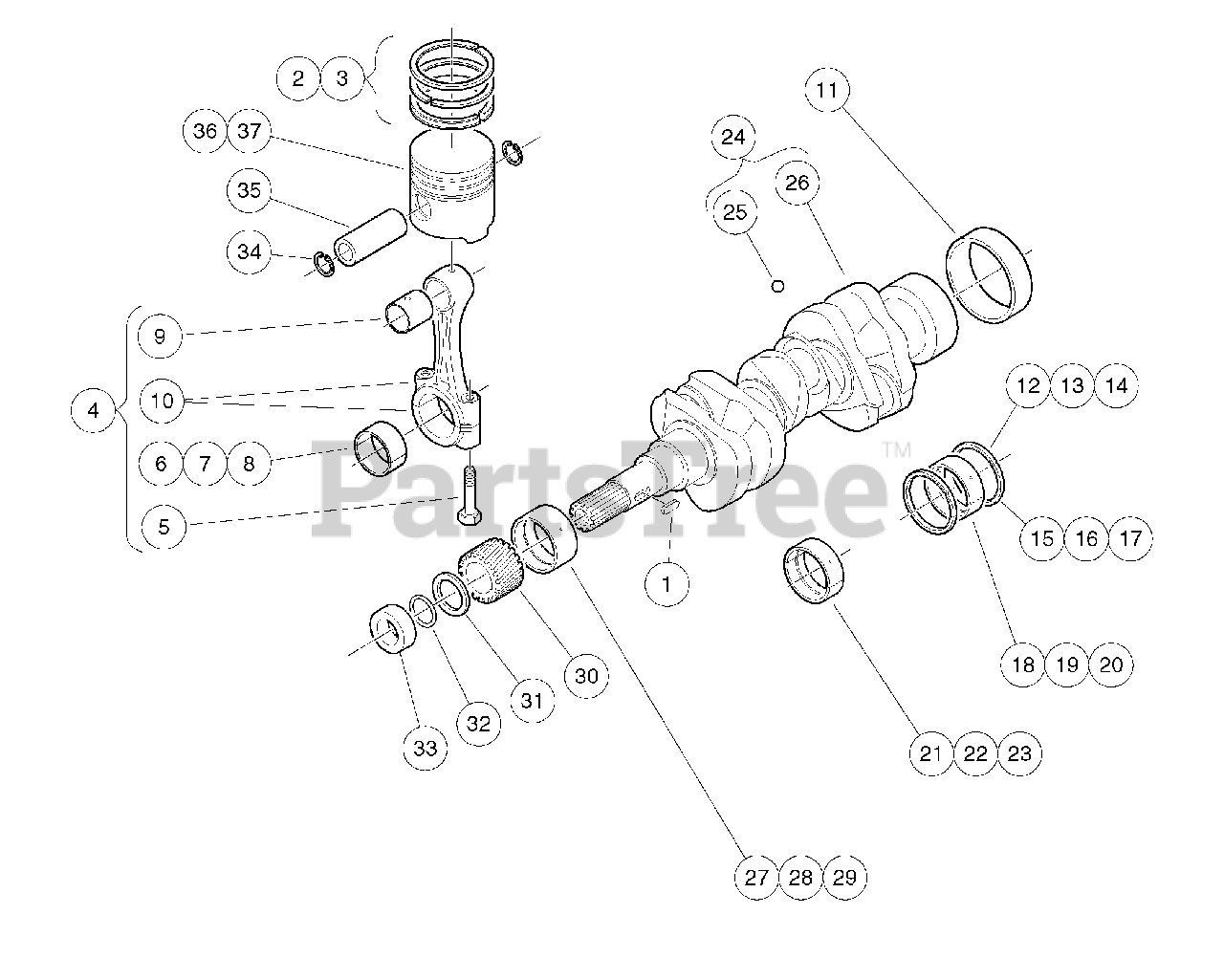

Piston And Crankshaft Parts Diagram

  • Title

1

Husqvarna 102604401

Key, Feather, Short Camshaft

$

$

Currently unavailable

2

Husqvarna 102607601

Assy Piston Ring, D722 Std

$

$

Currently unavailable

3

Husqvarna 102607602

Assy Piston Ring, D722 +.025

$

$

Currently unavailable

4

Husqvarna 102607801

Assy, Connecting Rod

Note: (includes items 5 through 10)

$

$

Currently unavailable

5

Husqvarna 102607901

Bolt, Connecting Rod

$

$

Currently unavailable

6

Husqvarna 102630701

Metal, Crank, Rod, D722, Std

$

$

Currently unavailable

7

Husqvarna 102630702

Metal, Crank, Rod, D722, .020

$

$

Currently unavailable

8

Husqvarna 102630703

Metal, Crank, Rod, D722, .040

$

$

Currently unavailable

9

Husqvarna 102732201

Bushing, Piston Pin, D722

$

$

Currently unavailable

10

Husqvarna N/A

Rod, Connecting

$

$

Not available

11

Husqvarna 102608101

Sleeve, Crankshaft

$

$

Currently unavailable

12

Husqvarna 102608801

Metal,crank, O Side, Std

$

$

Currently unavailable

13

Husqvarna 102608802

Metal,crank, O Side, +.020

$

$

Currently unavailable

14

Husqvarna 102608803

Metal,crank, O Side, +.040

$

$

Currently unavailable

15

Husqvarna 102608804

Metal,crank, I Side, Std

$

$

Currently unavailable

16

Husqvarna 102608805

Metal,crank, I Side, +.020

$

$

Currently unavailable

17

Husqvarna 102608806

Metal,crank, I Side, +.040

$

$

Currently unavailable

18

Husqvarna 102609001

Metal, Crank, Main, Rear Std

$

$

Currently unavailable

19

Husqvarna 102609002

Metal, Crank, Main, Rear -.020

$

$

Currently unavailable

20

Husqvarna 102609003

Metal, Crank, Main, Rear -.040

$

$

Currently unavailable

21

Husqvarna 102609801

Metal, Crank, Main, Mid Std

$

$

Currently unavailable

22

Husqvarna 102609802

Metal, Crank, Main, Mid +.020

$

$

Currently unavailable

23

Husqvarna 102609803

Metal, Crank, Main, Mid +.040

$

$

Currently unavailable

24

Husqvarna 102610001

Crankshaft

Note: (includes items 25 and 26)

$

$

Currently unavailable

25

Husqvarna 102608001

Ball, Crankshaft

$

$

Currently unavailable

26

Husqvarna N/A

Crankshaft

$

$

Not available

27

Husqvarna 102630001

Metal, Crank, D722, Frnt, Std

$

$

Currently unavailable

28

Husqvarna 102630002

Metal, Crank, 722, Frnt, -.020

$

$

Currently unavailable

29

Husqvarna 102630003

Metal, Crank, 722, Frnt, -.040

$

$

Currently unavailable

30

Husqvarna 102630101

Gear, Crank

$

$

Currently unavailable

31

Husqvarna 102630201

Slinger, Oil

$

$

Currently unavailable

32

Husqvarna 102630301

O Ring, 23 X 26

$

$

Currently unavailable

33

Husqvarna 102630401

Collar, Crankshaft

$

$

Currently unavailable

34

Husqvarna 102630901

Circlip, Piston Pin

$

$

Currently unavailable

35

Husqvarna 102631001

Pin, Piston

$

$

Currently unavailable

36

Husqvarna 102728101

Piston, D722, Std

$

$

Currently unavailable

37

Husqvarna 102728102

Piston, D722, +0.25

$

$

Currently unavailable
