HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2009-01) Fuel Tank - Gasolilne Vehicles Parts Diagram

4x4 Utility Vehicle, Diesel

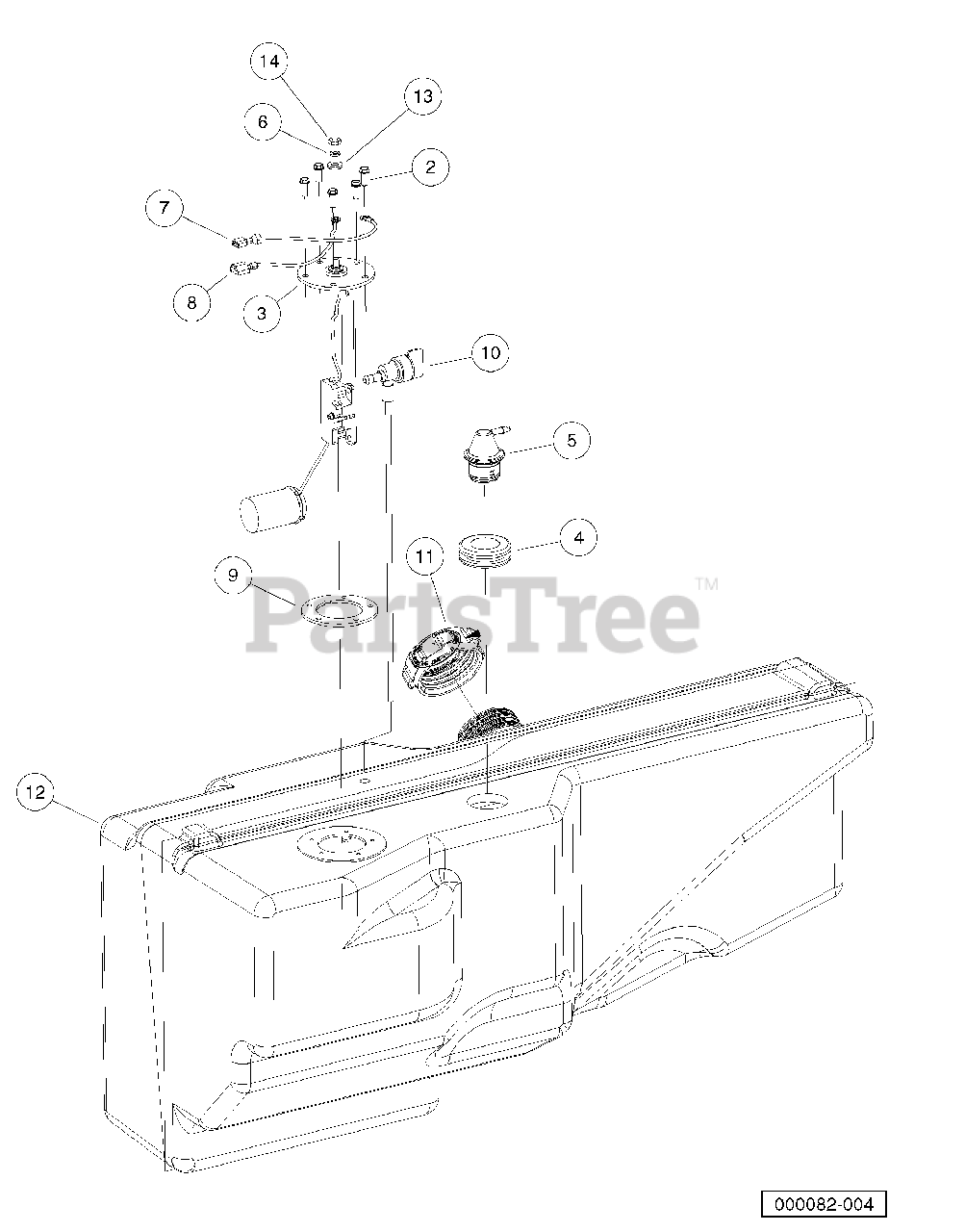

Fuel Tank - Gasolilne Vehicles Parts Diagram

  • Title
1

Husqvarna 102952102

Asm, Tank, Fuel, Gas, 4x4

Note: (includes items 2 through 14)

$

$

Currently unavailable

2

Husqvarna 1013461

Screw, #10-16 Hex-Head Hi-Lo

$

$

Currently unavailable

3

Sending Unit, Fuel Level

$

$

Not available

4

Husqvarna 1015139

Insulation Grommet

$

$

Currently unavailable

5

Husqvarna 1015143

Vent, Fuel Tank

$

$

Currently unavailable

6

Husqvarna 1016

Washer, #10 Split Lock

$

$

Currently unavailable

7

Husqvarna N/A

Wire Asm, Blk, 170mm

$

$

Not available

8

Husqvarna N/A

Wire Asm, Org, 170mm

$

$

Not available

9

Husqvarna 102522001

Gasket, Rubber

$

$

Currently unavailable

10

Husqvarna 102670901

Valve, Pickup Tube, Fuel

$

$

Currently unavailable

11

Husqvarna 102751601

Cap, Fuel Tank, Gasoline

$

$

Currently unavailable

12

Husqvarna N/A

Tank, Fuel, Gas, 4x4

$

$

Not available

13

Husqvarna 183

Washer, #10 Type A Flat

$

$

Currently unavailable

14

Husqvarna 8797

Nut, #10-32 Brass Hex

$

$

Currently unavailable
