HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-01) Rear Brake Assembly Parts Diagram

4x4 Utility Vehicle, Diesel

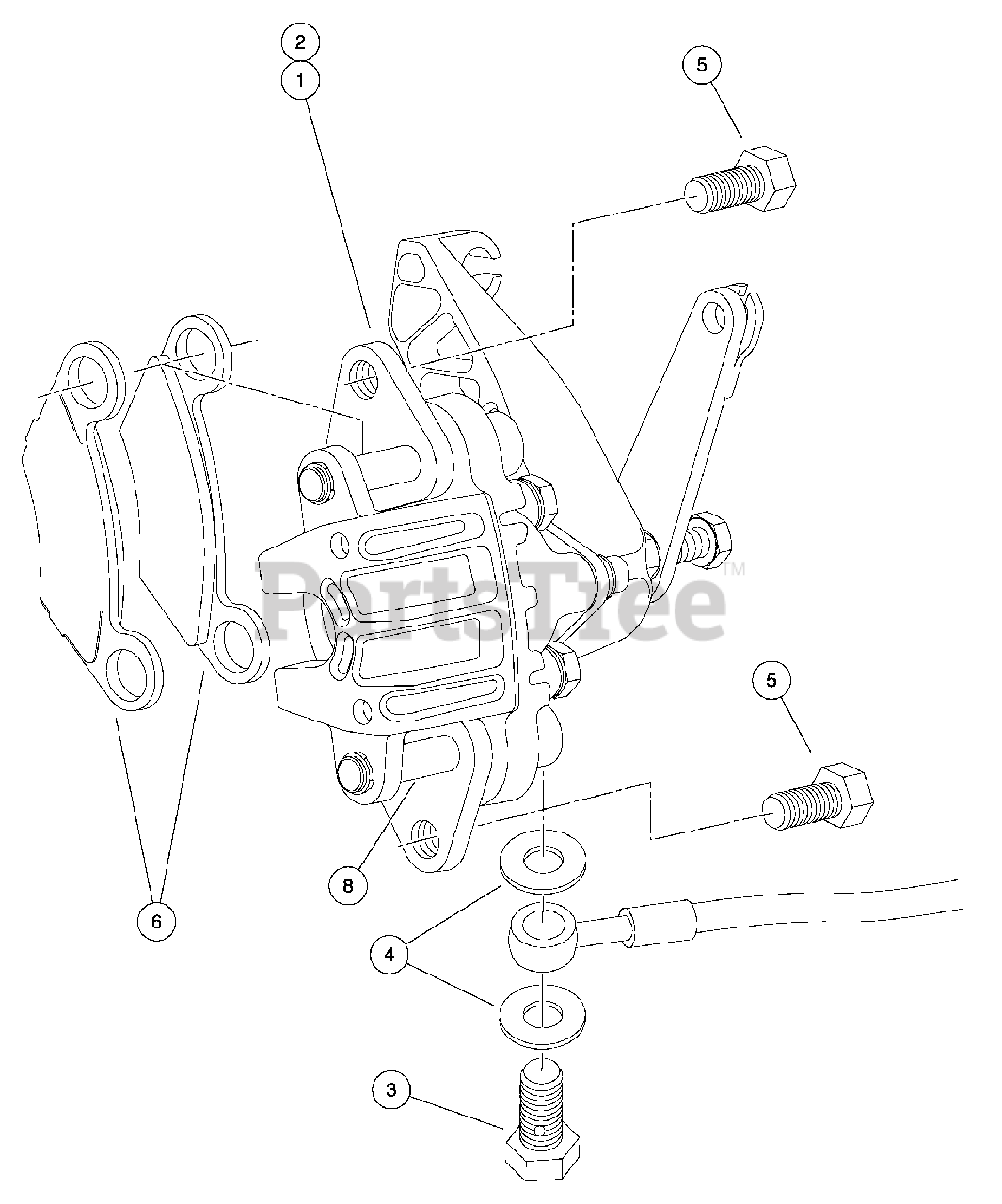

Rear Brake Assembly Parts Diagram

  • Title

1

Husqvarna 603000945

Caliper, Brake, Hydro-Mechanical, LH
(Superseded to 589260301)

$

$

Not available

2

Husqvarna 603000946

Caliper, Brake, Hydro-Mechanical, RH

$

$

Not available

3

Husqvarna 603001162

Bolt, Banjo, M10x1x19

$

$

Not available

4

Husqvarna 603001175

Washer, Copper, M10 Crush

$

$

Not available

5

Husqvarna 603001183

Bolt Flange Head, 3/8-24x.750 with Loctite

$

$

Not available

6

Husqvarna 603001670

Service Kit, Brake Pad

Note: (4 Pads)

$

$

Not available

7

Husqvarna 603004476

Spring, Brake Caliper Return

$

$

Not available

8

Husqvarna 603004475

Pin, Slide, 7/16

$

$

Not available
