HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-01) Fuel System - Kawaski Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle, Diesel

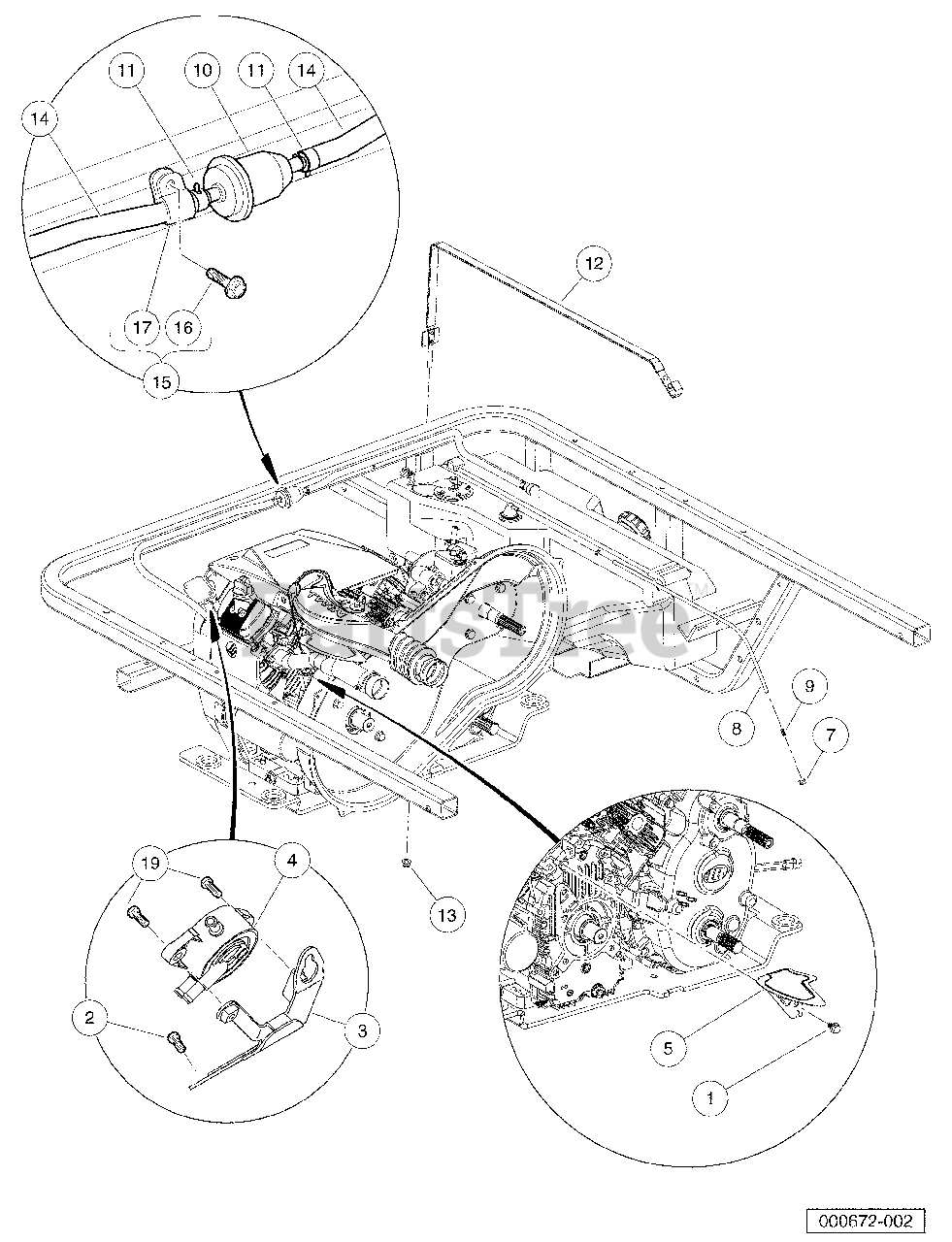

Fuel System - Kawaski Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603001315

Bolt Flanged Head, M8 X1.25x 16 with Loctite

$

$

Not available

2

Husqvarna 603003927

Bolt, Flg, M6 X 1.0 X 16.

$

$

Not available

3

Husqvarna 603004028

Bracket, Fuel Pump, Fh.

$

$

Not available

4

Husqvarna 603004029

Pump, Fuel, Impulse, Fh.

$

$

Not available

5

Husqvarna 603004070

Heat Shield, Header, Gas.

$

$

Not available

6

Instl, Fuel System, Fh680d

Note: (includes items 7 through 15)

$

$

Not available

7

Husqvarna 603000185

Clamp, 0.301 ID Hose.

$

$

Not available

8

Husqvarna 603000465

Hose, Fuel, Vent, 22" Long.

$

$

Not available

9

Husqvarna 603000503

Vent Barb.

$

$

Not available

10

Husqvarna 603000008

Filter, Fuel, 30 Micron.

$

$

Not available

11

Husqvarna 603000968

Clamp, Hose, Ctb 13mm.

$

$

Not available

12

Husqvarna 603001000

Strap, Tank, Fuel.

$

$

Not available

13

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

14

Husqvarna 531309542

Fuel Line.

$

$

Not available

15

Husqvarna 603004425

Kit, Fuel Line Clamp, 4x4 Khi

Note: (includes items 16 through 18)

$

$

Not available

16

Husqvarna 603000869

Screw, M8X1.25X30, Hex.

$

$

Not available

17

P-clamp, Insulated 0.625 In

$

$

Not available

18

Husqvarna 603004500

Instr, Kit Fuel Line 4x4 Khi

$

$

Currently unavailable

19

Husqvarna 603003820

Bolt, Flanged, M6 X 20, Kaw

$

$

Not available
