HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2007-01) Fuel System - Diesel Parts Diagram

4x4 Utility Vehicle, Diesel

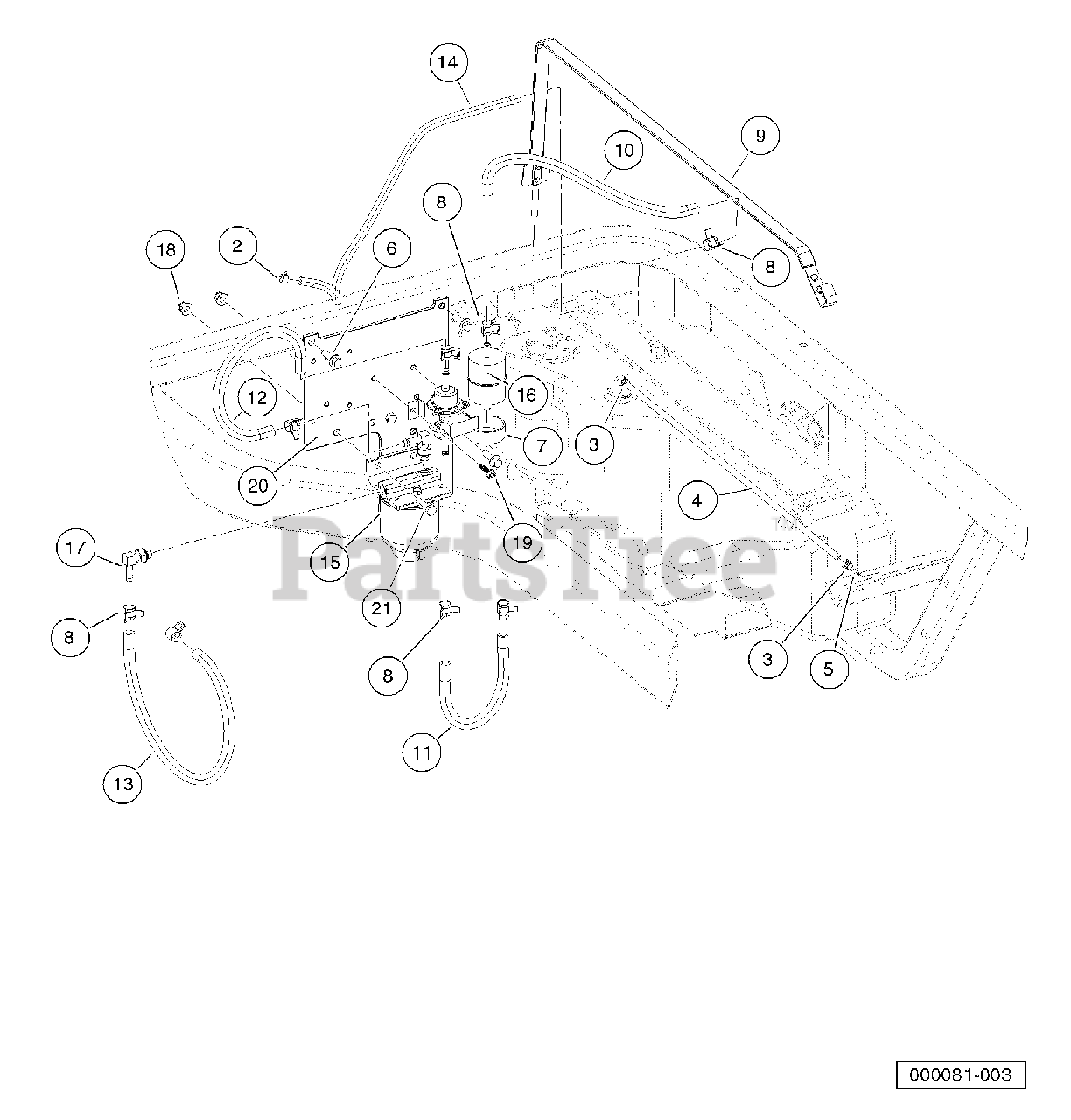

Fuel System - Diesel Parts Diagram

  • Title

1

Asm, Fuel System, Kubota

Note: (includes items 2 through 21)

$

$

Not available

2

Husqvarna 603000457

Clamp, Green Hose

$

$

Not available

3

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

4

Husqvarna 603000465

Hose, Fuel, Vent, 22" Long

$

$

Not available

5

Husqvarna 603000503

Vent Barb

$

$

Not available

6

Husqvarna 603000869

Screw, M8X1.25X30, Hex

$

$

Not available

7

Husqvarna 603000965

P-Clamp, Insulated 1.75 In

$

$

Not available

8

Husqvarna 603000969

Clamp, Hose, Ctb 14mm

$

$

Not available

9

Husqvarna 603001000

Strap, Tank, Fuel

$

$

Not available

10

Husqvarna 603001005

Hose, Tank To Prefilter Diesel

$

$

Not available

11

Husqvarna 603001006

Hose, Fuel Prefilter To Pump

$

$

Not available

12

Husqvarna 603001007

Hose, Fuel Pump To Filter

$

$

Not available

13

Husqvarna 603001008

Hose, Fuel Filter To Eng

$

$

Not available

14

Husqvarna 603001009

Hose, Fuel Return

$

$

Not available

15

Husqvarna 603001680

Filter Assy, Fuel

$

$

Not available

16

Husqvarna 603000042

Filter, Fuel

$

$

Not available

17

Husqvarna 603001015

Adapter, 90, 5/16 Tube

$

$

Not available

18

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

19

Husqvarna 603001587

Screw, M6 X 1 X 25 Thd Form

$

$

Not available

20

Husqvarna 603001667

Plate, Fuel/Oil System

$

$

Not available

21

Husqvarna 603000443

Bolt, M8 X 1.25 X 30

$

$

Not available
