HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2007-01) Cowl Assembly Parts Diagram

4x4 Utility Vehicle, Diesel

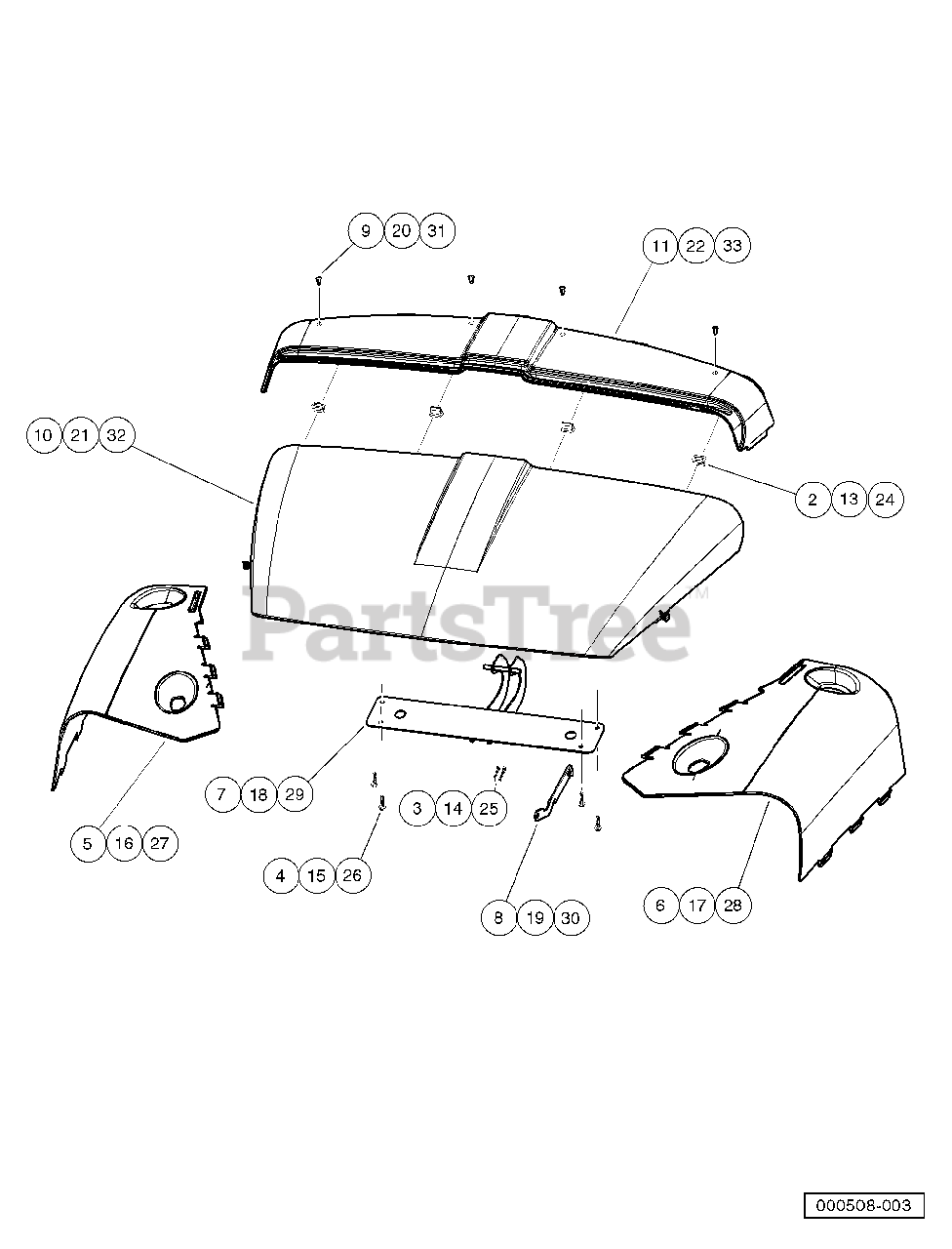

Cowl Assembly Parts Diagram

  • Title

1

Option, Color, Huv, Camo

Note: (includes items 2 through 11)

$

$

Not available

2

Husqvarna 603003422

Clip-body-trim

$

$

Not available

3

Husqvarna 603000872

Pin, Bow Tie Locking - .072

$

$

Not available

4

Husqvarna 603003443

Screw,m6,torx,interlock,thread

$

$

Not available

5

Husqvarna 603003406

Panel, Cowl, Passenger-Side, Camo

$

$

Not available

6

Husqvarna 603003407

Panel, Cowl, Driver-Side, Camo

$

$

Not available

7

Husqvarna 603003426

Weldment, Hinge, Hood

$

$

Not available

8

Husqvarna 603003427

Prop, Hood

$

$

Not available

9

Husqvarna 603000695

Rivet, Removable, Tuflok 1/4"

$

$

Not available

10

Husqvarna 603003410

Hood, Design B, Moff

$

$

Not available

11

Husqvarna 603003411

Panel, Cowl, Upper, B,moff

$

$

Not available

12

Option, Color, HUV, Orange

Note: (includes items 13 through 22)

$

$

Not available

13

Husqvarna 603003422

Clip-body-trim

$

$

Not available

14

Husqvarna 603000872

Pin, Bow Tie Locking - .072

$

$

Not available

15

Husqvarna 603003443

Screw,m6,torx,interlock,thread

$

$

Not available

16

Husqvarna 603003415

Panel, Cowl, Ps, Orange

$

$

Not available

17

Husqvarna 603003416

Panel, Cowl, Drv, Orange

$

$

Not available

18

Husqvarna 603003426

Weldment, Hinge, Hood

$

$

Not available

19

Husqvarna 603003427

Prop, Hood

$

$

Not available

20

Husqvarna 603000695

Rivet, Removable, Tuflok 1/4"

$

$

Not available

21

Husqvarna 603003419

Hood, Design B, Orange

$

$

Not available

22

Husqvarna 603003420

Panel, Cowl, Upper, B, Orange

$

$

Not available

23

Option, Color, Huv, Olive Grn

Note: (includes items 24 through 33)

$

$

Not available

24

Husqvarna 603003422

Clip-body-trim

$

$

Not available

25

Husqvarna 603000872

Pin, Bow Tie Locking - .072

$

$

Not available

26

Husqvarna 603003443

Screw,m6,torx,interlock,thread

$

$

Not available

27

Husqvarna 603003424

Panel, Cowl, Ps, Olive Green

$

$

Not available

28

Husqvarna 603003425

Panel, Cowl, Drv, Olive Green

$

$

Not available

29

Husqvarna 603003426

Weldment, Hinge, Hood

$

$

Not available

30

Husqvarna 603003427

Prop, Hood

$

$

Not available

31

Husqvarna 603000695

Rivet, Removable, Tuflok 1/4"

$

$

Not available

32

Husqvarna 603003428

Hood, Design B, Olive Grn

$

$

Not available

33

Husqvarna 603003429

Panel, Cowl, Upper, B, Olv Grn

$

$

Not available
